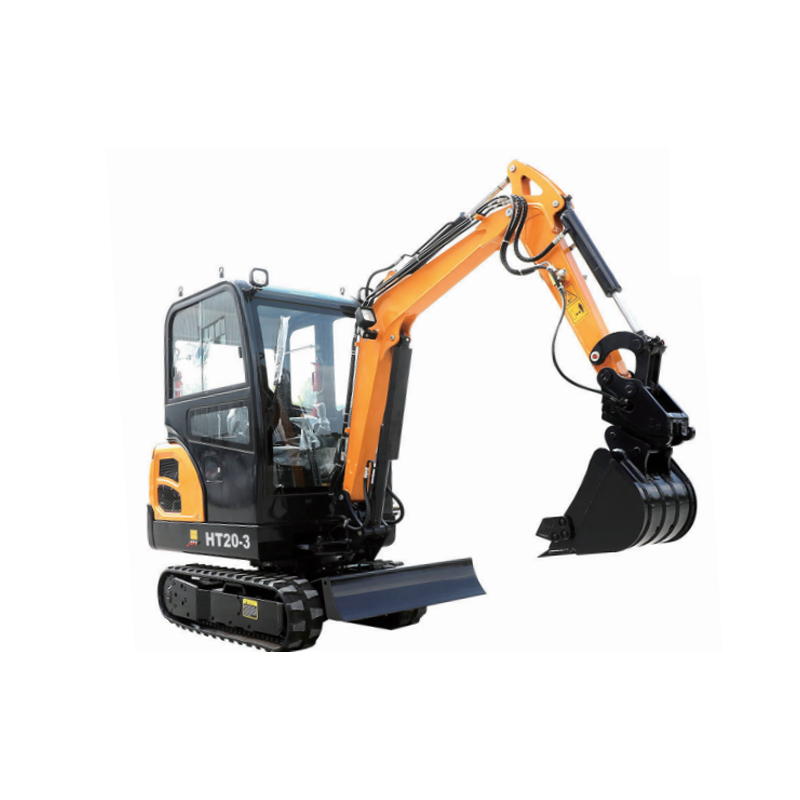

Mini Excavator

Machine Size

Overall dimension (L*W*H)

4170mm*1300mm*2280mm

Axle base(Track length on ground)

1230mm

Track gauge

1070mm

Min.Ground clearance

230mm

Swing radius at tail

1180mm

Track System

Maximum Travel speed

3.5km/h

Width of track shoe

230mm

Number of track shoe per side

38pcs

Number of upper roller per side

0

Number of bottom roller per side

4

Performance Parameter

Standard bucket capacity

0.1m³

Swing speed

12rpm

Max. Grade ability

30°

Max. Bucket digging force

15.3KN

Max. Arm digging force

10.5KN

Hydraulic system pressure

18Mpa

Machine weight

2000kg

Arm length

1000mm

Engine

Emission Standard

Euro5/ EPA

Engine Model

Kubota Engine

Power/Rotation speed

14.1kw(20HP)2000rpm

Optional Engine

China Laidong 22.1kw,2300rpm

Number of cylinder

3

Working Range

Max. Digging height

3700mm

Max. Dumping height

2290mm

Max. Digging depth

2450mm

Max. Vertical digging depth

2160mm

Max. Digging radius

4370mm

Min .swing radius

2020mm

Max. Lifting height of blade

240mm

Max. Cutting depth of blade

310mm

Boom swing angle(Left)

75°

Boom swing angle(Right)

45°
