HT18-1 Mini Excavator

Project Information

Project Description

HT18-1 Mini Hydraulic Excavator  Description:

High working efficiency: The radius of rotation is small. In the case of limited working space, the operator does not need to consider obstacles on the construction site to hinder the rotation of the excavator, so that the operator can focus on the operation of the bucket, which greatly improves the work effectiveness.

HT18-1 Mini Hydraulic Excavator  Features:

1. The standard configuration of this excavator includes the boom side swing function.Deflection angle (Left/Right):35°

2. This machine This machine is equipped with a plunger motor with high and low speed functions. Low speed can provide more powerful power when the excavator is climbing, high speed is suitable for normal driving.

HT18-1 Mini Excavator Parameter

Model:HT18-1

Engine

Kubota Engine D722,Koop Engine 292

Min.ground clearance

119mm

Mainvalve

BEIFANG

Tail turning radius

790mm

Working weight(kg)

1800kg

Track ground length

1050mm

Bucket capacity

0.03m3

Track length

1545mm

Power

10.2kw/14kw

Max digging height

2580mm

Swing speed

12RMP

Max.unloading height

1637mm

Gradeability

30

Max.digging depth

2060mm

Overall legnth

4325/1655mm

Max.digging distance

3160mm

Overall width

1100mm

Min.turning radiuse

1711mm

Upper width

990mm

Max.height at minimum

turning radius

2048mm

Overall height

2272mm



Standard track shoe width

180mm

Boom swing Angle(left)°

75

Track Gauge

920mm

Boom swing Angle(right)°

45

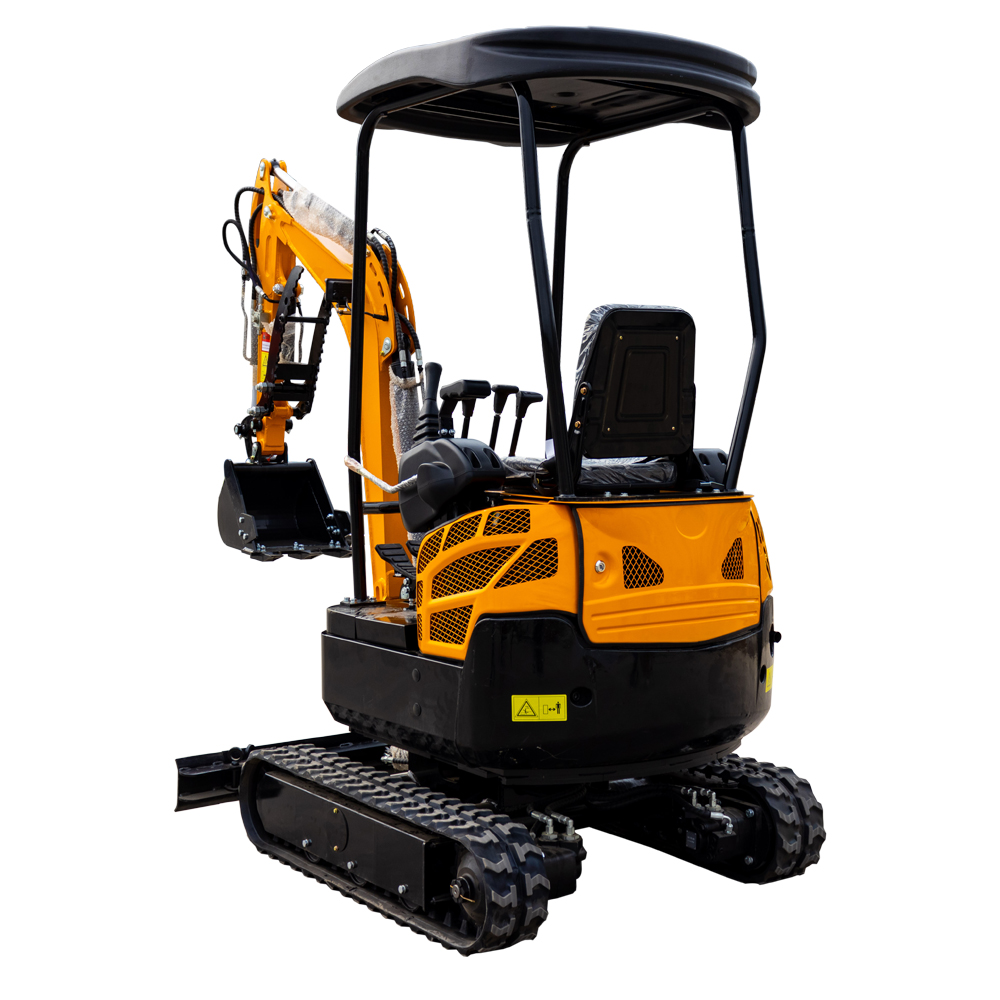

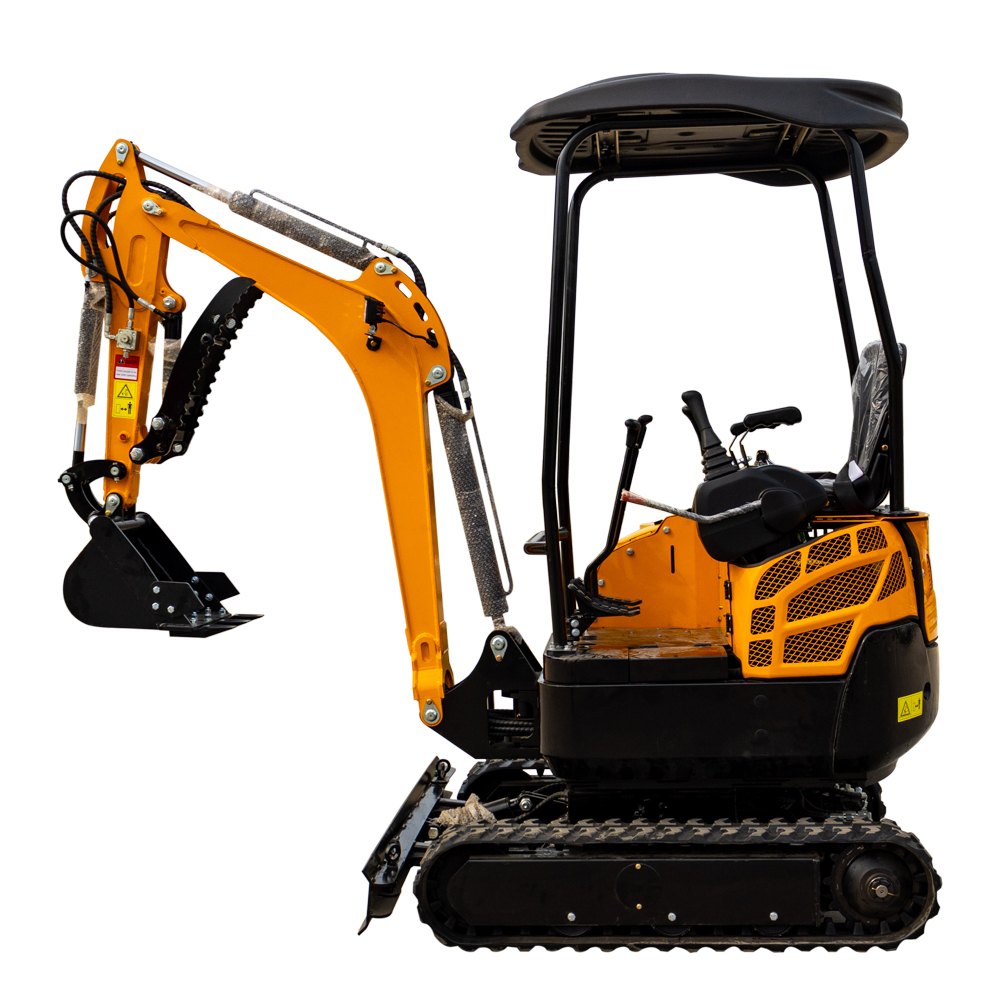

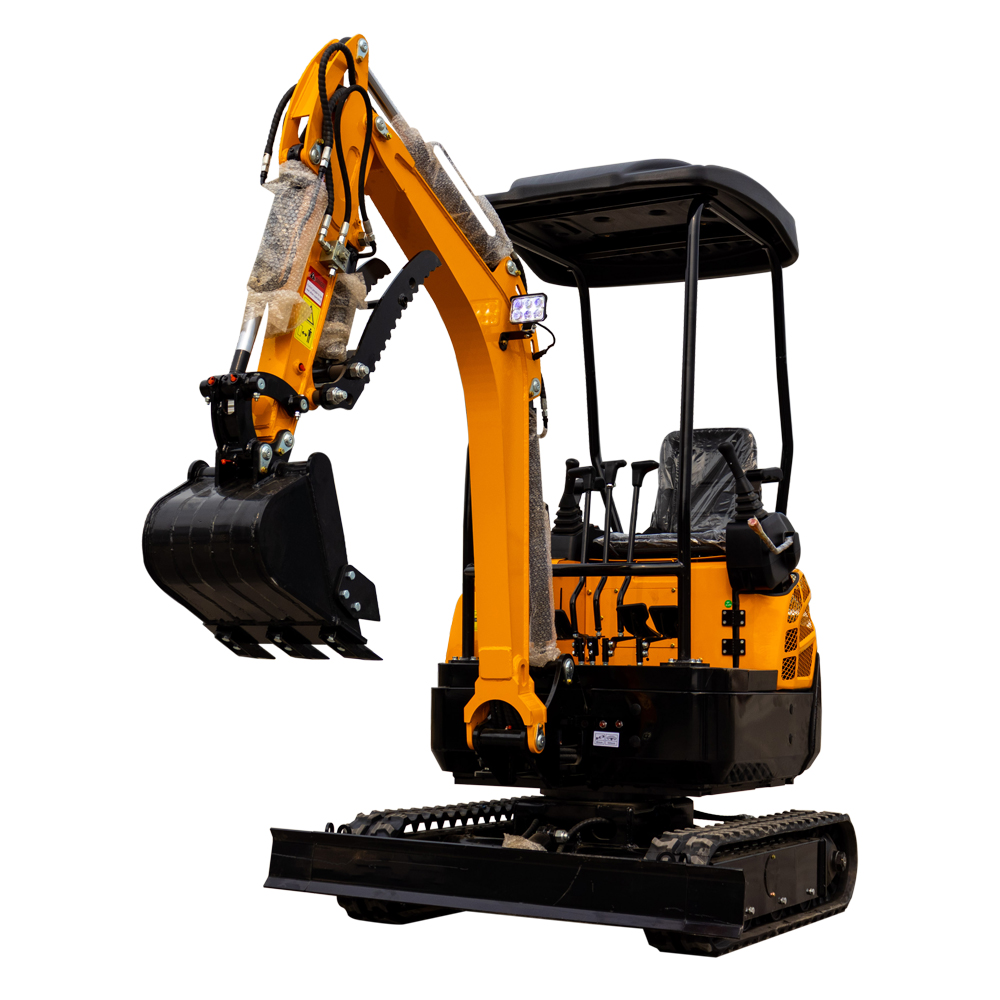

HT18-1 Mini Excavator Images
