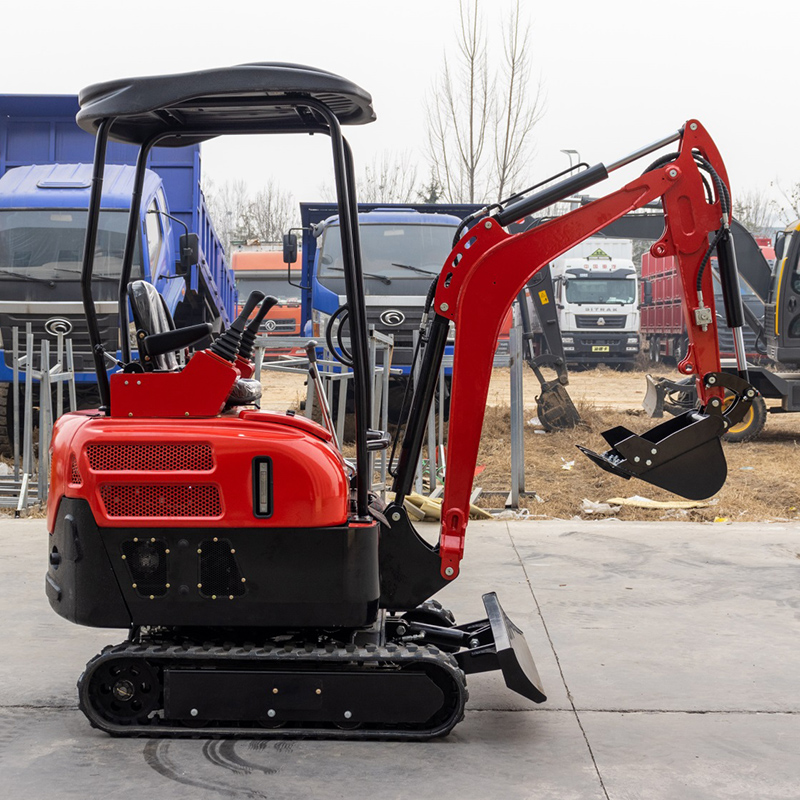

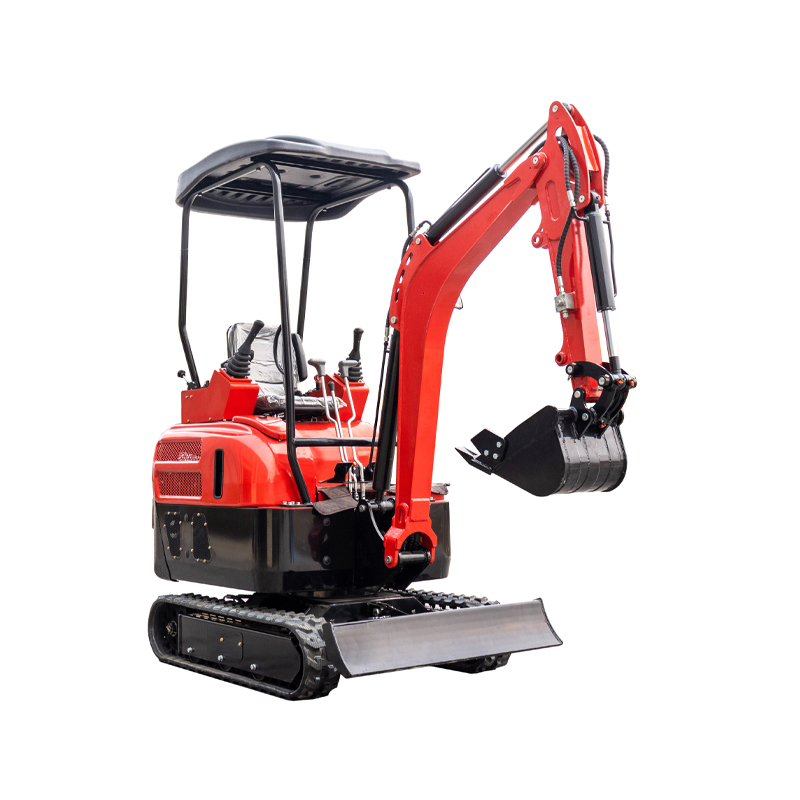

Mini Excavator

HT20-1

Specification

Engine

Laidong385 3TN25

Working

2000kg

Vavle

Beifang

Bucket capacity

0.04m3

Overall Dimension

Rated power

19KW/2200RPM

Total length/transportation length

3337/2597mm

Revolation speed

12RMP

Total width

1100mm

Gradeability

30°

Upper width

1053mm

Working range

Total Height

2325mm

Max. Digging Height

2580mm

Track width

180mm

Max. Dumping Height

1637mm

Track Gauge

920mm

Max. digging depth

2060mm

Mini. ground clearance

119mm

Max. digging distance

3130mm

Tailswing Radius

1013mm

Min. swing Radius

1575mm

Track ground length

1050mm

Height when min. swing radius

2075mm

Track length

1545mm
