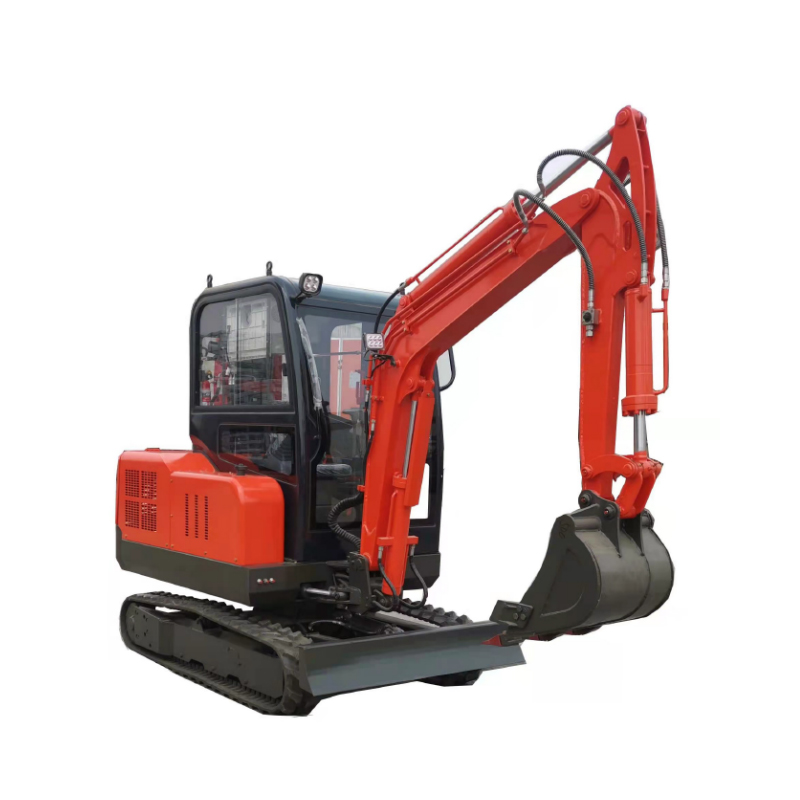

Mini Excavator

Model:HT30-2

Emission Standard

Tier 5/ EPA 4

Make /Model

Kubota Engine D1105

Power /Rotation speed

14.1kw(20HP)@2000rpm

Number of cylinder

3

Maximum Travel speed

2.5km/h

Width of track shoe(Rubber &steel track)

230mm

Number of track shoe per side(steel track only)

38pcs

Number of upper roller per side

0

Number of bottom roller per side

4

Machine Size

Overall dimension (L*W*H)

4170mm*1300mm*2280mm

Axle base(Track length on ground)

1230mm

Track gauge

1070mm

Minimum Ground clearance

230mm

Swing radius at tail

1180mm

Performance Parameter

Standard Bucket capacity

0.1m³

Swing speed

12rpm

Maximum Grade ability

30°

Maximum Bucket digging force

15.3KN

Maximum Arm digging force

10 5KN

Hydraulic system pressure

18Mpa

Machine weight

2550kg

Boom length

1850mm

Arm length

1000mm

Working Range

Maximum Digging height

3700mm

Maximum Dumping height

2290mm

Maximum Digging depth

2450mm

Maximum Vertical digging depth

2160mm

Maximum Digging radius

4370mm

Minimum swing radius

2020mm

Maximum Lifting height of blade

240mm

Maximum Cutting depth of blade

310mm

Boom swing angle(Left/Right)

70°/50
