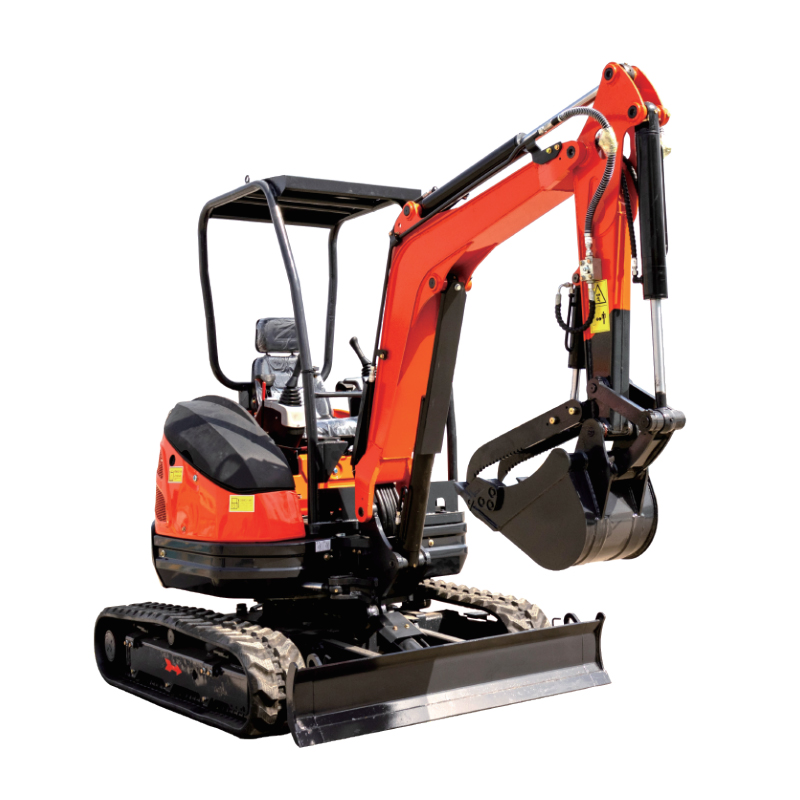

Model:HT25-2 |
|
|
Emission Standard |
Tier 5/ Stage V |
|
Make |
Kubota Engine |
|
Model |
D1105 |
|
Power /Rotation speed |
14.1kw(20HP)@2000rpm |
|
Number of cylinder |
3 |
|
Maximum Travel speed |
3km-5.5km/h |
|
Width of track shoe |
250mm |
|
Number of track shoe per side |
38pcs |
|
Number of upper roller per side |
1 |
|
Number of bottom roller per side |
3 |
|
PERFORMANCE PARAMETER |
|
|
Standard Bucket capacity |
0.07m³ |
|
Swing speed |
9 .5 rpm |
|
Max. Grade ability |
35° |
|
Maximum Bucket digging force |
19.5KN |
|
Maximum Arm digging force |
11KN |
|
Hydraulic system pressure |
21.5Mpa |
|
Machine weight |
2480kg |
|
MACHINE SIZE |
|
|
Overall dimension (L*W*H) |
3850*1300/1500*2290mm |
|
Chassis Recovery |
1300mm |
|
Chassis Extension |
1500mm |
|
Axle base(Track length on ground) |
1300mm |
|
Min.Ground clearance |
230mm |
|
Swing radius at tail |
750mm |
|
Working Range |
|
|
Maximum Digging height |
3980mm |
|
Maximum Dumping height |
2610mm |
|
Maximum Digging depth |
2500mm |
|
Maximum Vertical digging depth |
2050mm |
|
Maximum Digging radius |
4130mm |
|
Minimum swing radius |
1850mm |
|
Maximum Lifting height of blade |
280mm |
|
Maximum Cutting depth of blade |
310mm |
|
Boom swing angle(Left) |
75° |
|
Boom swing angle(Right) |
55° |
