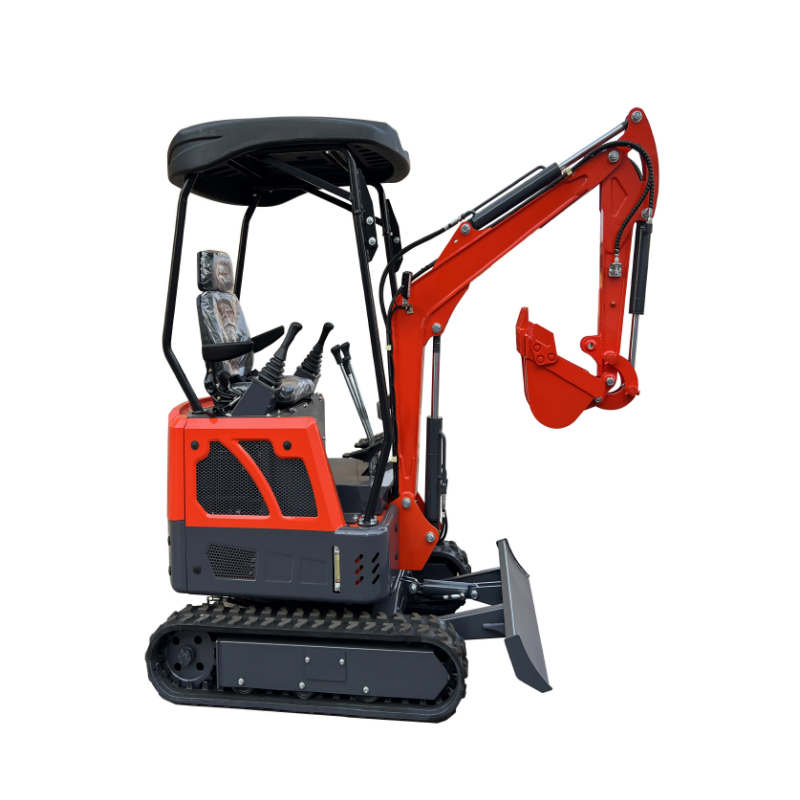

Model:HT17 |
|
|
Engine Emission Standard |
Tier 5/ Stage V |
|
Engine Make |
Laidong/ Kubota Engine |
|
Engine Model |
385/ D722 |
|
Engine Power /Rotation speed |
18.2kw/10.2kw14HP)2500rpm |
|
Engine Number of cylinder |
3 |
|
Maximum Travel speed |
3.5km/h |
|
Width of track shoe |
200mm |
|
Number of track shoe per side |
38pcs |
|
Number of upper roller per side |
1 |
|
Number of bottom roller per side |
3 |
|
PERFORMANCE PARAMETER |
|
|
Standard Bucket capacity |
0.03m³ |
|
Swing speed |
9 rpm |
|
Max. Grade ability |
35° |
|
Maximum Bucket digging force |
18KN |
|
Maximum Arm digging force |
11KN |
|
Hydraulic system pressure |
18.2Mpa |
|
Machine weight |
1650kg |
|
MACHINE SIZE |
|
|
Overall dimension (L*W*H) |
2550mm*1100mm*2310mm |
|
Wheel base |
1100mm |
|
Chassis width |
1100mm |
|
Axle base(Track length on ground) |
1300mm |
|
Track width |
180mm |
|
Min.Ground clearance |
380mm |
|
Working Range |
|
|
Maximum Digging height |
27400mm |
|
Maximum Dumping height |
2100mm |
|
Maximum Digging depth |
2150mm |
|
Maximum Vertical digging depth |
2320mm |
|
Maximum Digging radius |
2400mm |
|
Minimum swing radius |
1190mm |
|
Maximum Lifting height of blade |
325mm |
|
Maximum Cutting depth of blade |
175mm |
|
Boom swing angle(Left) |
75° |
|
Boom swing angle(Right) |
45° |
