Mini Excavator

Project Description

HT-10B 1T Mini Excavator Advantage

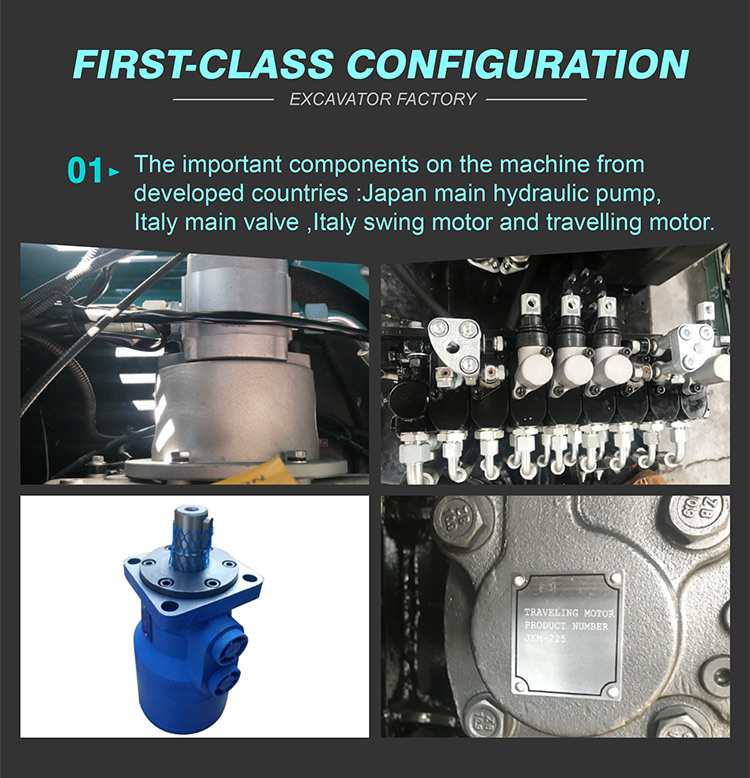

1. The important components on the machine from developed countries :Japan main hydraulic pump,Italy main valve ,Italy swing motor and travelling motor .

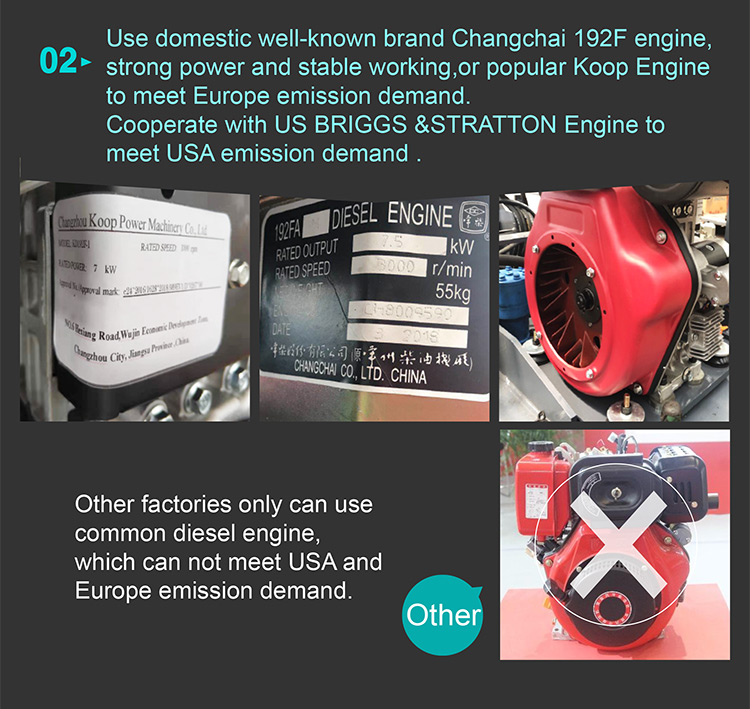

2. Use domestic well-known brand Changchai 192F engine,  strong power and stable working,or popular Koop Engine to meet Europe emission demand. Cooperate with US BRIGGS &STRATTON Engine to meet USA emission demand .

Other factories only can use common diesel engine,which can not meet USA and Europe emission demand .

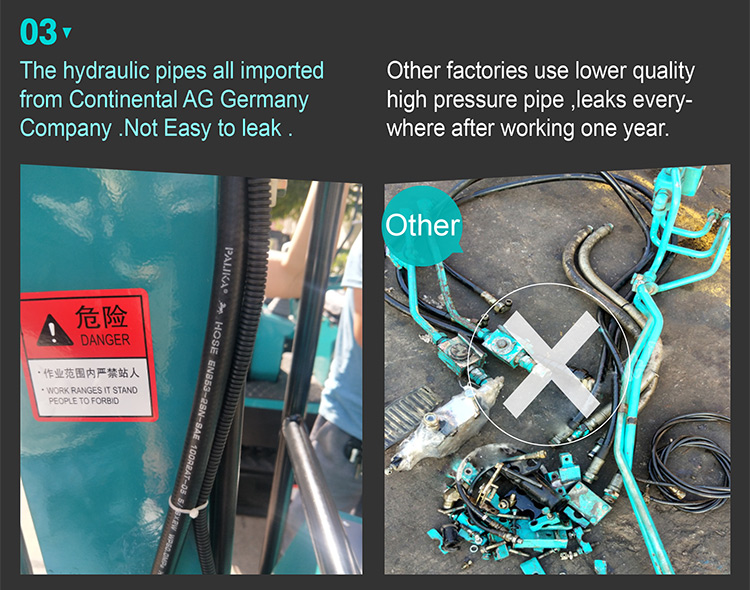

3. The hydraulic pipes all imported from Continental AG Germany Company .Not Easy to leak .

Other factories use lower quality high pressure pipe ,leaks everywhere after working one year.

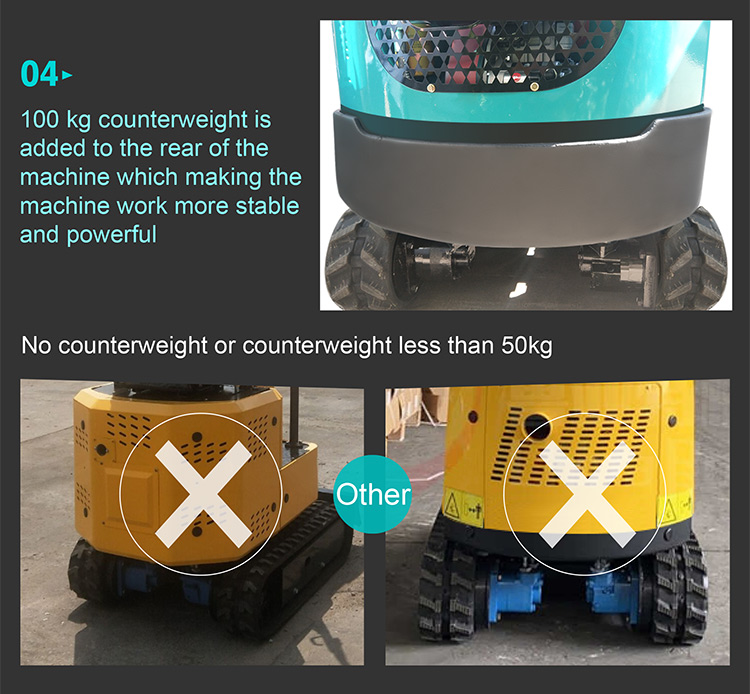

4.100 kg counterweight is added to the rear of the machine which making the machine work more stable and powerful

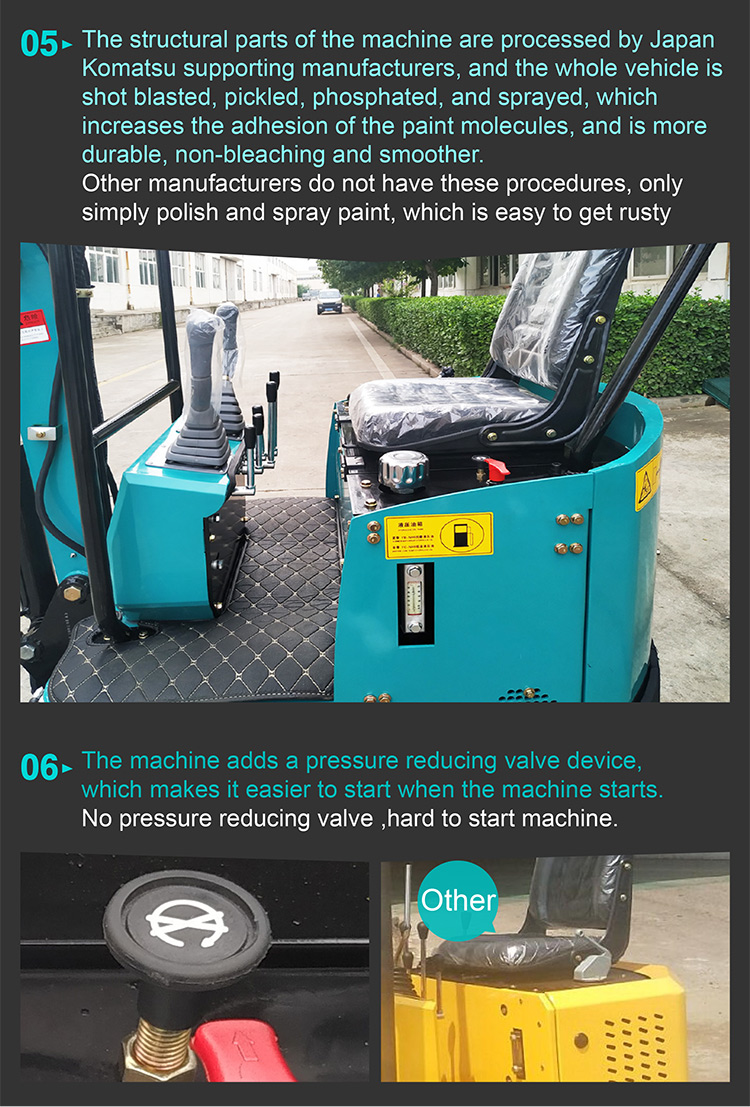

5. The structural parts of the machine are processed by Japan komatsu Engine supporting manufacturers, and the whole vehicle is shot blasted, pickled, phosphated, and sprayed, which increases the adhesion of the paint molecules, and is more durable, non-bleaching and smoother.

Other manufacturers do not have these procedures, only simply polish and spray paint, which is easy to get rusty

6. The machine adds a pressure reducing valve device, which makes it easier to start when the machine starts.

No pressure reducing valve ,hard to start machine .

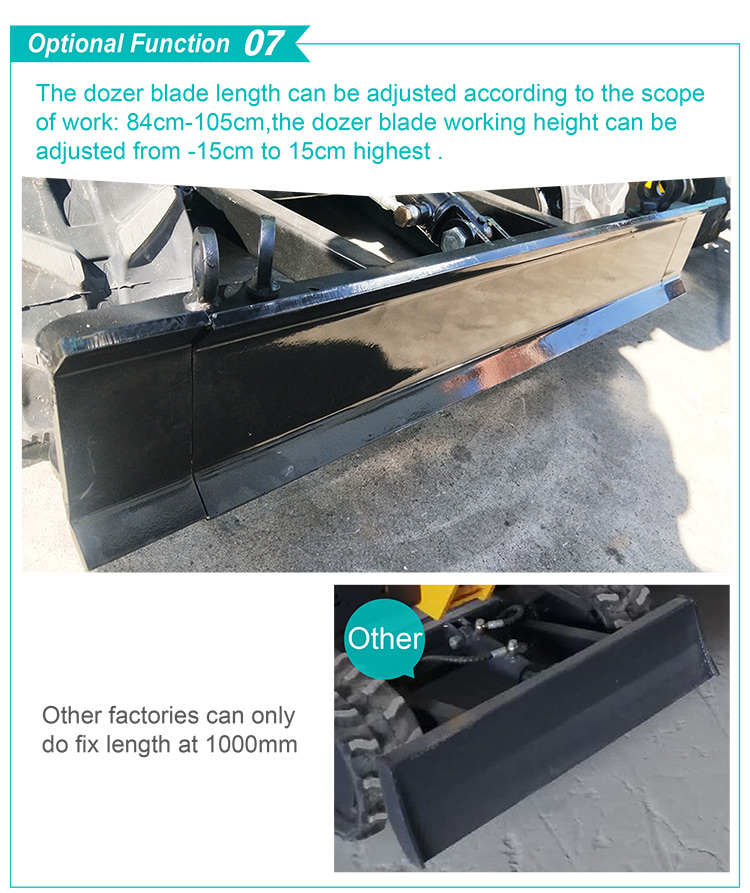

7. The dozer blade length can be adjusted according to the scope of work: 84cm-105cm,the dozer blade working height can be adjusted from -15cm to 15cm highest .

Other factories can only do fix length at 1000mm

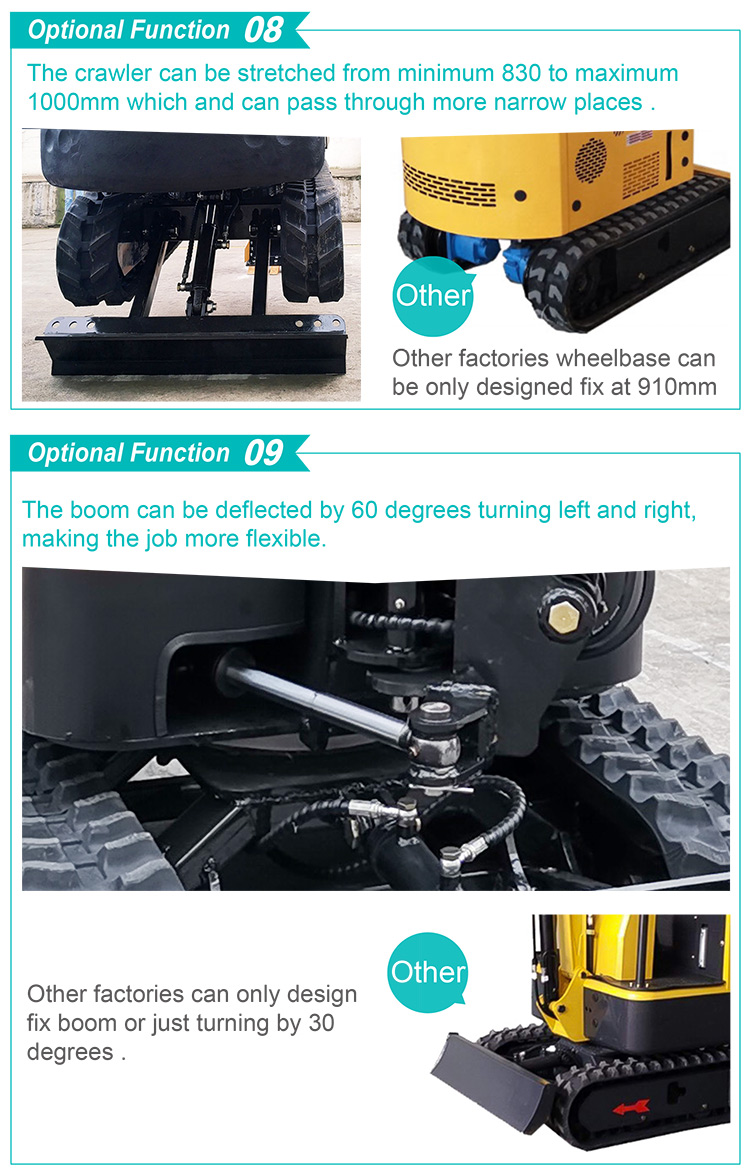

8.  The crawler can be stretched from minimum 830 to maximum 1000mm which and can pass through more narrow places .

Other factories wheelbase can be only designed fix at 910mm

9：The boom can be deflected by 60 degrees turning left and right, making the job more flexible.

Other factories can only design fix boom or just turning by 30 degrees .

HT-10B 1T Mini Excavator  Parameter

Model	HT-10
Weight	1000kg
Digging bucket capacity	0.025cbm/120kg
Bucket width	380mm
Engine	Koop Engine 192F
Optional Engine	Briggs & Stratton Engine Yanmar Engine
Bore stroke	Single cylinder, fan cool
Rated power	7kw/3000r/min
Main pump	G5-6
Displacement	6.8ml/r
Swing motor	SANYANG (BMRS-250)
Traveling motor	SANYANG (BMT-245)
Travel speed	1. 5km/h
Main Demensions
Overall dimension( LxWxH)	2775 X 930 x 2219 mm
Wheelbase	910 mm
Total length of track	1230mm
Platform ground clearance	380mm
Platform back turming radius	784 mm
Chassis width	896 mm
Track width	180 mm
Chassis ground clearance	132 mm
Track height	320 mm
Operating Range
Max. Digging depth	1650 mm
Max. Vertical digging depth	1375 mm
Max. Digging height	2610 mm
Max. Dumping height	1850 mm
Max. Digging radius on ground	2850 mm
Min. Rotation radius	1330 mm
Max. Upgrade height of bulldozer blade	345mm
Max. Digging depth of bulldozer blade	255 mm

HT-10B 1T Mini Excavator Detailed Introduction
