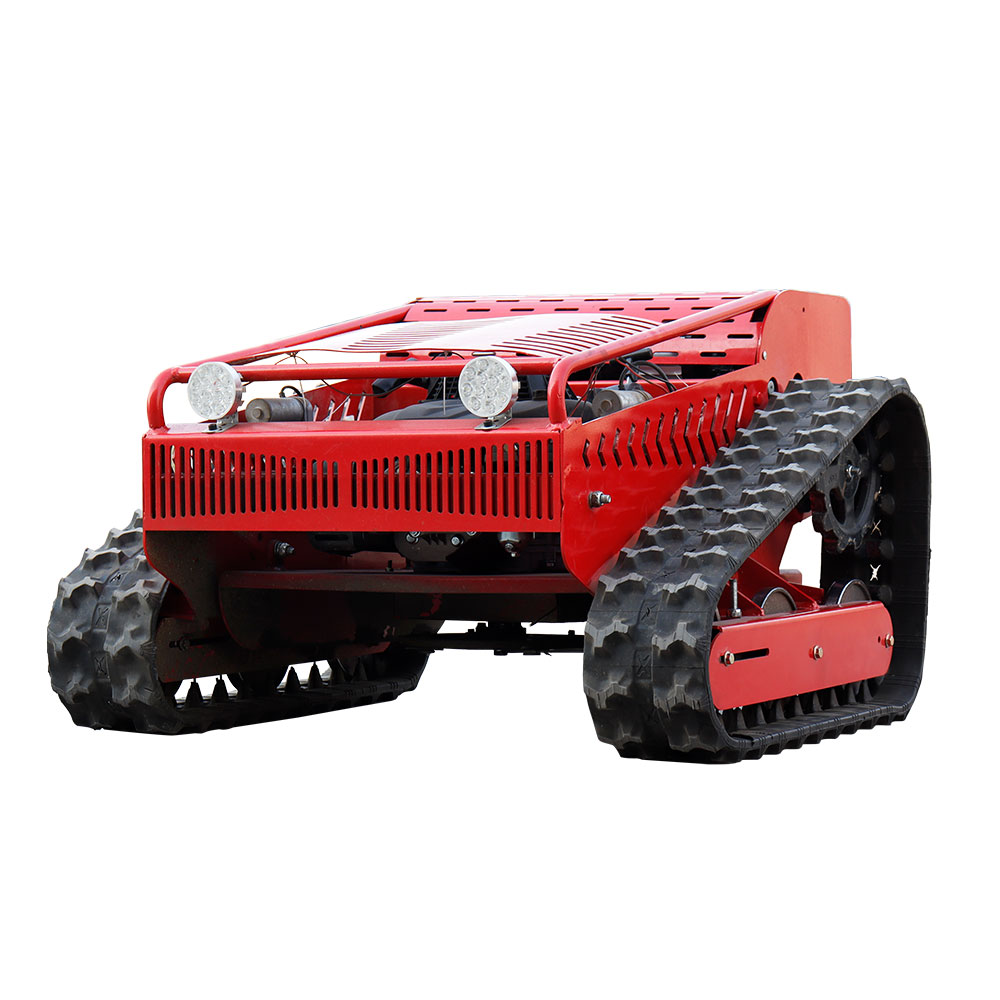

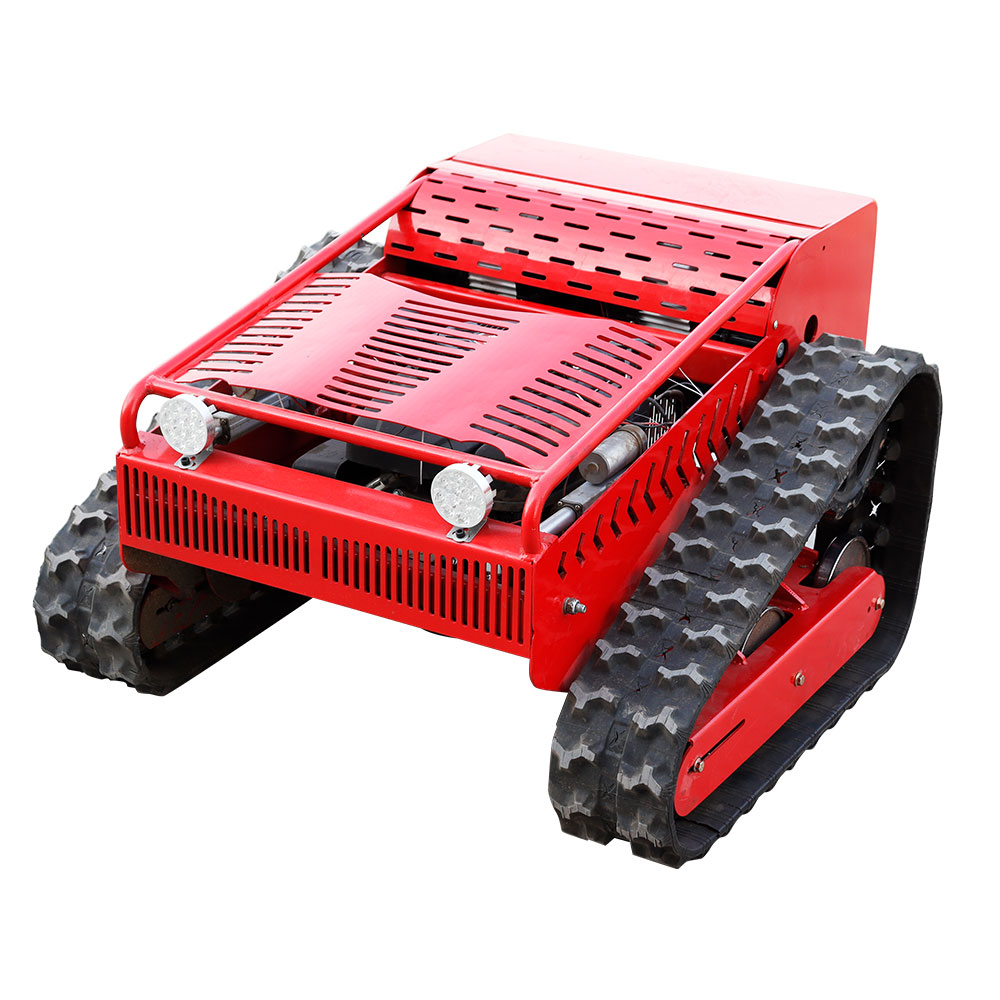

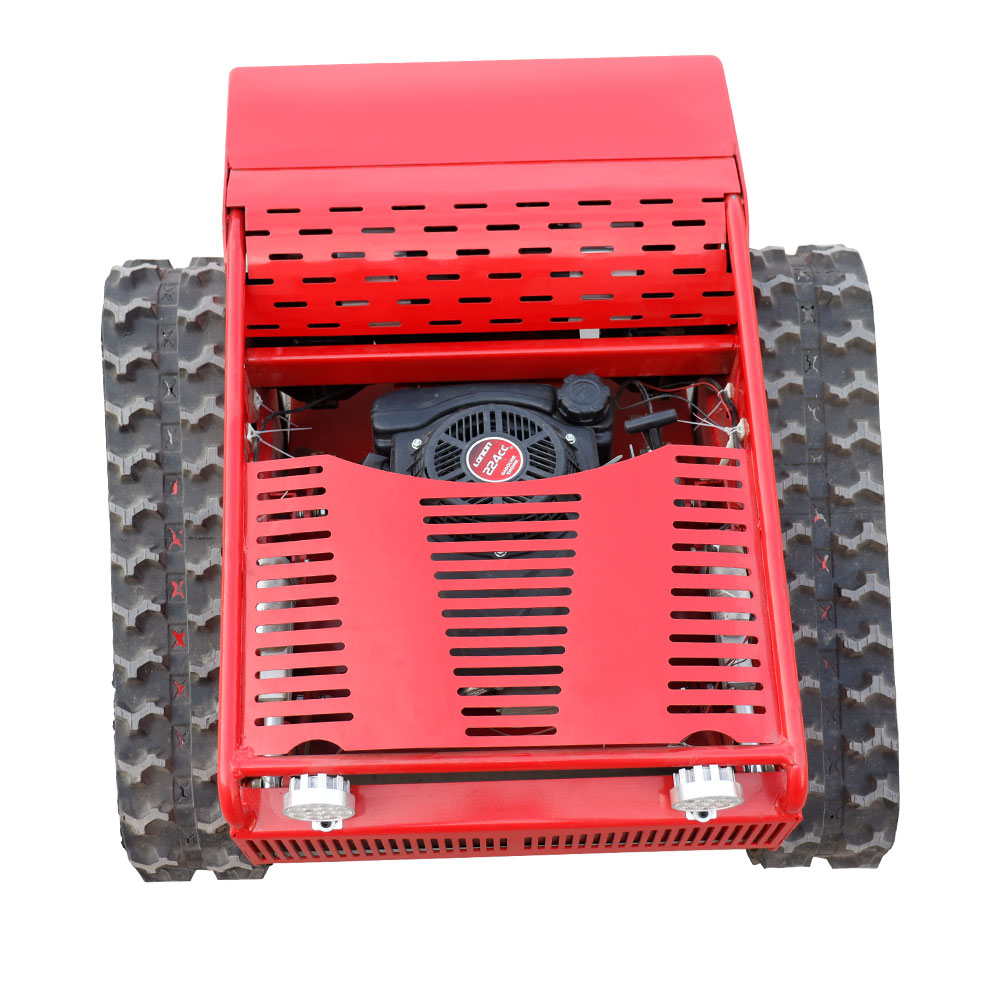

HTM750 Remote Control  Crawler Lawn Mower

Project Information

Project Description

Introduction for HTM750 Remote Control  Crawler Lawn Mower

The intelligent lawn mower can complete the work of mowing the lawn independently, without direct human control and operation, and has low power, low noise, exquisite and beautiful appearance, and greatly reduces manual operation.

Operating instructions of HTM750 Remote Control  Crawler Lawn Mower

Preparation before starting the remote control mower

(1)Be sure to confirm the tightness of screws of all parts before starting up.

(2)Turn on the machine power key switch, pull back the right control lever and hold it, then press the switch key of the remote controller to turn on the remote controller.

(3)When the remote control is turned on, a "drip" will appear, indicating that the machine matches the remote control normally.

(4)engine start;

a> Release the brake on the right side of the engine (also disconnect the flameout switch);

b> Turn the left throttle counterclockwise to the end (so as to open the engine throttle at the same time);

c> Pull hard on the pull rope of the hand pull plate to start the engine;

d> Adjust the throttle to the proper speed in time after starting the engine;

Paramenters of HTM750 Remote Control  Crawler Lawn Mower

Engine Loncin 224
Starting method hand-opened
Range of use Slope Dike . Orchard . Garden . lawn
Power system Hybrid
Cutting height 20-150cm
Operation mode Remote Control
Remote control distance 300 meters
Maximum working slope 45°
Overall weight 175kg
Drive motor 24v brushless motor
Traveling speed 0-4km
Charging mode System self-charging
Mowing width 50cm
Traveling mode Crawler
