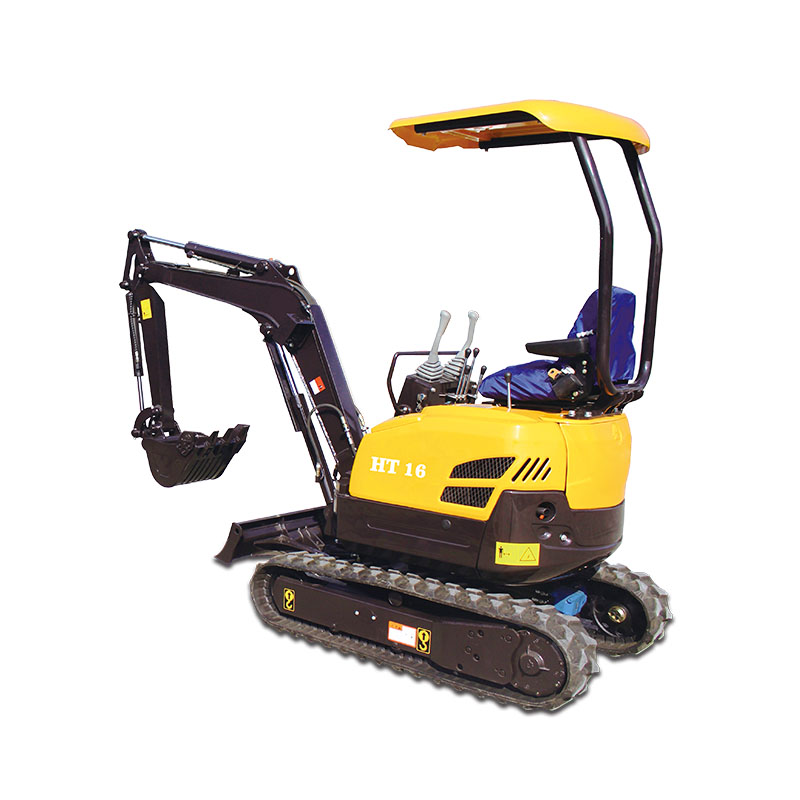

Model |
HT16 |
|
Weight |
1600kg |
|
Digging bucket capacity |
0.045cbm/200kg |
|
Digging bucket width |
420mm can add narrow bucket is 200mm |
|
Engine |
Yanmar Engine (3TNV70-S) |
|
Rated power |
10kw/2200/r/min |
|
Displacement |
0.854L |
|
Bore stroke |
three cylinder water cool |
|
Main pump |
KDK |
|
Valve |
PERMCO |
|
Displacement |
6.8ml/r |
|
Swing motor |
EATON |
|
Traveling motor |
KOREA DONGHYUN |
|
Hydraulic and liquid capacity |
|
|
Pump type |
gear pump |
|
Pressure |
16Mpa |
|
Displacement |
23.3 L/min |
|
Capacity of hydraulic tank |
15.3L |
|
Engine oil capacity(valid) |
2.8L (1.3L) |
|
Capacity of fuel tank |
16.4L |
|
Main Demensions |
|
|
Overall dimension( LxWxH) |
3160x1040x2377 mm |
|
Total length of track on land |
1450mm |
|
Platform ground clearance |
437 mm |
|
Platform back turning radius |
740mm |
|
Chassis width |
1040 mm |
|
Track width |
180 mm |
|
Chassis ground clearance |
437 mm |
|
Track height |
320 mm |
|
Operating Range |
|
|
Max. Digging depth |
2150 mm |
|
Max. Vertical digging depth |
1740 mm |
|
Max. Digging height |
3275 mm |
|
Max. Dumping height |
2310 mm |
|
Max. Digging radius on ground |
3470mm |
|
Min. Rotation radius |
1440 mm |
|
Max. Upgrade height of bulldozer blade |
262 mm |
|
Max. Digging depth of bulldozer blade |
192 mm |
