HT-10D 1T Mini Excavator

Project Information

Project Description

HT-10D 1T Mini Excavator Introduction

Dynamical System

High quality Yanmar / Kubota / Briggs&Stratton/Changchai / Koop engine can ensure the reliability of the machine under bad working conditions.Come with red flexible coupling that acts as a shock absorber. If the engine jumps or the different shafts act, this will compensate.
Oil Supply System

lubricating oil pressure alarm system for protect the machine, it will be alarm automatically if no lubricating oil.
▲ The hydraulic tank breathing valve has a pressure compensating valve and air filtering function. The other manufacturers' machines are only one cover, no pressure.
▲ The entrance of the hydraulic oil tank is equipped with magnets to prevent tiny objects such as rust from entering the hydraulic oil tank
Cooling System

Built-in sealed exhaust fan and good cooling system ensure the machine does not heat up and extend the service life
Running System

Travel motor come with three hose, one is the unloading pipe, prevents the internal pressure of the motor from being too high, and the internal high-temperature oil will be discharged in the unloading pipe to improve the service life of the traveling motor.
Stable Equilibrium System

ISO TOPS/ROPS TEST analysis system is used in the 4-leg driving shed, which is safe and reliable with
high stability.New Cast iron counter weight to ensure more balanced digging force.

EPA/CE,ISO certificate Optional: Boom swing Color can choose Red, Yellow, Blue, accept customized.

HT-10D 1T Mini Excavator Parameter

Model

HT-10D

Weight

1000kg

Digging bucket capacity

0.025cbm/120kg

Bucket width

380mm

Engine


KOOP 192F


Optional Engine

BRIGGS & STRATTON YANMAR

Bore stroke

Single cylinder, fan cool

Rated power


7kw/3000r/min


Main pump

G5-6

Displacement

6.8ml/r

Swing motor

SANYANG (BMRS 250)

Traveling motor

SANYANG (BMT-245)

Travel speed

1.5km/h

Main Demensions


Overall dimension( LxWxH)

2775x 930 x 2219 mm

Wheelbase

910 mm

Total length of track

1230mm

Platform ground clearance

380mm

Platform back turming radius

784 mm

Chassis width

896 mm

Track width

180 mm

Chassis ground clearance

132 mm

Track height

320 mm

Operating Range


Max. Digging depth

1650 mm

Max. Vertical digging depth

1375 mm

Max. Digging height

2610 mm

Max. Dumping height

1850 mm

Max. Digging radius on ground

2850 mm

Min. Rotation radius

1330 mm

Max. Upgrade height of bulldozer blade

345 mm

Max. Digging depth of blldozer blade

255 mm

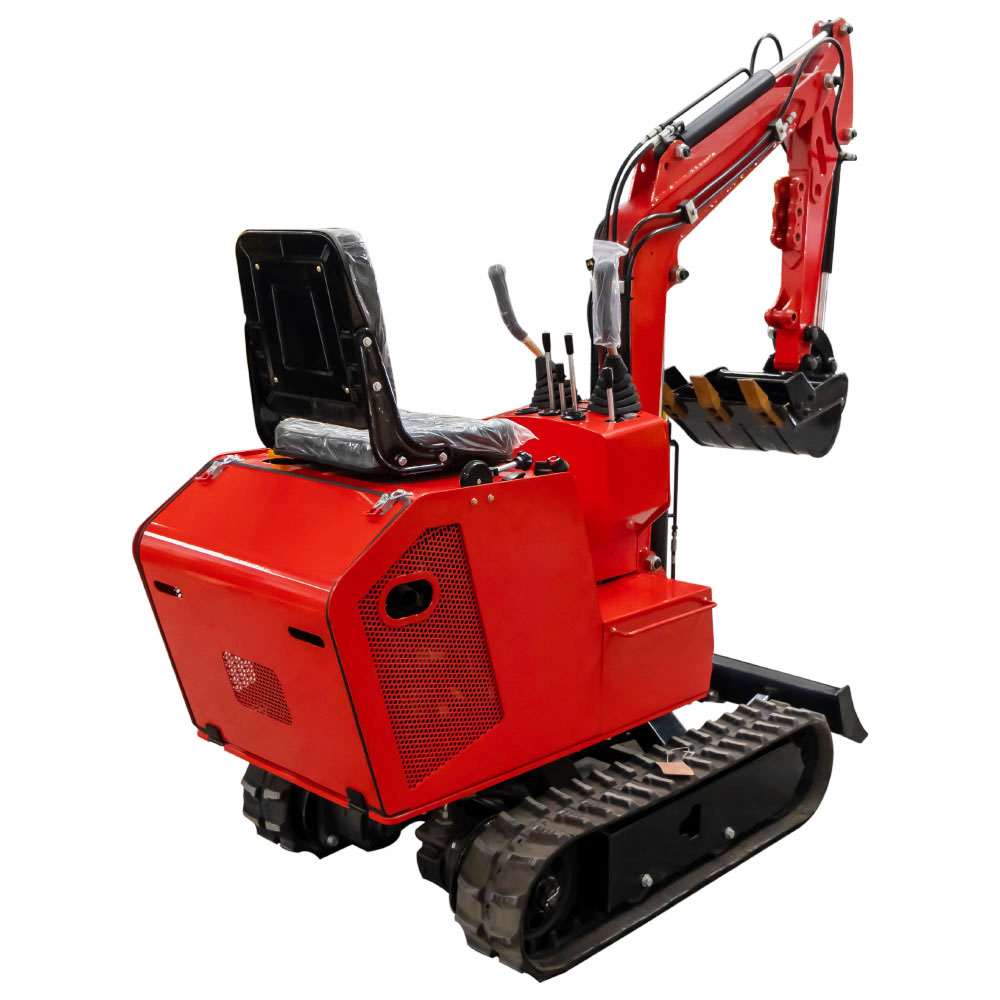

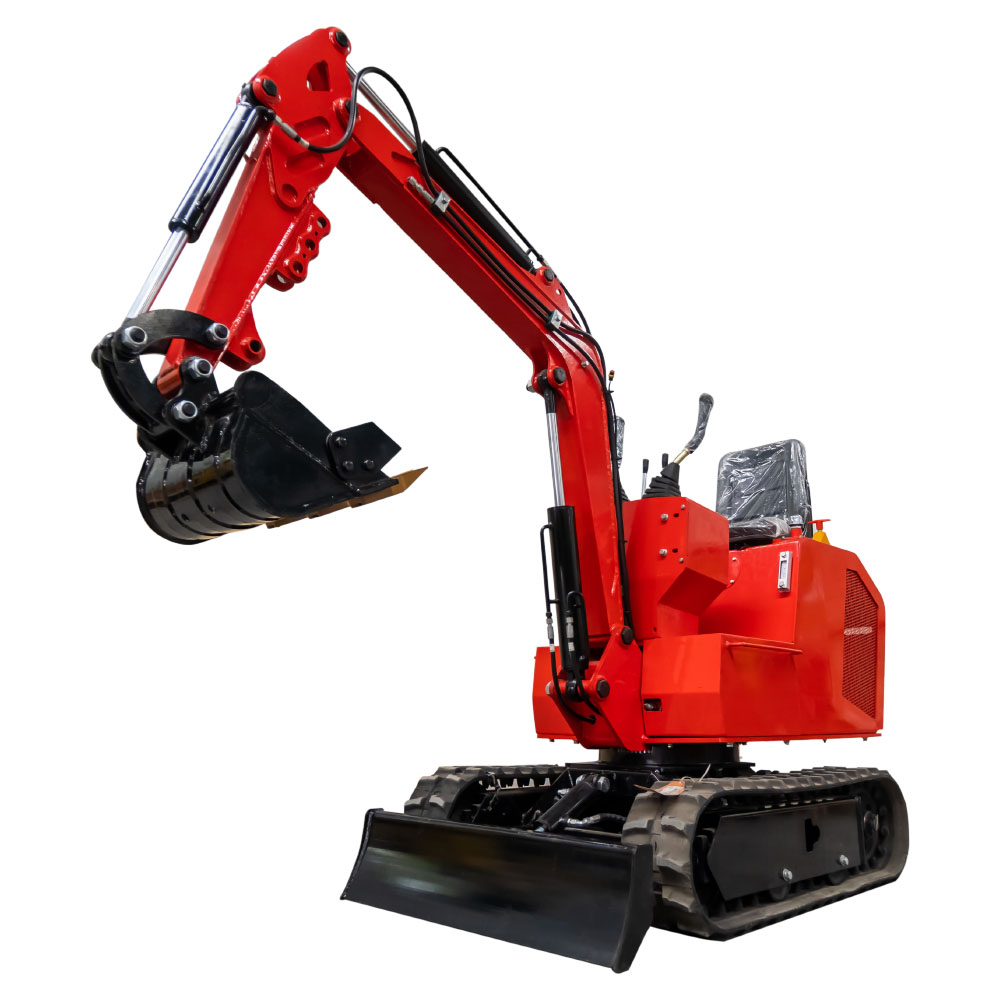

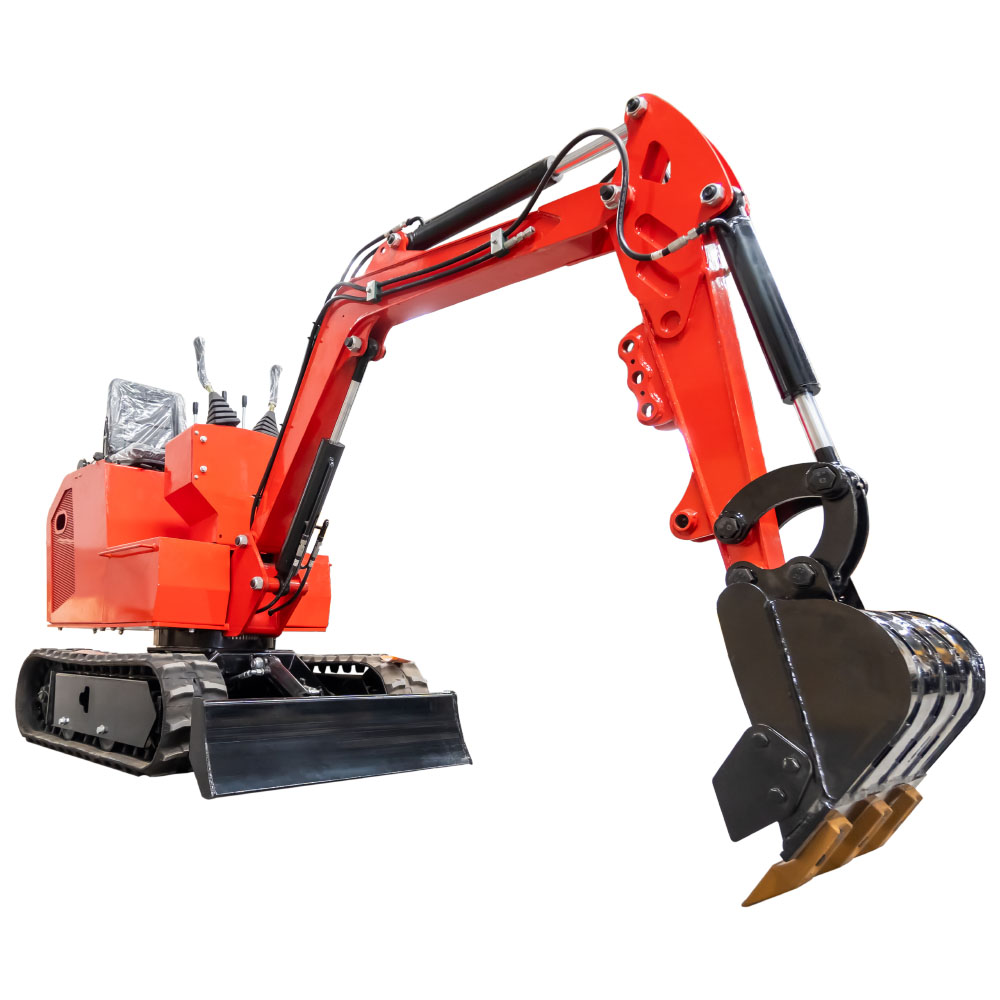

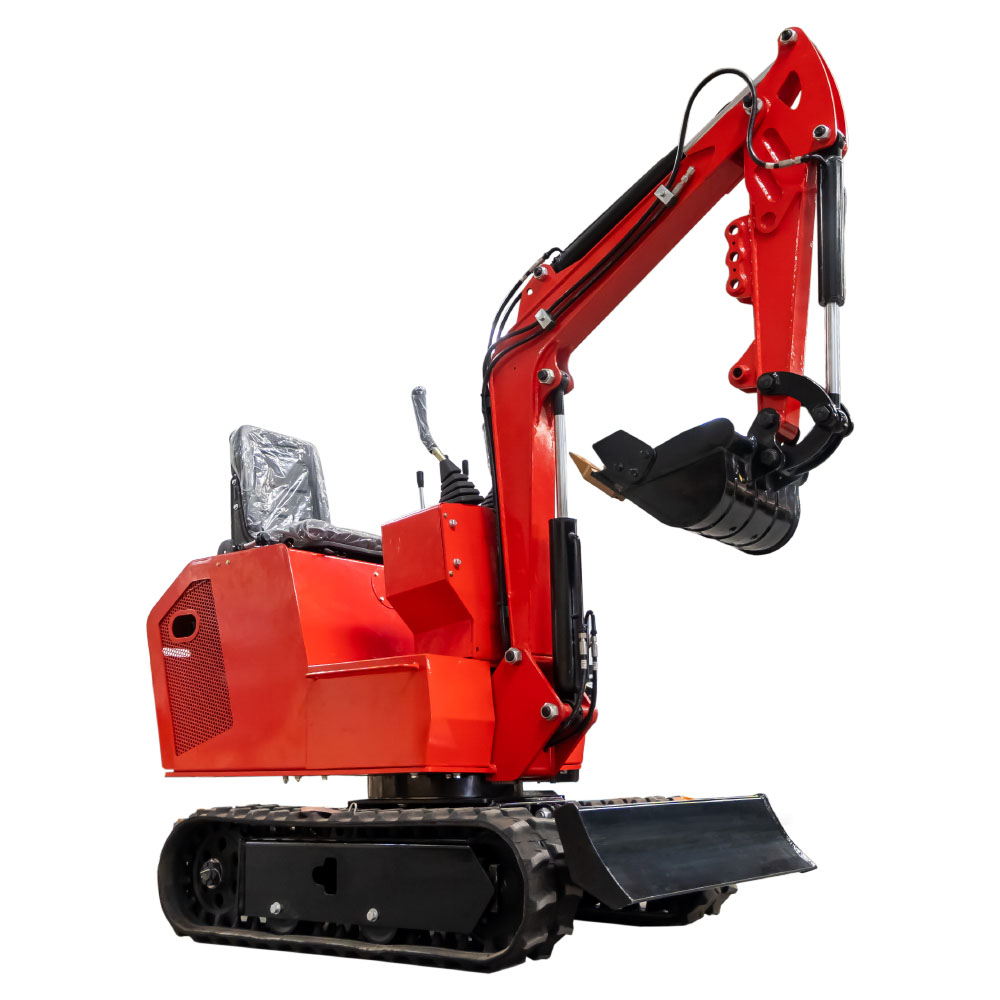

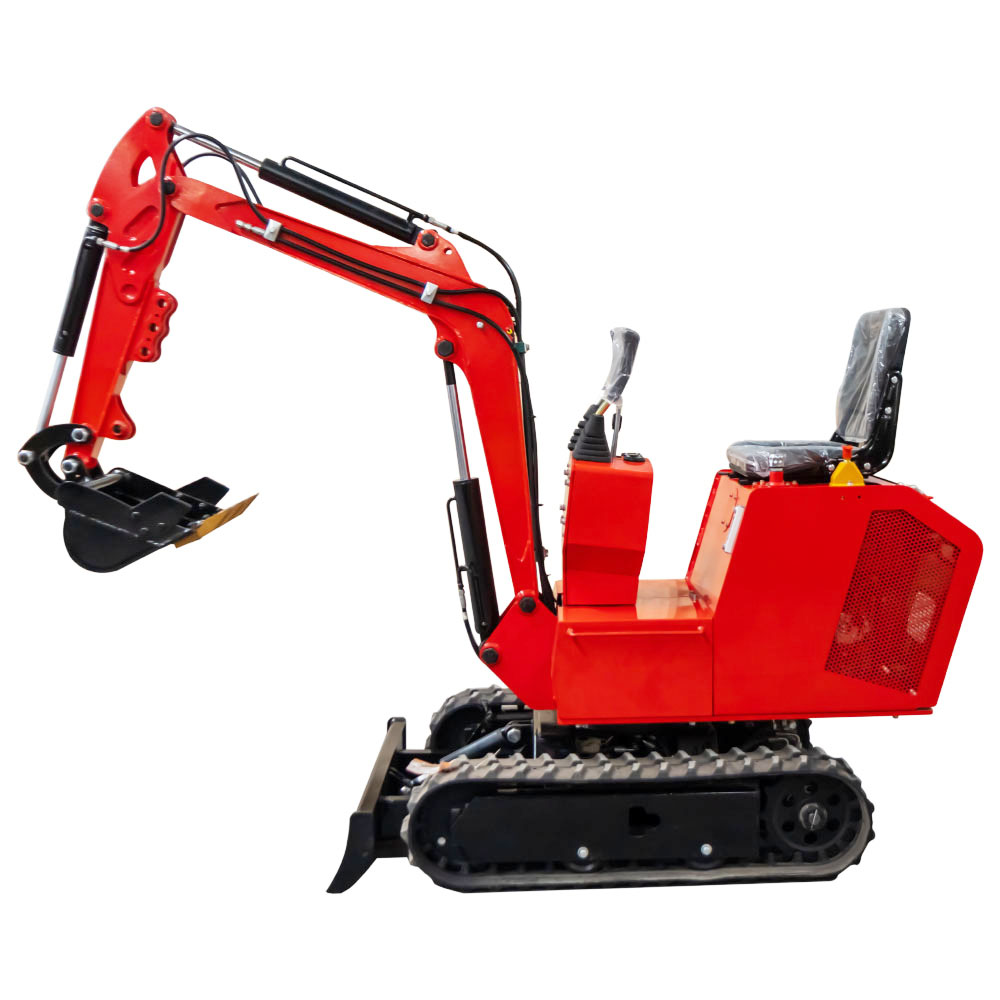

HT-10D 1T Mini Excavator Images
