HT 304 30hp 4wd Mini Farm Tractor

Project Information

Project Description

Characteristics of HT 304 30hp mini tractor:


1- Famous brand: brand with long history and good reputation

2- Top quality: successfully passed ISO 9001 international quality certification system and China 3C quality system

3- Famous brand engines: strong power, low oil consumption, easy starting, and good economic performance

4- High adaptability: matches all kinds of agricultural implements

Main Technical Data of HT304 Tractor

Model

HT304

Type

4X4 wheeled type

Main dimensions

W XD X H (mm)

2930X1500X2000

Wheel base (mm)

1605/1730

Front wheel (mm)

1070/1170/1270 Adjustable

Rear wheel (mm)

1000/1100/1200/1300 Adjustable

Min. ground clearance (mm)

330

Min. turning circle radius (m)

When one-side braking

2.5±0.2

No braking

2.9±0.2

Tractor dry mass (kg)

1400

Front/Rear Ballast (kg)

50/60

Max. PTO Power (kw)

19.9

Transmission box

Mechanic gear box

Gear shifts

(4+1)X2

Theoretical speed (km/h)

F2.07-31.54 R2.72-12.59

Differential

closed, 2 planetary gear

Differential lock

Jaw type

Diesel Engine

Model

3T30

Type

Vertical 4 stroke, water cooled

Number of Bores

3

Bore dia. X stroke (mm)

85X95

Combustion chamber

direct injection

Rated Power (kw)

22.06

Fuel consumption (g/kw.h)

≤248.9g/kw.h

Engine oil consumption (g/kw.h)

≤2.04g/kw.h

Front tyre size

6.00-16

Rear tyre size

9.50-24

Steering system

Power steering

Brake

Shoe brake

Tri-point Hitch system

Rear mounted, ball-hinged

Max. lifting capacity (kN)

4.96

PTO type

Rear mounted, nonindependent

PTO Rev. (rpm)

540/720 r/min

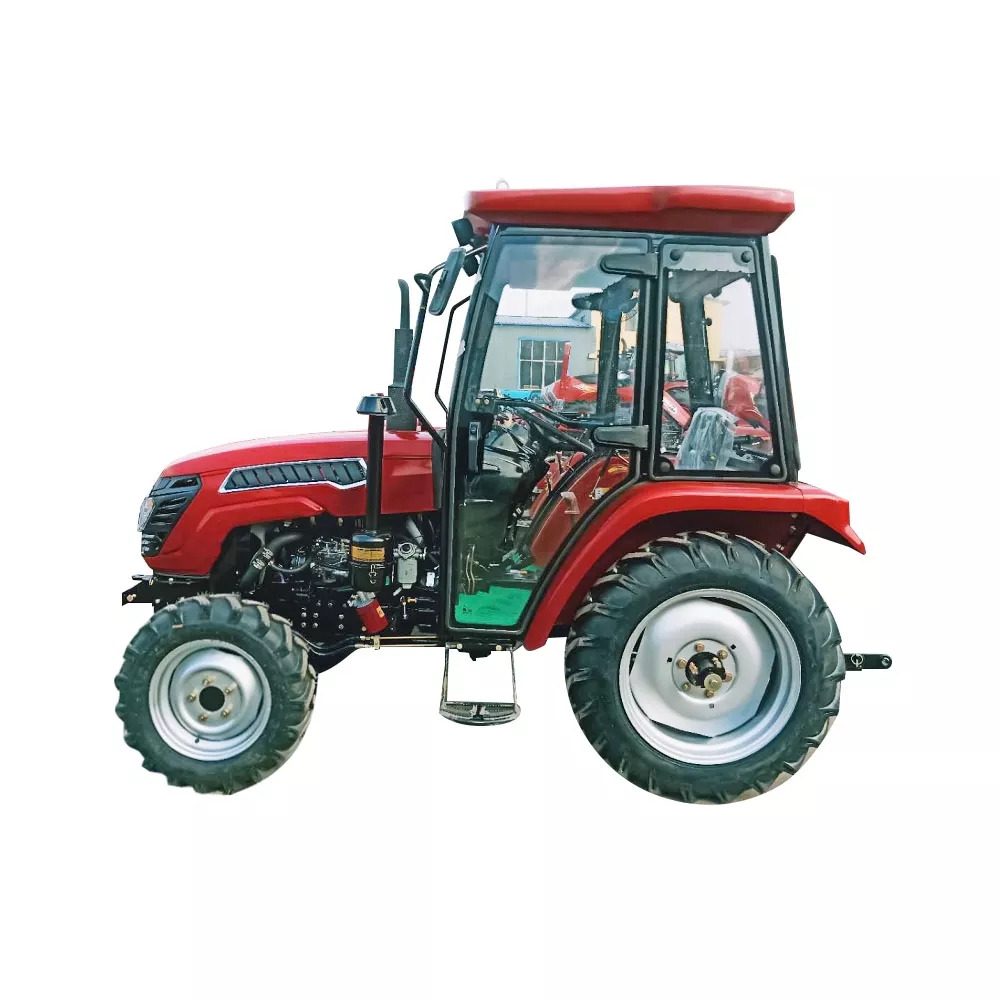

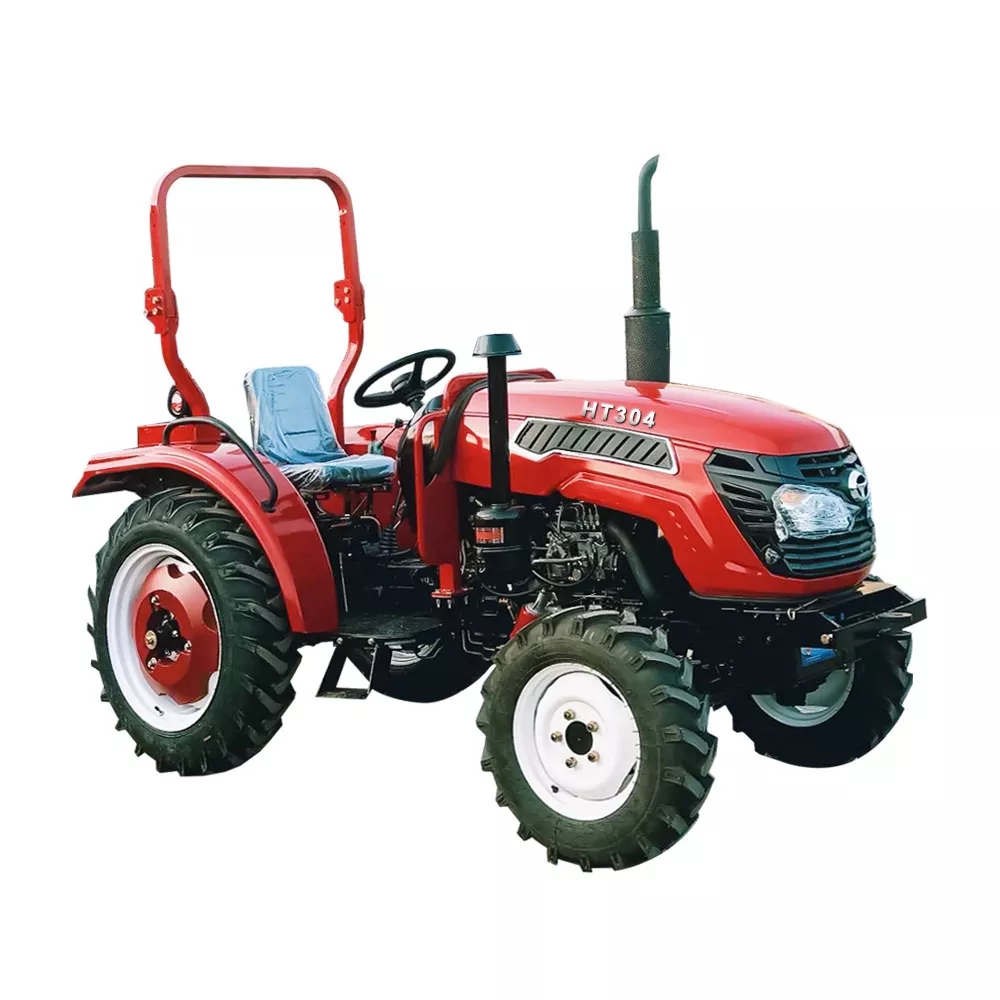

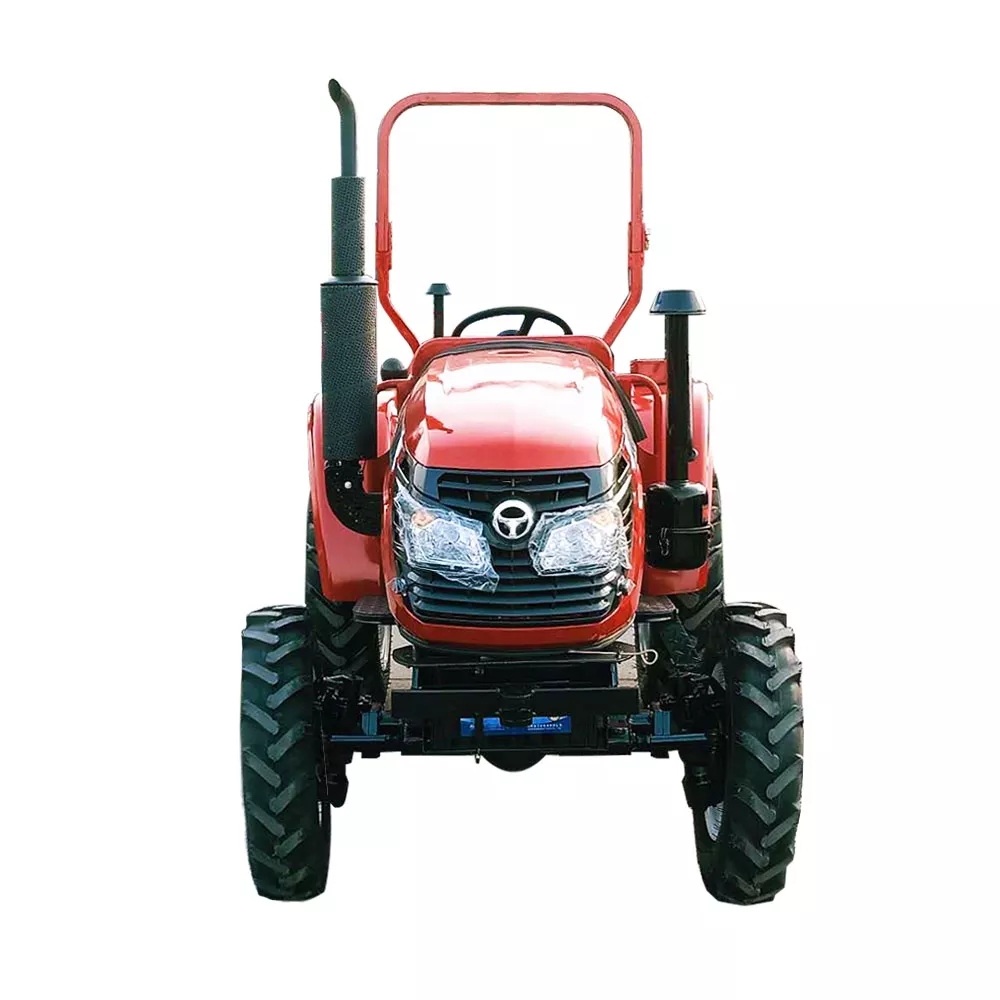

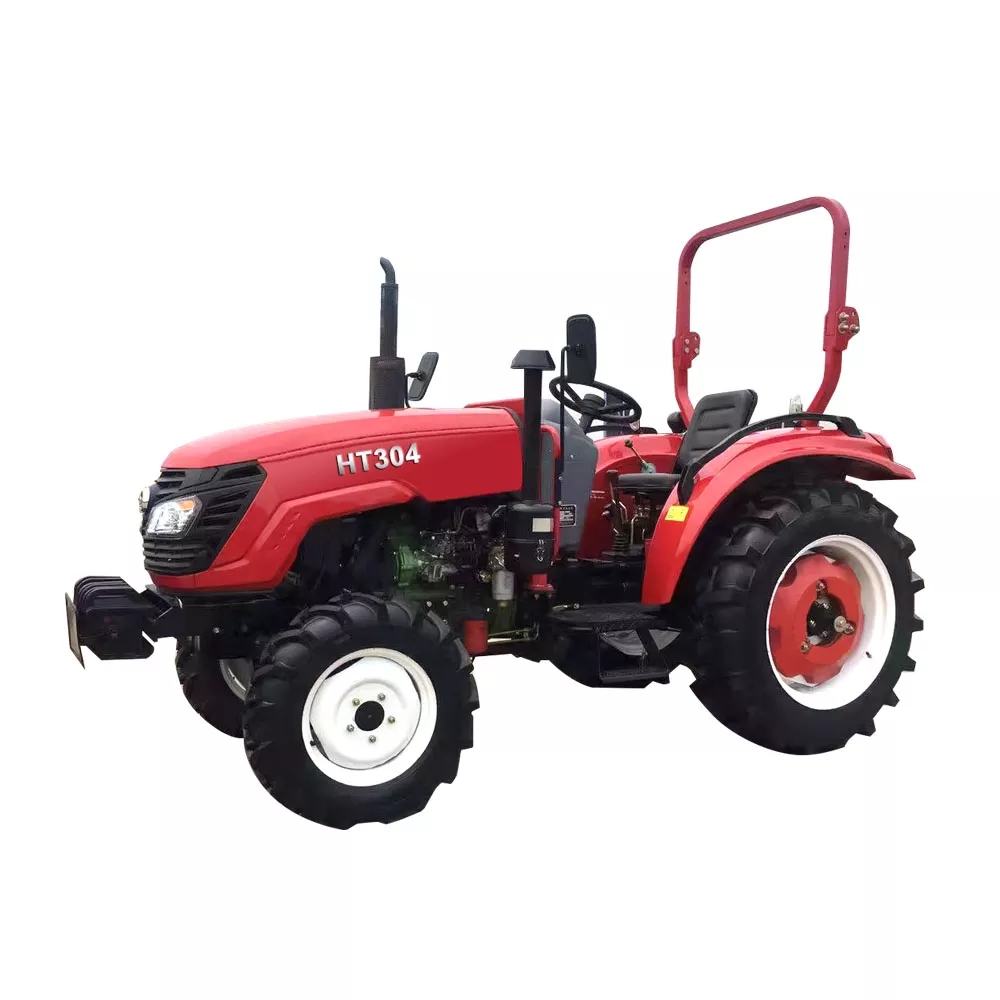

HT 304 30hp 4wd Mini Farm Tractor Images
