1- Famous brand: brand with long history and good reputation
2- Top quality: successfully passed ISO 9001 international quality certification system and China 3C quality system
3- Famous brand engines: strong power, low oil consumption, easy starting, and good economic performance
4- High adaptability: matches all kinds of agricultural implements
|
Model |

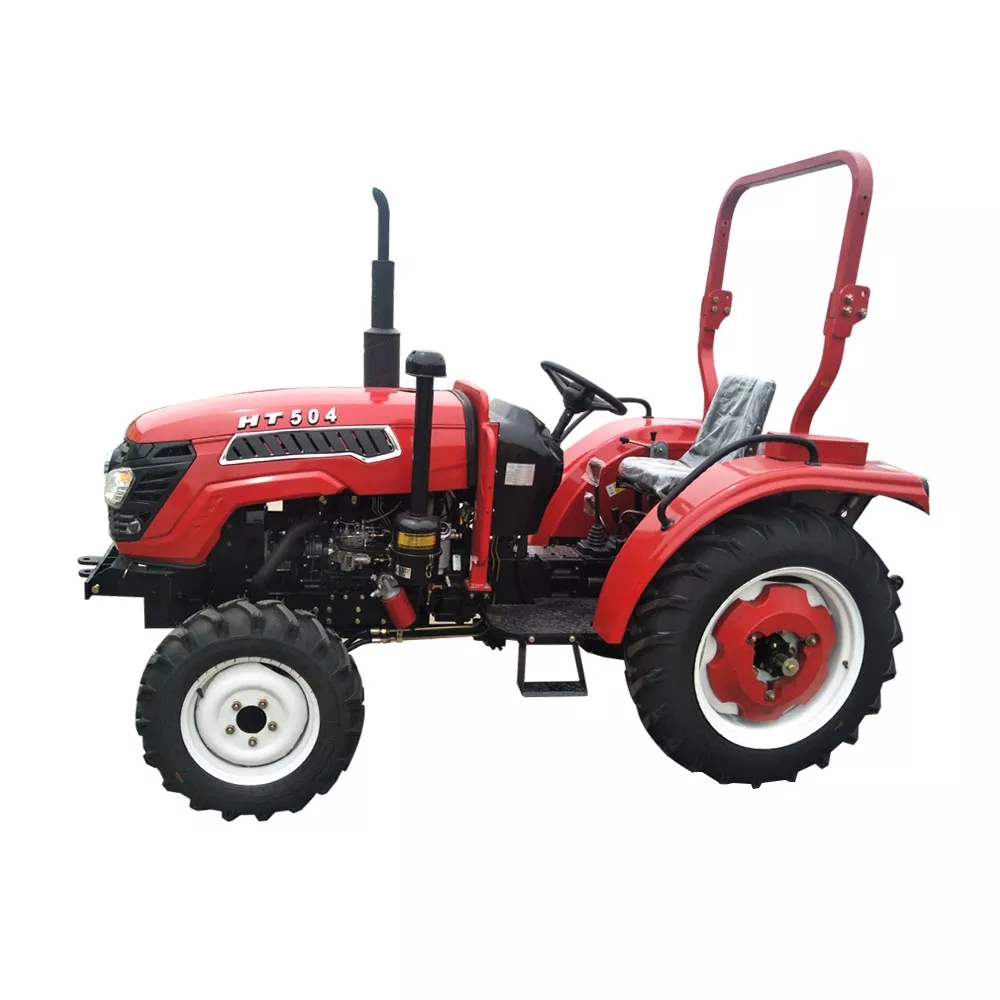

TH504 tractor |
|
Type |
4X4 wheeled type |
|
Main dimensions |
|
|
W XD X H (mm) |
3000X1300X2000 |
|
Wheel base (mm) |
1820 |
|
Front wheel (mm) |
1100 |
|
Rear wheel (mm) |
1100 |
|
Min. ground clearance (mm) |
330 |
|
When one-side braking |
2.5±0.2 |
|
No braking |
2.9±0.2 |
|
Tractor dry mass (kg) |
1500 |
|
Front/Rear Ballast (kg) |
50/60 |
|
Transmission box |
Mechanic gear box |
|
Gear shifts |
(4+1)X2 |
|
Theoretical speed (km/h) |
F2.07-31.54 R2.72-12.59 |
|
Differential |
closed, 2 planetary gear |
|
Differential lock |
Jaw type |
|
Diesel Engine |
|
|
Model |
KM495BT |
|
Type |
Vertical 4 stroke, water cooled |
|
Number of Bores |
2/3 |
|
Bore dia. X stroke (mm) |
102X105 |
|
Combustion chamber |
direct injection |
|
Rated Power (kw) |
36.76 |
|
Fuel consumption (g/kw.h) |
≤248.9g/kw.h |
|
Engine oil consumption (g/kw.h) |
≤2.04g/kw.h |
|
Front tyre size |
6.50-16 |
|
Rear tyre size |
11.2-24 |
|
Steering system |
Power steering |
|
Brake |
Shoe brake |
|
Tri-point Hitch system |
Rear mounted, ball-hinged |
|
PTO type |
Rear mounted, nonindependent |
|
PTO Rev. (rpm) |
540, 720 r/min |
