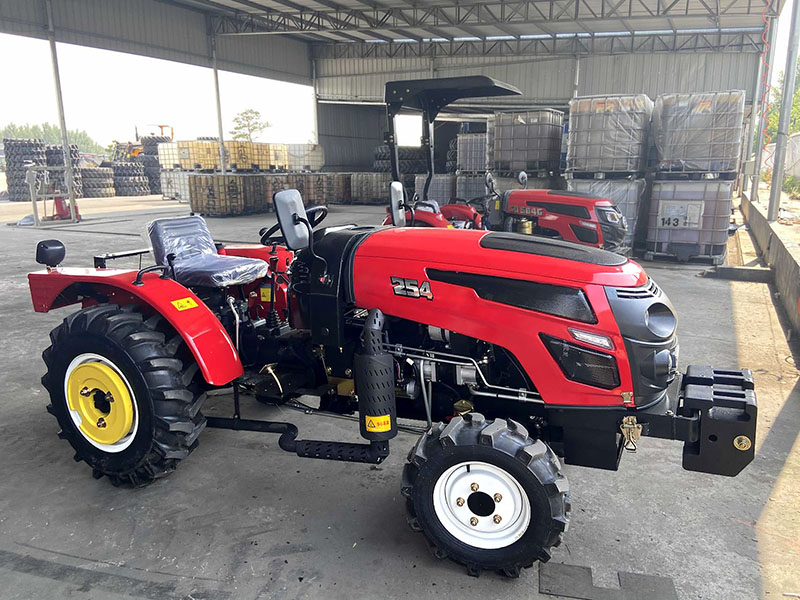

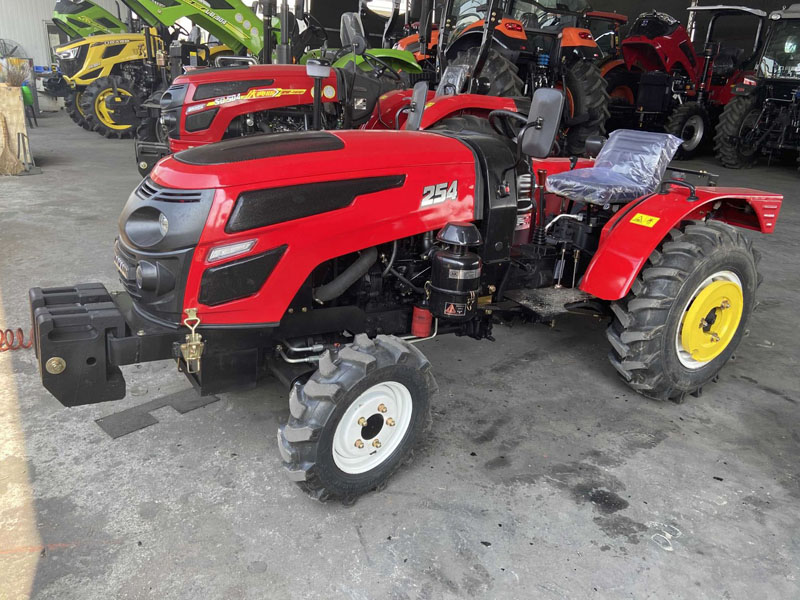

Picture of the 25HP tractor
Parameters of the 25HP tractor
| HT254-Y 25HP Tractor | |
| Model | HT254-Y |
| Technic-specification | |
| Driven model | 4WD |
| Engine | LAIDOMG KM385BT |
| Engine power | 25HP |
| Emission Standards | Ⅱ stages |
| Clutch | Single-stage type |
| PTO speed | 540/720rpm |
| Max.rated drawing power | ≥6KN |
| weight | 1290kg |
| Steering | hydraulic steering |
| Gears | 8+2 |
| Speed |
前进2.06-31.30 km/h
后退2.71-12.52 km/h
|
| Tires size | 6.5-16/11.2-24 |
| Wheel Base | 1700mm |
| Overall dimension （L*W*H） | 3350*1300*2000mm |
| Optional equipment | Front ballast |
| Rear ballast（one layer） | |
| ROPS | |
| Canopy | |
| 1 groups of hydraulic output | |
| 2 groups of hydraulic output | |
| Air compressor | |
| External Forced lifter | |
| Swing traction | |
| Fan cab | |
| Heating cab | |
| Tires 6.5-16/11.2-24 | |
| Iron frame packaging | |
| Packing |
frame/one 40 HQ in 16 sets（without cab） or
frame/one 40 HQ in 12sets（with cab）
|
