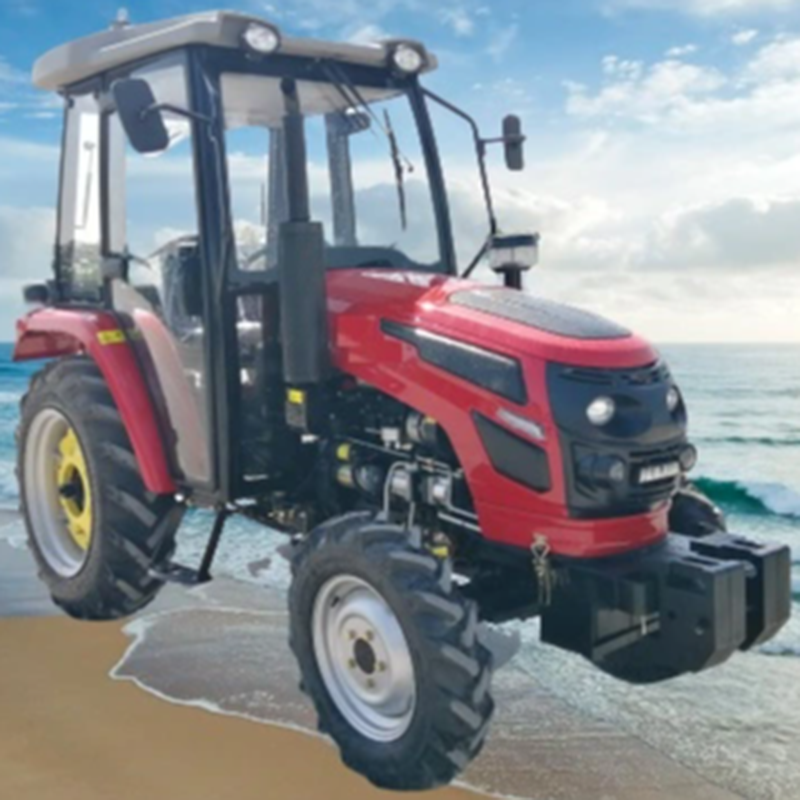

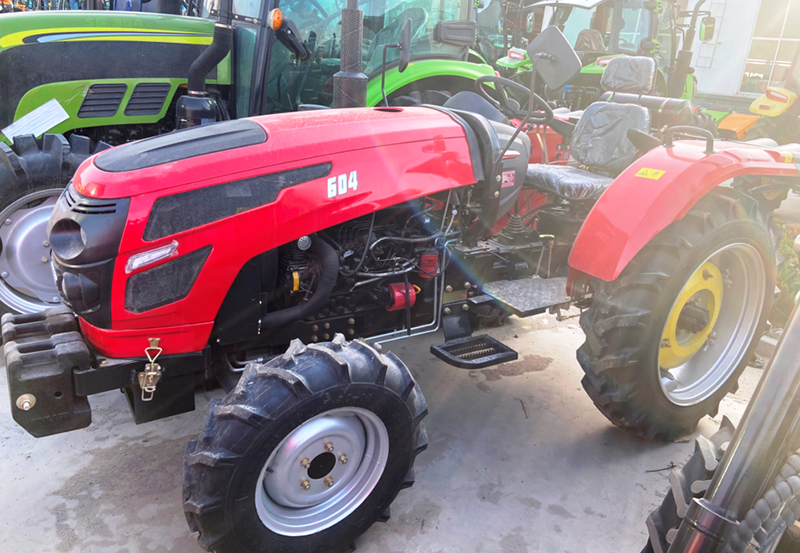

Tractor

Technic-specification

Driven model

4WD

Engine

LAIDONG KM490

Emission Standards

Ⅱ stages

Engine power

60

Clutch

Single-stage type

PTO speed

540/720rpm

PTO spline number

6

Max.rated drawing power

≥12.5KN

weight

1550kg

Steering

hydraulic steering

Gears

8+2

Speed

1.78-26.93
2.41-11.6

Tires size

6.50-16/11.2-24

Wheel Base

1760mm

（L*W*H）mm Overall dimension

3140×1350×2220

Optional equipment

Front ballast

Rear ballast（one layer）

ROPS

Sunshade

1 groups of hydraulic output

2 groups of hydraulic output

Air compressor

Fan cab

Heating cab

Swing traction

Gear 8+8

Double-stage type Clutch

Forced pressure lifter

Tires 7.5-16/11.2-28

Iron frame packaging
