HT604-X 60HP Tractor

Project Information

Project Description

HT604-X 60HP Tractor Parameter

Driven model

4WD

Engine

KM490ZT2

Engine power

60

Emission Standards

 stages

Engine Type

4-cylinder, in-line, water cooled, four stroke

Gears

8F+8R

Clutch

Double-stage type

PTO speed

540/720rpm

PTO spline number

6

Max.Traction(4WD)

≥15.1KN

Min. use weight

1750Kg

Steering

hydraulic steering

ballast

Front ballast

Tires size

6.5-16/11.2-24

L*W*Hmm Overall dimension

3500×1620×2290

Wheel Base

1900mm

Lifter

Forced pressure lifter

hydraulic output

2 groups of hydraulic output

Optional equipment

Rear ballastone layer

ROPS

Sunshade

Fan cab

Heating cab

Swing traction

Air compressor

Tires 7.5-16/11.2-28

Tires 7.5-16/13.6-24

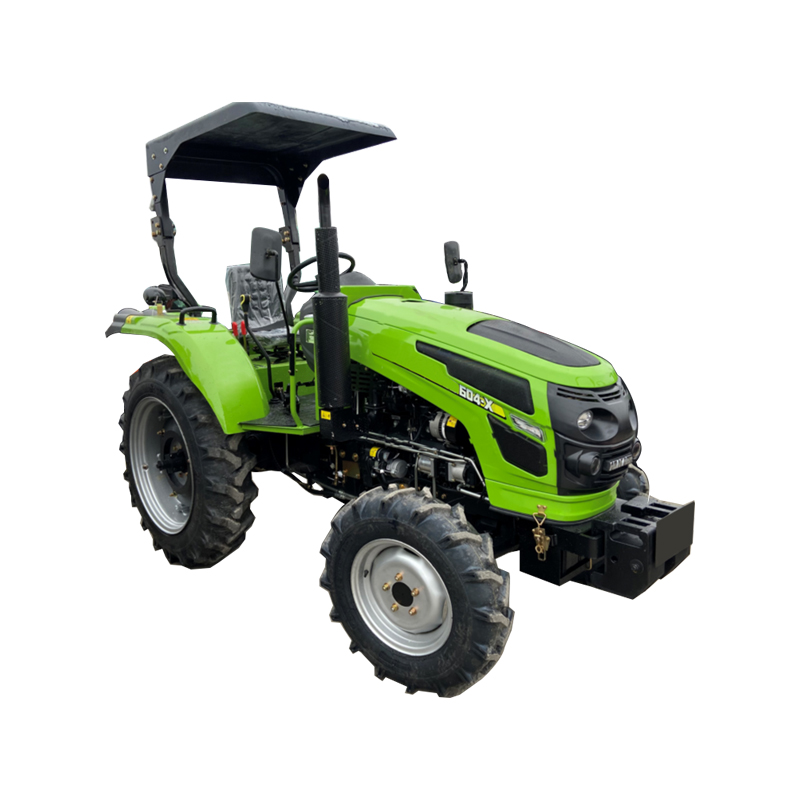

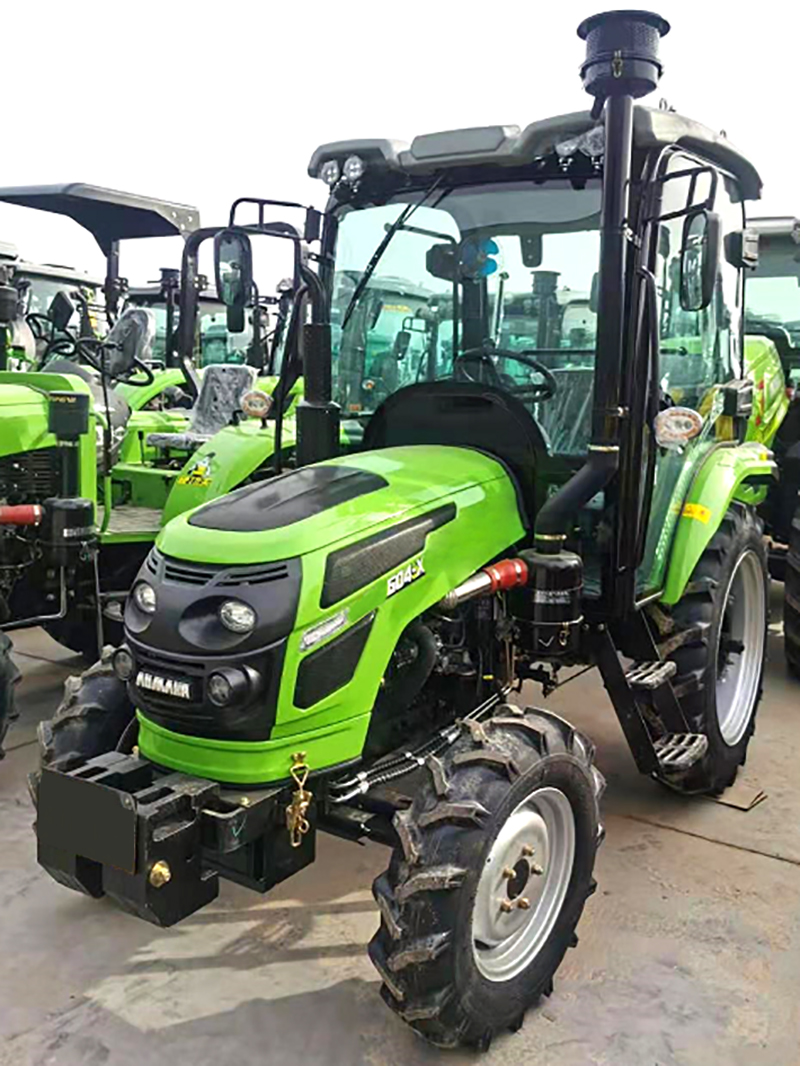

HT604-X 60HP Tractor Images
