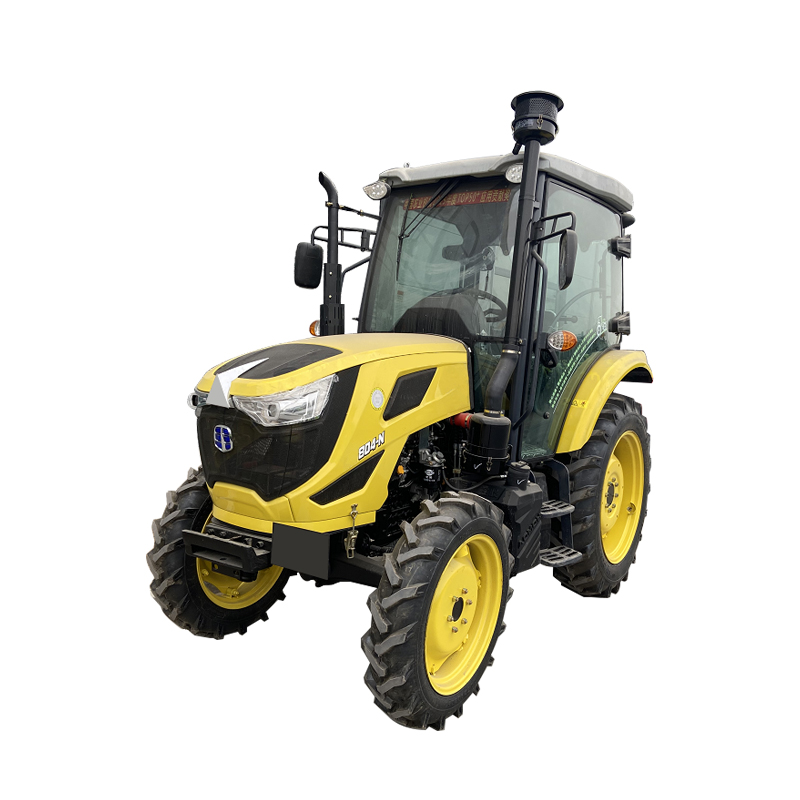

Tractor

Technic-specification

Driven model

4WD

Engine

4B5-80C31
QUANCHAI

Emission Standards

III stages

Engine power

80

Clutch

Single-stage type

PTO speed

540/760rpm

PTO spline number

6

Max.rated drawing power

≥22.61KN

weight

2400kg

Steering

hydraulic steering

Gears

8+2

Speed

1.78-26.93
2.41-11.6

Tires size

8.3-24/11-32

Wheel Base

1990mm

（L*W*H）mm Overall dimension

3850×1650×2620

ballast

Front ballast+Rear ballast（one layer）

Lifter

Forced pressure lifter

hydraulic output

2 groups of hydraulic output

Optional equipment

Tires  8.3-20/12.4-28

Fan cab

Heating cab

AC cab

Air compressor

Replacement of simulation wheels for cab model packing
