*High fuel efficiency,Super power
*Lower fuel Consumption,High configuration, Superior performance
*Saving energy and protecting environment
|
Model |
HT30 |
|
Total Length |
4180mm |
|
Total Width |
1500mm |
|
Total Height |
2128mm |
|
Ground Clearance |
458 |
|
Ground Pressure |
3000 |
|
Ground Pressure |
38 |
|
PERFORMANCE |
|
|
Max. Digging Height |
3900mm |
|
Max. Digging Radius |
4040mm |
|
Max. Digging Depth |
2500mm |
|
Max. Dumping Height |
2600mm |
|
Slewing Angle |
360° |
|
Grade ability |
25° |
|
Bucket Capacity |
0.1m3 |
|
Bucket Width |
500mm |
|
Swing angle of boom |
70/50L/R |
|

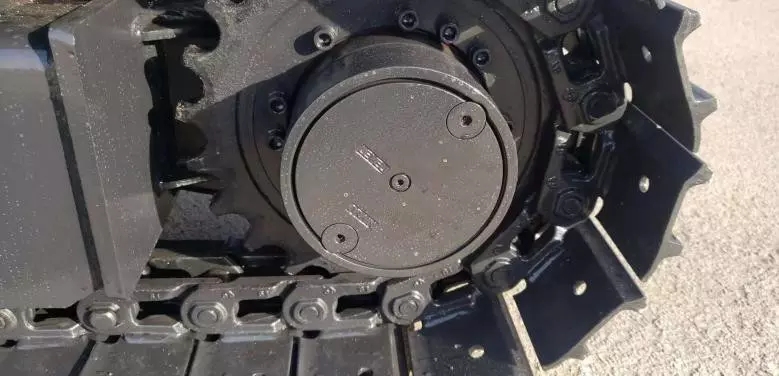

TRACK |
|
|
Track Gauge |
1150mm |
|
Track Width |
250/260mm |
|
Track Length (on ground) |
2300mm |
|
HYDRAULIC SYSTEM |
|
|
Main Pump |
Triple Pump |
|
Main Pressure |
18Mpa |
|
Max. Rpm of the pump |
2500r/min |
|
Pump Displacement |
28ml/r |
|

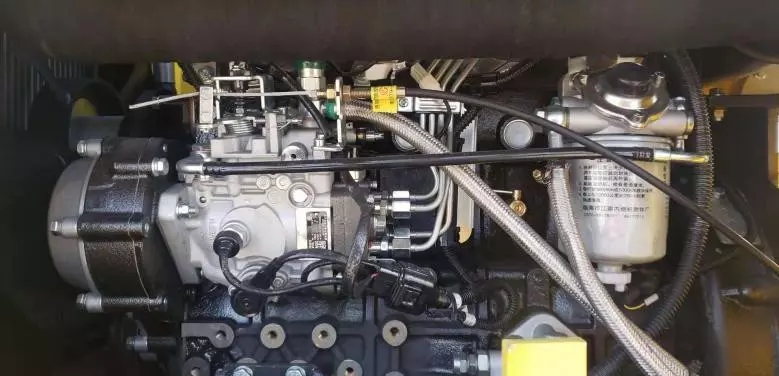

ENGINE |
|
|
Model |
CHANGCHAI390 /Yanmar Engine 3TNV88 |
|
Output |
20/2200 / 19.6/2200KW/rpm |
|
|
|
|

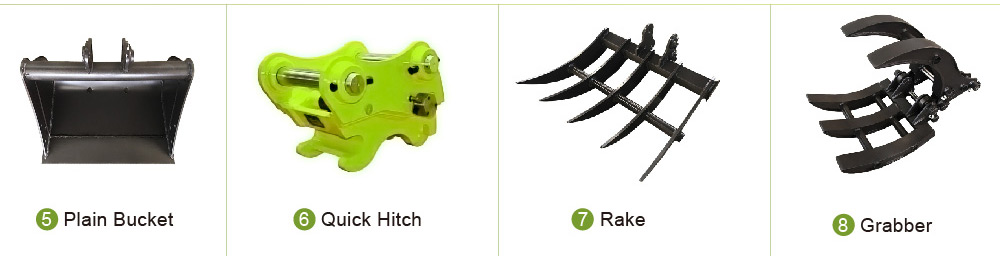

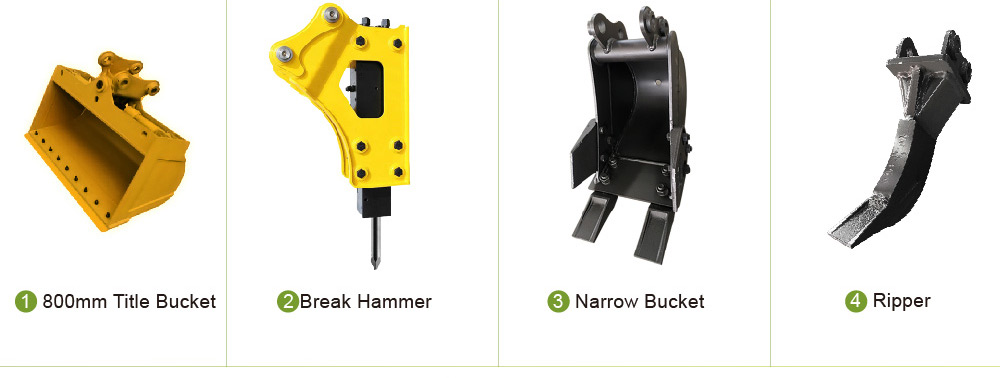

Accessories
One Machine, multi-usage.Quick and easy replacement of accessories
|
|
|
