HT90 9T Crawler Excavator

Project Information

Project Description

HT90 9T Crawler Excavator Parameter

Model

HT90

Machine Size

Standard Bucket capacity

0.4m3

Overall dimension(L*W*H)

6410mm*2278mm*2630mm

Swing speed

12rpm

Height of cabin

2630mm

Maximum Grade ability

35°

Track length on ground(Axle base)

2209mm

Maximum Bucket digging force

58KN

Track gauge

1750mm

Maximum Arm digging force

40KN

Minimum Ground clearance

375mm

Hydraulic system pressure

27.5Mpa

Swing radius at tail

1813mm

Machine weight

9000kg

Working Range

Fuel tank

110L

Maximum Digging height

7050mm

Hydraulic oil tank

100L

Maximum Dumping height

5188mm

Engine

Maximum Digging depth

4015mm

Emission Standard

Tier 3/ Stage lll

Maximum Vertical digging depth

3550mm

Make/Model

CUMMINS/QSF2.8

Maximum Digging radius

6540mm

Power /Rotation speed

53kw(72HP)@2200rpm

Minimum swing radius

2140mm

Number of cylinder

4

Maximum Lifting height of blade

370mm

Track System

Maximum Cutting depth of blade

344mm

Maximum Travel speed

2.3/4km/h

Width of track shoe

450mm

Number of track shoe per side

39pcs

Number of upper roller per side

1

Number of bottom roller per side

5

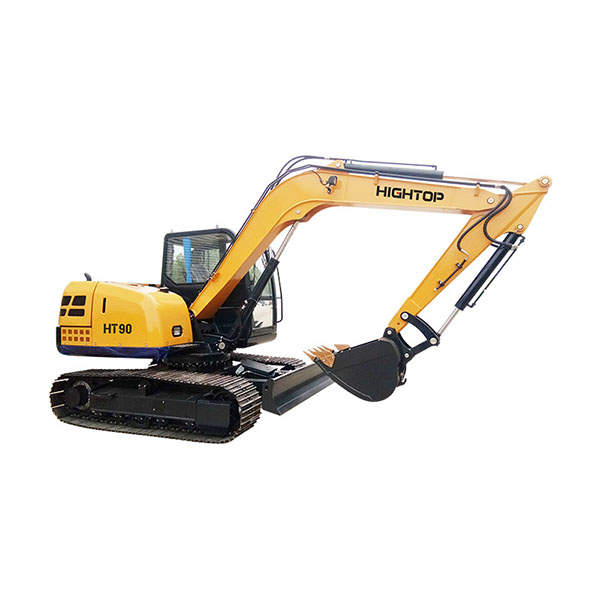

HT90 9T Crawler Excavator Images
