HT80 8T Wheel Excavator

Project Information

Project Description

HT80 8T Wheel Excavator Parameter

TECHNOLOGY SECIFICATION






Machine

Specfication

Operating Weight

8000 kg








Performance

Parameter

Engine power

55/2200 kw/rpm

Bucket Capacity

0.3 m3

Max.engine torque

269/1610 N.m/rpm

Transport length

6442 mm

Hydraulic pump

Shimadzu-SGPIA27F2H9

Transport width

2152 mm

Pilot pressure

3 Mpa

Transport height

2835 mm

Working pressure

20 Mpa

Tail swing Radius

2057 mm

Rated flow

118.8 L/min

Track Width

2600 mm

Hydraulic tank capacity

116 L

Min.ground clearance

318 mm

fuel capacity

138L





Working Range

Movable arm length

3500 mm

Rotating speed

10 rpm

Arm length

1800 mm

Max. travelling speed

35 km/h

Max.excavation distance

6563 mm

Digging force of bucket

41.4 kN

Max.Digging depth

4462 mm

Max.drawbar pull

47 kN

Max.Digging height

6680 mm

Gradeability

30°

Max.dumping height

4876 mm

Bulldozer blade(W×L)

2140/310 mm

Min. turning radius

2440mm

Certified capacity

27+27 ml/r

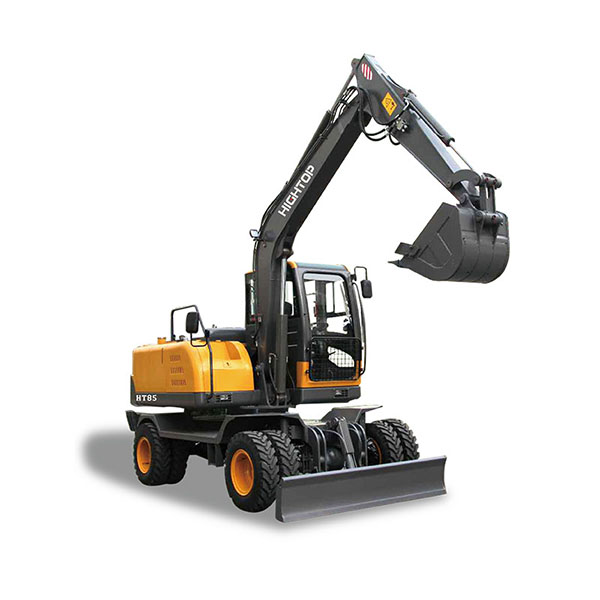

HT80 Wheel Excavator Images
