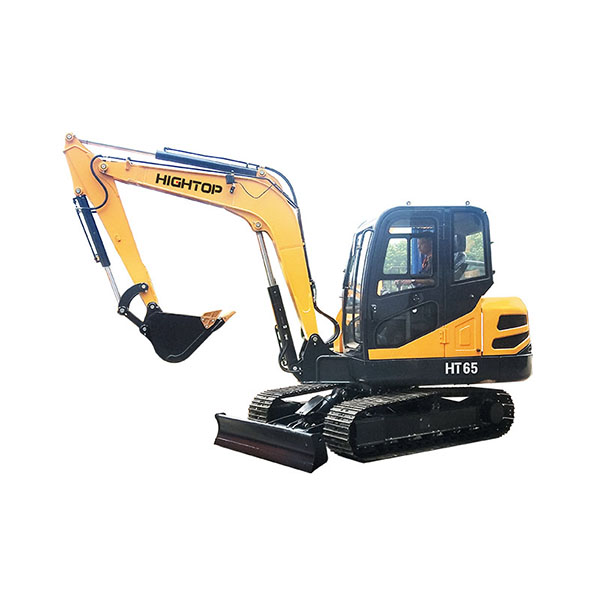

Mini Excavator

Model

HT65

Machine Size

Standard Bucket capacity

0.21m3

Overall dimension(L*W*H)

5940mm*1880mm*2570mm

Swing speed

11rpm

Height of cabin

2600mm

Maximum Grade ability

35°

Track length on ground(Axle base)

1990mm

Maximum Bucket digging force

48KN

Track gauge

1480mm

Maximum Arm digging force

35KN

Minimum Ground clearance

353mm

Hydraulic system pressure

28Mpa

Swing radius at tail

1689mm

Machine weight

6100kg

Working Range

Fuel tank

87L

Maximum Digging height

5499mm

Hydraulic oil tank

100L

Maximum Dumping height

3845mm

Engine

Maximum Digging depth

3808mm

Emission Standard

Tier 3/ Stage lll

Maximum Vertical digging depth

2983mm

Make /Model

Kubota Engine /V2607

Maximum Digging radius

6128mm

Power /Rotation speed

42.4kw(58HP)@2000rpm

Minimum swing radius

2607mm

Number of cylinder

4

Maximum Lifting height of blade

376mm

Track System

Maximum Cutting depth of blade

474mm

Maximum Travel speed

2.4/4.3 km/h

Width of track shoe

400mm

Number of track shoe per side

40pcs

Number of upper roller per side

1

Number of bottom roller per side

5
