HT15-26 Backhoe Loader

Project Information

Project Description

HT15-26 Backhoe Loader Parameter

Model:HT15-26

DIMENSION

ENGINE

Overall size(mm)

5800*1850*2750

Engine Model

YUNNEI YN27GBZ

Wheel base(mm)

2315

Type

Four-Stroke

Wheel tread(mm)

1500

Rated Power(KW)

58

Min. Ground Clearance(mm)

220

Rated Rotary speed(r/min)

2400

PERFORMANCE PARAMETER

Cylinders - inner diameter

3-90(4-90)

Pressure of the system(MPa)

16

DRIVE SYSTEM

Machine weight(Kg)

4800

Gearbox

Fixed shaft power shift

Max. speed(Km/h)

26

Optional Gears

Front 2 rear2

Max Climb Capability(°)

25

Hydraulic torque converter

ZL29A

Min. turning radius(mm)

4000

EPS

DIGGING PARAMETER

type

Articulated full hydraulic steering

Max. Digging depth(mm)

2700

Steering angle(°)

33

Dumping Height(mm)

2200

BRIDGE

Max. Digging Radius(mm)

4600

TYPE

130

Budcket width(mm)

600

TYRE

Bucket capacity(m3 )

0.2

size

23.5-16

Max. Digging height(mm)

4200

Front wheel pressure(KPa)

250

Max. force(KN)

28

Back wheel pressure(KPa)

250

DiggingRotary angle (°)

180

service brake

Oil brake drum brake

LOADER PARAMETER

Parking brake

manual

Max.unloading height(mm)

2800

FUEL

Max. Unloading distance(mm)

800

Fuel tank(L)

40

Loading bucket width(mm)

1800

Hydraulic oil tank(L)

40

Loading bucket width(m3 )

0.7

OTHERS

Max.Loading Lifting Capacity(mm)

4200

Driving type

4*4 wheel

Maximum rising power(KN)

36

Variable speed type

hydraulic transmission

Loading bucket working time(s)

12

Brake distance(mm)

450

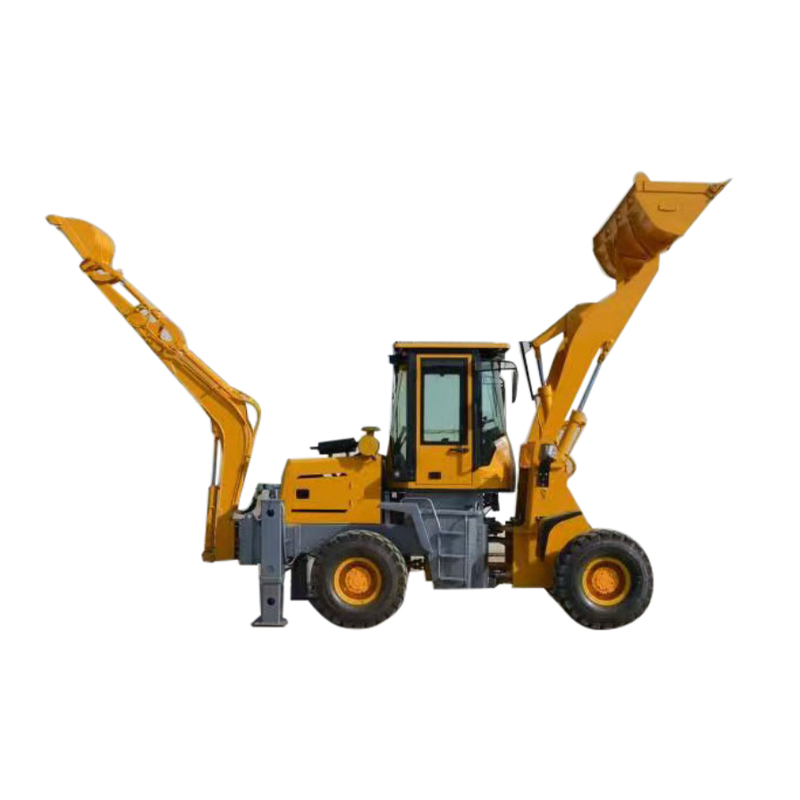

HT15-26 Backhoe Loader Images
