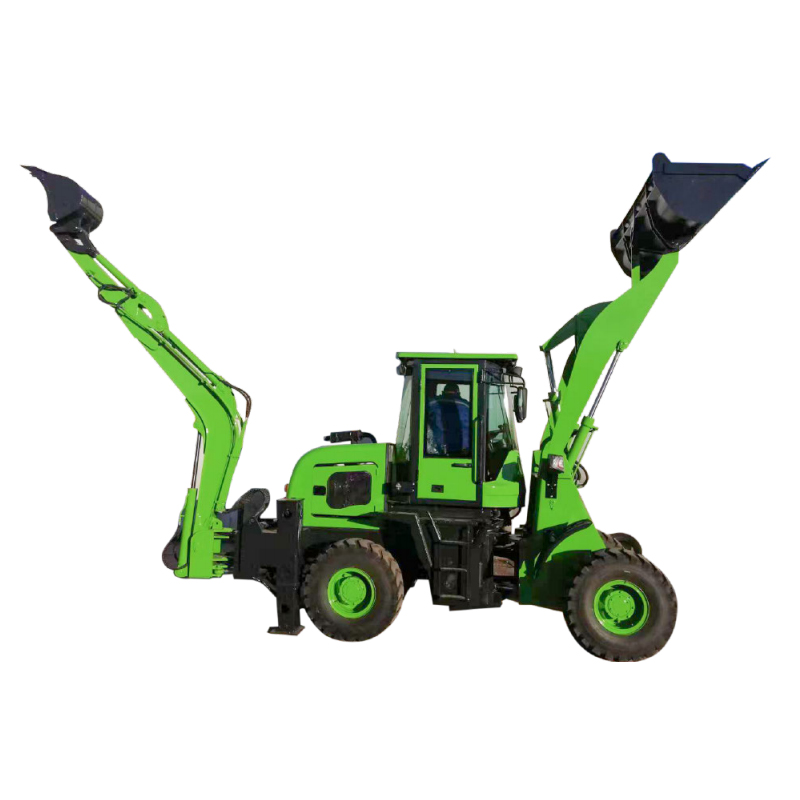

Loader

Model:HTHT10-20

DIMENSION

ENGINE

Overall size(mm)

5500*1750*2650

Engine Model

YUNNEI YN25GB

Wheel base(mm)

2070

Type

Four-Stroke

Wheel tread(mm)

1475

Rated Power(KW)

37

Min. Ground Clearance(mm)

250

Rated Rotary speed(r/min)

2400

PERFORMANCE PARAMETER

Cylinders - inner diameter

3-90(4-90)

Pressure of the system(MPa)

16

DRIVE SYSTEM

Machine weight(Kg)

3400

Gearbox

Fixed shaft power shift

Max. speed(Km/h)

25

Optional Gears

Front 2 rear2

Max Climb Capability(°)

25

Hydraulic torque converter

ZL28F

Min. turning radius(mm)

3500

EPS

DIGGING PARAMETER

type

Articulated full hydraulic steering

Max. Digging depth(mm)

2000

Steering angle(°)

33

Dumping Height(mm)

1800

BRIDGE

Max. Digging Radius(mm)

2700

TYPE

130

Budcket width(mm)

400

TYRE

Bucket capacity(m3 )

0.1

size

20.5-16

Max. Digging height(mm)

2600

Front wheel pressure(KPa)

250

Max. force(KN)

25

Back wheel pressure(KPa)

250

DiggingRotary angle (°)

180

service brake

Oil brake drum brake

LOADER PARAMETER

Parking brake

manual

Max.unloading height(mm)

2800

FUEL

Max. Unloading distance(mm)

800

Fuel tank(L)

30

Loading bucket width(mm)

1800

Hydraulic oil tank(L)

30

Loading bucket width(m3 )

0.5

OTHERS

Max.Loading Lifting Capacity(mm)

3300

Driving type

4*4 wheel

Maximum rising power(KN)

36

Variable speed type

hydraulic transmission

Loading bucket working time(s)

12

Brake distance(mm)

330
