HT08-12 Backhoe Loader

Project Information

Project Description

HT08-12 Backhoe Loader Parameter

Model:HT08-12

DIMENSION

ENGINE

Overall size(mm)

5100*1350*2580

Engine Model

Changchai 390(YUNNEI 490)

Wheel base(mm)

1910

Type

Three StrokeFour-Stroke

Wheel tread(mm)

1100

Rated Power(KW)

25(37)

Min. Ground Clearance(mm)

250

Rated Rotary speed(r/min)

2400

PERFORMANCE PARAMETER

Cylinders - inner diameter

3-90(4-90)

Pressure of the system(MPa)

16

DRIVE SYSTEM

Machine weight(Kg)

2200

Gearbox

Fixed shaft power shift

Max. speed(Km/h)

20

Optional Gears

Front 2 rear2

Max Climb Capability(°)

25

Hydraulic torque converter

ZL28F

Min. turning radius(mm)

3000

EPS

DIGGING PARAMETER

type

Articulated full hydraulic steering

Max. Digging depth(mm)

1500

Steering angle(°)

33

Dumping Height(mm)

1500

BRIDGE

Max. Digging Radius(mm)

2000

TYPE

130

Budcket width(mm)

350

TYRE

Bucket capacity(m3 )

0.08

size

8.25-16

Max. Digging height(mm)

2600

Front wheel pressure(KPa)

250

Max. force(KN)

25

Back wheel pressure(KPa)

250

DiggingRotary angle (°)

180

service brake

Oil brake drum brake

LOADER PARAMETER

Parking brake

manual

Max.unloading height(mm)

2200

FUEL

Max. Unloading distance(mm)

800

Fuel tank(L)

20

Loading bucket width(mm)

1300

Hydraulic oil tank(L)

20

Loading bucket width(m3 )

0.4

OTHERS

Max.Loading Lifting Capacity(mm)

3000

Driving type

4*4 wheel

Maximum rising power(KN)

28

Variable speed type

hydraulic transmission

Loading bucket working time(s)

12

Brake distance(mm)

300

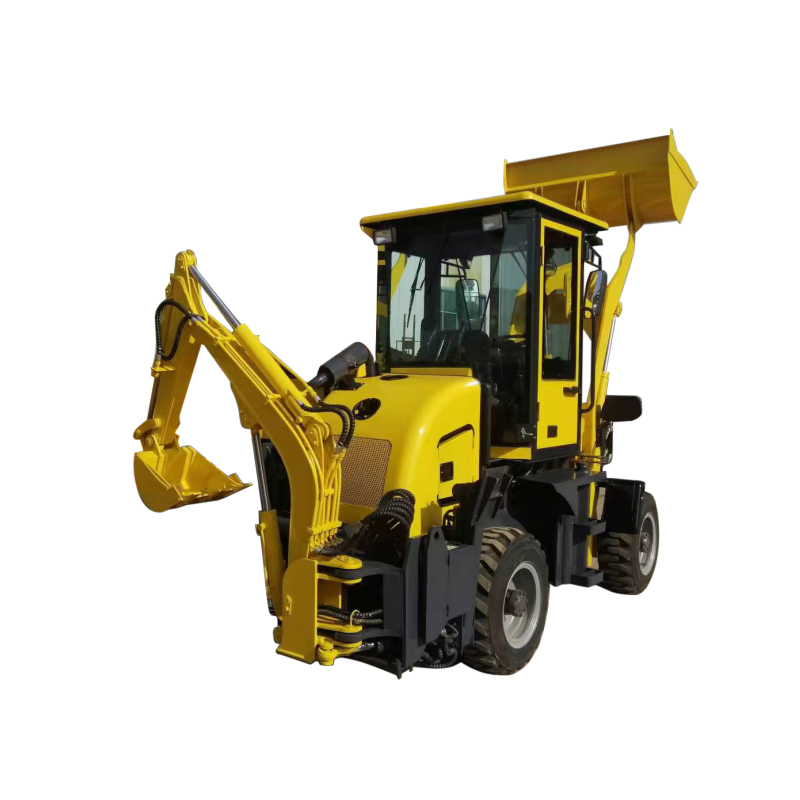

HT08-12 Backhoe Loader Images
