HT926 Wheel Loader

Project Information

Project Description

HT926 Wheel Loader Parameter

Model:HT926

Model

HT926-D1

HT926-D2

HT926-D3

HT926-D4

Rated contained mass

2000kg

2000kg

2000kg

2000kg

Total Weight

5230kg

5230kg

5230kg

5330kg

Bucket capacity

0.78m³

0.78m³

0.78m³

0.78m³

Bucket width

2020mm

2020mm

2020mm

2020mm

Size(L*W*H)

6270*1960*2690mm

6370*1960*2690mm

6470*1960*2690mm

6570*1960*2690mm

Wheelbase

1560mm

1560mm

1560mm

1560mm

Axle spacing

2445mm

2445mm

2445mm

2600mm

Max.unloading height

3500mm

3900mm

4200mm

4500mm

Min.turning radius

4900mm

4900mm

4900mm

4900mm

Mini.ground clearance

320mm

320mm

320mm

320mm

Boom lift

5.55s

5.55s

5.55s

5.55s

Boom down

4.74s

4.74s

5.74s

5.74s

Trinomial sum

10.83s

10.83s

11.83s

11.83s

Driving speed



Low(F/R)

6.5 km/h

6.5 km/h

6.5 km/h

6.5 km/h



Low(F/R)

11 km/h

11 km/h

11 km/h

11 km/h



High(F/R)

21 km/h

21 km/h

21 km/h

21 km/h



High(F/R)

35 km/h

35 km/h

35 km/h

35 km/h

Standard configuration



Engineering bucket,

265 split high and low

speed torque

converter, cast steel

axle with four wheel

disc brakes on the

centre wheel side



Engineering bucket,

265 split high and low

speed torque

converter, cast steel

axle with four wheel

disc brakes on the

centre wheel side



Grain hopper, 265 split

high and low speed

torque converter, cast

steel axle with four

wheel disc brakes on

the middle wheelside



Engineering bucket,

265 split high and low

speed torque

converter, cast steel

axle with four wheel

disc brakes on the

centre wheel side



Engine



Engine model

416-88M22

416-88M22

416-88M22

416-88M22



Rated power

74kW

74kW

74kW

74kW



Rated speed

2400r/min

2400r/min

2400r/min

2400r/min



Emission Standards

Europe II

Europe II

Europe II

Europe II



Engine

QUANCHAI

QUANCHAI

QUANCHAI

QUANCHAI

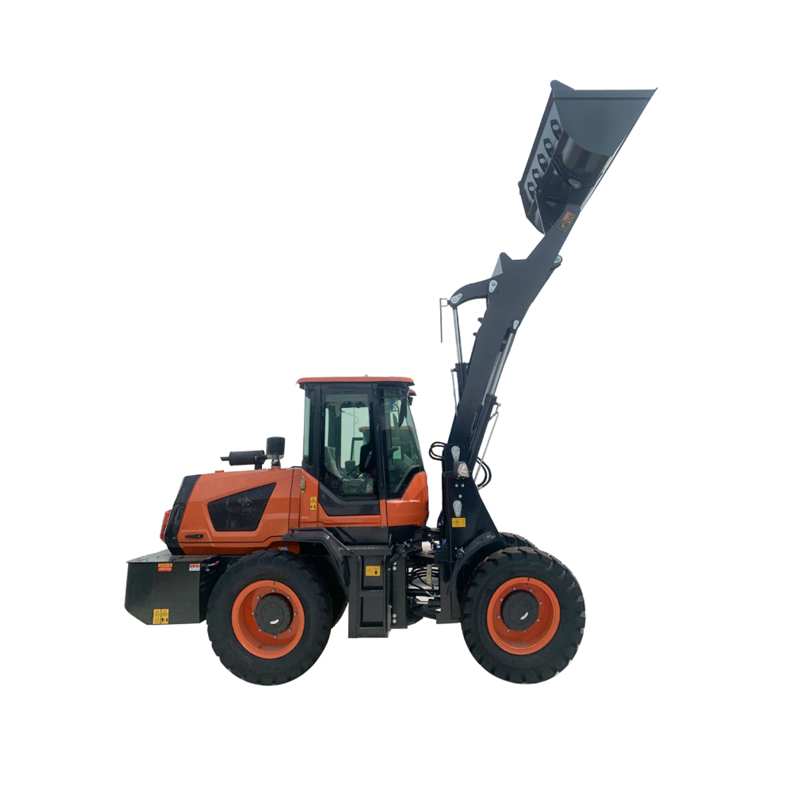

HT926 Wheel Loader Images
