Project Description

HT150E Electric Mini Loader Instruction

Beautiful appearance, compact structure,standard forklift operator console, high safety factor, five 120 maintenance-free batteries, equipped with intelligent 60V DC controller, brake power off, under voltage protection, over current protection, overload protection, speed limit protection, Under speed protection, front and rear axle differential protection. The above protection functions make the motor more energy efficient and durable, and can work continuously for six hours.

HT150E Electric Mini Loader Parameter

Model:HT150E
Overall dimension (L*W*H)	2700 * 1160 * 2175 mm
Total weight	1260 kg
Loadingbucket capacity	0.3m3
Max. Lifting height	2520mm
Max. Dump height	1738 mm
Max. Dump distance	700 mm
Rated load capacity	500kg
Turning radius	3100 mm
Travel speed	15km/h
Min. Ground clearance	200 mm
Wheel tread	1150 mm
120 Battery x5	60V（DC）
Boom lifting time	5—7s

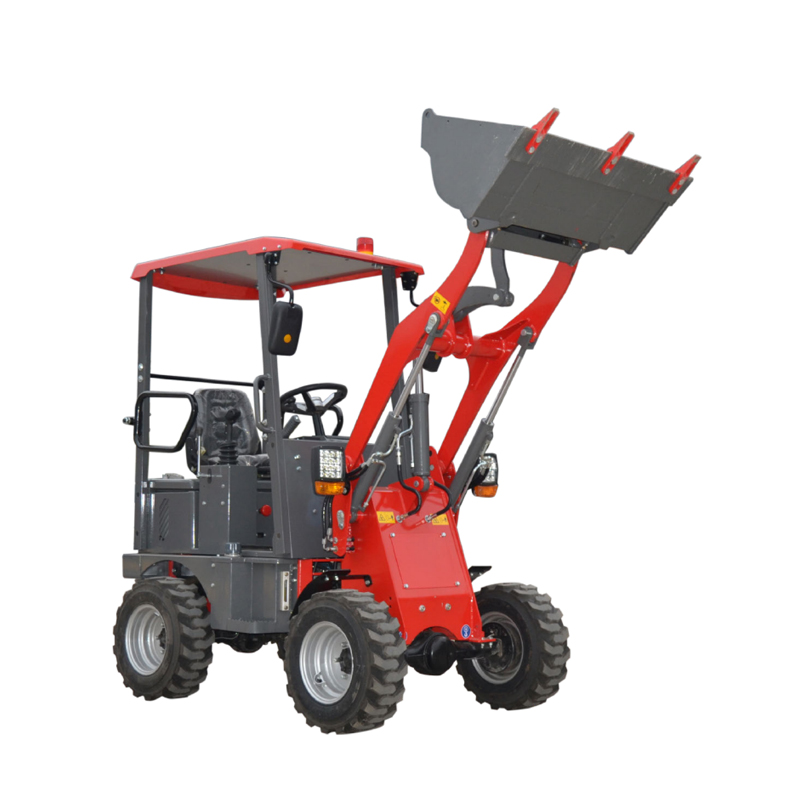

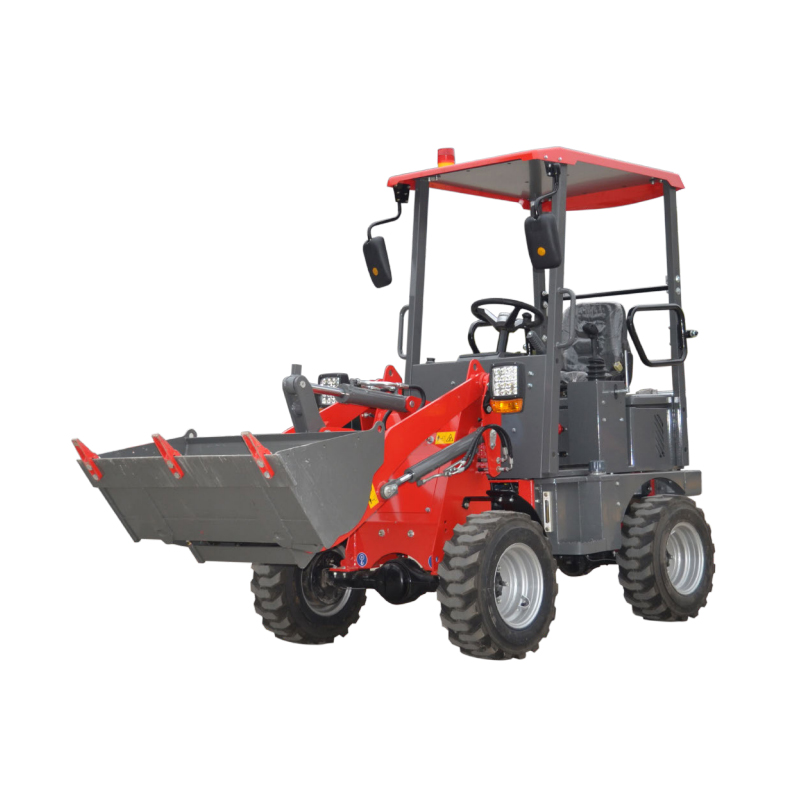

HT150E Electric Mini Loader Images
