HT960 wheel loader

Project Information

Project Description

Description of HT960 Small Wheel Loader :

Baking paint process adopted on the whole machine to ensure a stronger adhesion and be colorfast.

Electrophoresis frame adopted to ensure resistant to rust.

Features of HT960 Small Wheel Loader :

Wheel loaders Can be equipped with a variety of attachments to achieve a multi-function,multi-purpose machine.

Technical parameters of HT960 Small Wheel Loader :

HT960

Wheel Loader Basic Information

Overall Operating Weight

19000kg

L*W*H

8360*2950*3600mm

Wheel base

3260mm

Wheel Tread

2250mm

Bucket Capacity

3.5m³

Rated Load

6000kg

Max. Breakout Force

200KN

Max.Dump Height

3.16m

Engine Information

Brand

WEICHAI

Model

WEICHAI WD10G240E21

Type

inline,water cooled,dir.inject,fourstrokees

Rated Power

175KW

Rated Speed

2200r/min

Steering System Drive System Information



Tire Size

26.5-25

Steering Angle

38°±1

Pattern of Wheel Side Moderation

Single stage planetary

Main Reducer

Spiral bevel gear first reduction

Type

38km/h

Max.Travel Speed

HANGCHI ZL60

Transmission Information



Information

Electronic control torque converter and gearbox combination

Transmission

2forward 1reverse

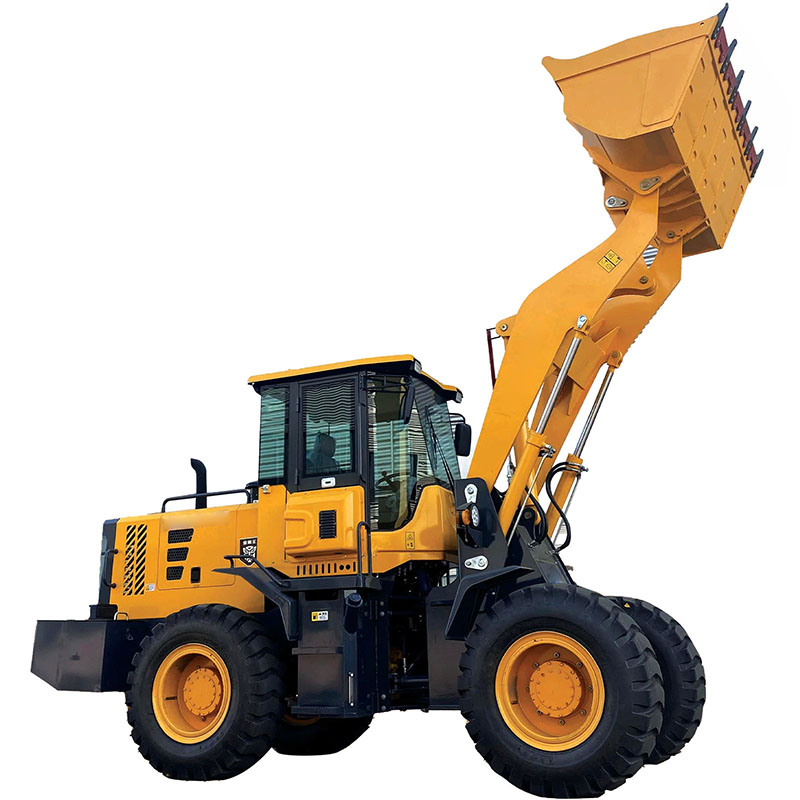

Images of Small Wheel Loader
