HTS35 Mini Skid Steer Loader

Project Information

Project Description

HTS35 Mini Skid Steer Loader Instruction

1. The main components of the product are highly configured. The main pump adopts the Italian plunger pump, and the walking motor adopts the American White motor. The engine is Zhejiang Xinchai 490.

2. The whole machine has beautiful appearance, compact structure and small volume, which can be used for flexible and flexible operation in narrow places;

3. Equipped with hydraulic control, the steering is labor-saving, and the operation is comfortable and convenient.

4. Can be equipped with a variety of attachments to achieve a multi-function, multi-purpose machine


HTS35 Mini Skid Steer Loader Parameter


Model:HTS35

Height at maximum extension(mm)

3300

Rated operating capacity(kg)

500

Height to bucket hinge pin(mm)

2725

Tipping load(kg)

1000

Width with bucket(mm)

1400

Bucket capacity(m3)

0.3

Track width(mm)

1080

Operationg weight(kg)

2200

Wheelbase(mm)

897

Max. travel speed(km/h)

10

Ground clearance(mm)

140

Hydraulic pump flow(L/min)

60

Dump angle

40°

Fuel tank capacity(L)

60

Dumping height(mm)

2050

Tires

8.5-15

Maximum reach(mm)

790

Overall dimensions(mm)

2950×1350×2000

Angle of departure

20°





Engine Maker/Model

Xinchai 490





Net power

37Kw/2500rpm





Type

4Cylinder in-line, Water cooled, 4 stroke,  Diesel engine





Standard



Standard bucket

Standard



Prehest starting assist system

for extreme cold weather



Open cab

Hydraulic joystick controls

Cab fitted with a heater as standard

Auxiliary hydraulic couplers

Air conditioner

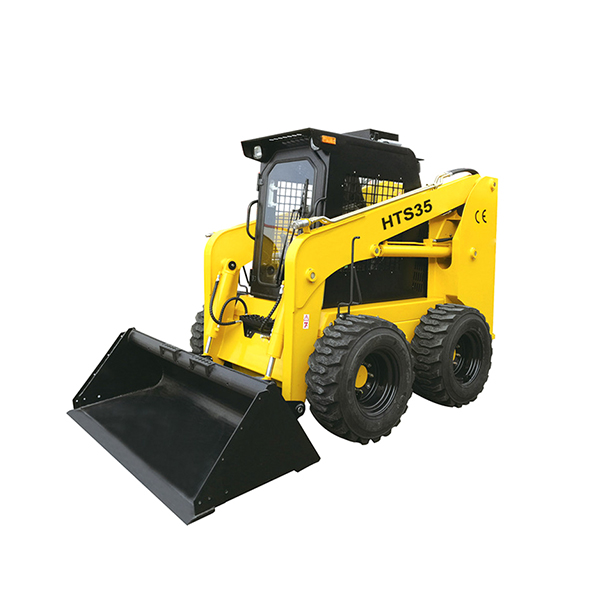

HTS35 Mini Skid Steer Loader Images
