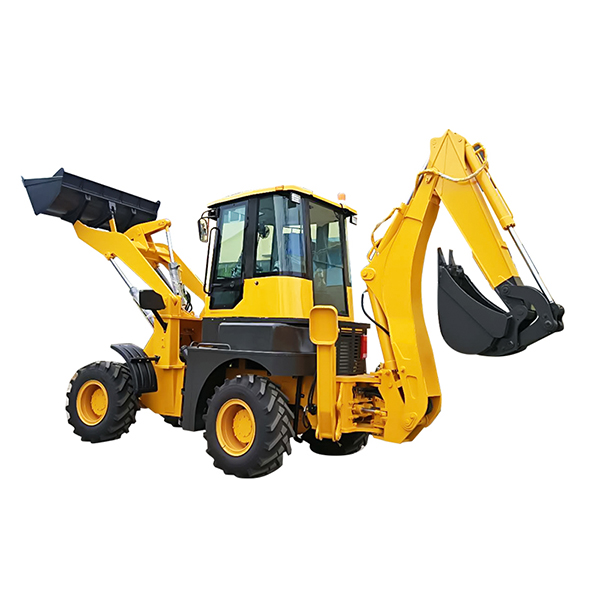

Model : HT30-25 |
|||
|
Overall Operating Weight |
6600KG |
Engine |
|
|
Transport Dimension |
Model |
YUNNEI 4102 Turbo |
|
|
mm L*W*H |
7600x2100x3100 |
Type: In Line Direct injection Four-Stroke Water Cooling |
|
|
Wheel base |
2250mm |
Rated Power |
76KW |
|
Min. Ground Clearance |
300mm |
Rated Speed |
2400r/min |
|
Bucket Capacity |
1.3m3 |
Displacement |
4.4L |
|
Breakout Force |
38KN |
Steering System |
|
|
Loading Lifting Capacity |
2500KG |
Steering Angle |
+-360 |
|
Bucket Dumping Height |
3500mm |
Min. turning radius |
5018mm |
|
Bucket Dumping Distance |
1022mm |
Pressure of the system |
12Mpa |
|
Digging Depth |
52mm |
Axle |
|
|
Backhoe Capacity (Width) |
0.3m3(520mm) |
Model |
Wheel Hub Reducer |
|
Max. Digging Depth |
4082mm |
Final Reducer |
Single Stage Final Reducer |
|
Swing Angle of backhoe |
1900 |
Transmission System |
|
|
Max. Pulling Force |
39KN |
Torque Converter |
|
|
Gearbox |
Model |
YJ280 |
|
|
Type |
Power Transmission |
Type |
Single- stage Three Elements |
|
Gears |
Two Gears Ahead Two Gears Astem |
Cooling Method |
Oil-cooling Pressure Circulation |
