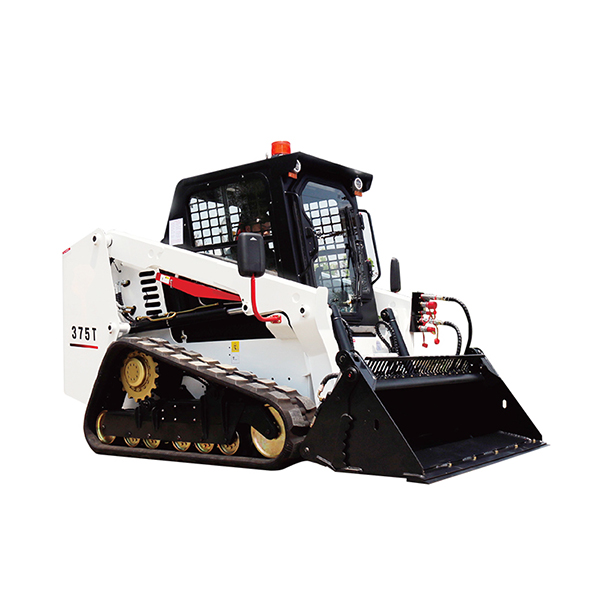

Loader

Model:HT-375T

Loading capacity

1000kg

Front turning radius with bucket(mm)

2210

Engine power

69kw

Rear turning radius (mm)

1786

Bucket capacity

0.5m3

Tread width, centerline to centerline (mm)

1506

Flow output

80 L/min

Width between outside of two wheels (mm)

1850

Operating weight

3900kg

Bucket width (mm)

1880

Overall operating height (mm)

4000

Engine Power

69kw

Height to bucket hinge pin (mm)

3100

Chain type

100H

Height to top of cab (mm)

2028

Speed-standard

11.6 km/h

Height to bottom of level bucket(mm)

2960

Speed-high

20km/h

Overall length without bucket (mm)

2733

Tubeless tires

ubber tracked

Overall length with bucket (mm)

3523

Solid tires optional

1000kg

Dumping angle at maximum height(° )

40

Rated loading capacity

2000kg

Dumping height (mm)

2465

Tipping loading

Radial

Dumping reach (mm)

610

Lifting type

2560kg

Rollback of bucket on ground (° )

30

Breakout force, curl

2560kg

Rollback of bucket at full height(° )

98

Breakout force lift

2560kg

Wheelbase (mm)

1150

Total cycle time

10.2s

Ground clearance (mm)

215

Bucket capacity

0.55m3

Angle of departure(° )

26

System pressure

210 bar

Turning radius front without bucket (mm)

1350

Hyraulic pump output flow

80 L/min

A/C

Standard

High flow pump output

128L/min

FUEL TANK

90L

Kerb wight with bucket

3600 kg

High flow output

128L /min
