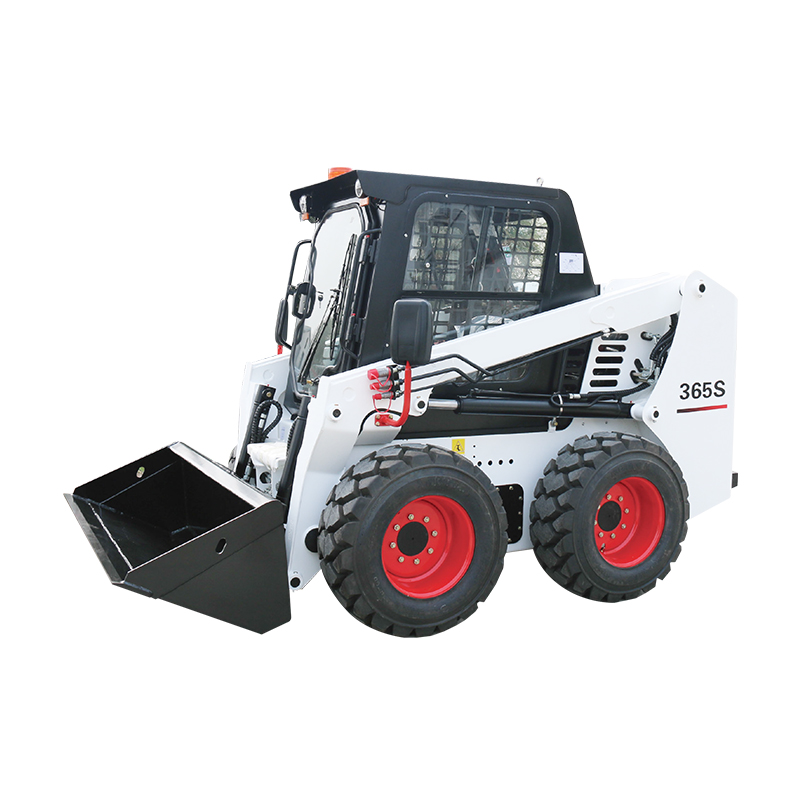

Loader

Model:HT-350S

Loading capacity

700kg

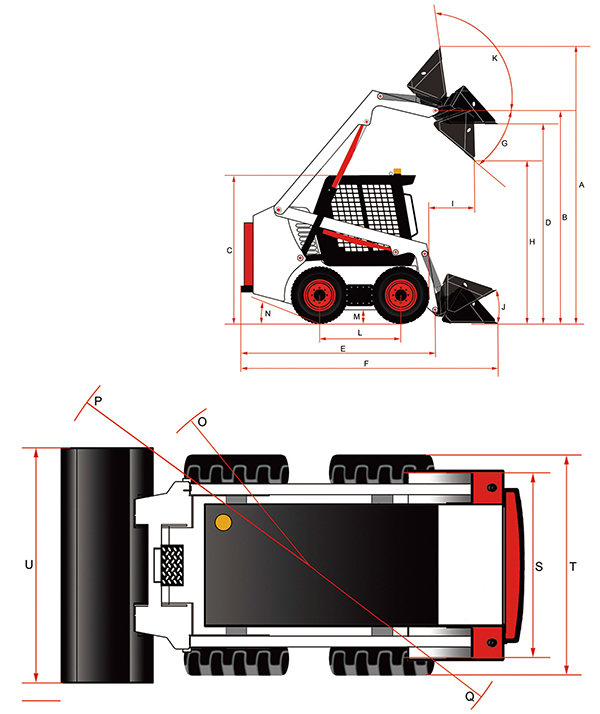

Front turning radius with bucket(mm)

2032

Engine power

40kw

Rear turning radius (mm)

1650

Bucket capacity

0.45m3

Tread width, centerline to centerline (mm)

1375

Flow output

80 L/min

Width between outside of two wheels (mm)

1625

Operating weight

3100kg

Bucket width (mm)

1740

Overall operating height (mm)

3850

Engine Power

40kw

Height to bucket hinge pin (mm)

3000

Chain type

100H

Height to top of cab (mm)

1980

Speed-standard

12.2 km/h

Height to bottom of level bucket(mm)

2800

Speed-high

optional

Overall length without bucket (mm)

2708

Tubeless tires

10-16.5

Overall length with bucket (mm)

3406

Solid tires optional

31X10-16

Dumping angle at maximum height(° )

40

Rated loading capacity

700kg

Dumping height (mm)

2336

Tipping loading

1400kg

Dumping reach (mm)

505

Lifting type

Radial

Rollback of bucket on ground (° )

30

Breakout force, curl

1810kg

Rollback of bucket at full height(° )

96

Breakout force lift

2200kg

Wheelbase (mm)

1085

Total cycle time

9.1s

Ground clearance (mm)

186

Bucket capacity

0.45m3

Angle of departure(° )

26

System pressure

210 bar

Turning radius front without bucket (mm)

1270

Hyraulic pump output flow

80 L/min

A/C

/

High flow pump output

for optional

FUEL TANK

90L

Kerb wight with bucket

2780 kg
