HTS380 Mini Wheel Skid Steer Loader

Project Information

Project Description

Description of HTS380 Mini Wheel Skid Steer Loader

The skid steer loaders, multi-functional engineering vehicles, multi-purpose engineering machine. Achieved a special chassis vehicle steering wheel equipment, wheel running gear, all-wheel drive, skid steer, random job site can be quickly replaced or mount devices using a variety of work on both sides of the wheel speed difference, to adapt to different working environment and job content.

· Ergonomically designed, operating safety

· Quick hitch system

· Balance weight platform optional

· Higher lifting height than similar products

· Stand on or walk behind

· Double hand grip

Feature:

1. Folding pedal designed, driver can stand up the pedal or walk behind to operate machine.

2. Clear instrument panel sign, operating conveniently.

3. Joystick handle optional, operating more comfortable.

4. International warranty engine, enjoy local 3 years free engine maintenance.

5. It is a easier maintenance machinery,upper cover and back guard plate can be easily opened and dismounted ,you also can easily discharge the wasted egine oil outside the body, replace the spare parts easily ,like filte,engine oil, oi filter, spark plug and so on.

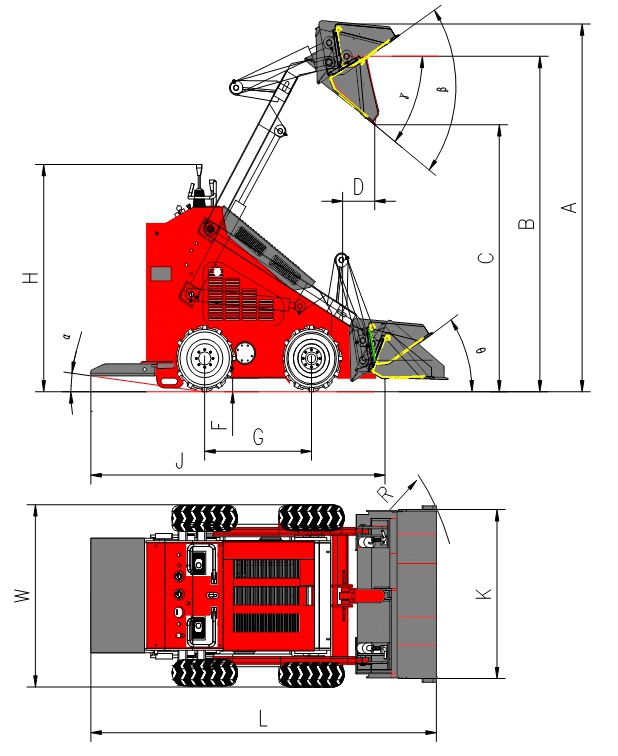

Main performance parameter of HTS380 Mini Skid Steer Loader :

Model:HTS380

Max working height

2115 mm

Max pin height

1856 mm

Max dump height

1460 mm

The highest point discharge distance

388 mm

Bucket swing angle

55°

Bucket unloading angle

30°

Opening-closing angle

25°

Angle of departure

Total height

1205 mm

The height from the ground

90 mm

Wheelbase

636 mm

No bucket length

1752 mm

Total width

1033 mm

Bucket width

980 mm

Total length(with bucket)

2206 mm

Turning radius

1307 mm






Main  performance parameters:

Model:HTS380

Engine

Rated power

21HP/23HP

Rotating speedrpm

3600

NoiseDb

≤95

Hydraulic System

Hydraulic pressureMpa

17

Cycle times

 Raise

Dump

Lower

4.27

1.34

3.31

Performance parameters



Metric

inch

 Load weight (kg)

200 Kg

441 Lb

Bucket capacity

0.15 m3

5.33 ft3

Max lifting power

375 Kg

827 Lb

speed

0-5.5 Km/h

0-3.4 mlie/h

Operating weight



890kg





1958lb



Tire type

Chevron  tire

18*6.5-8

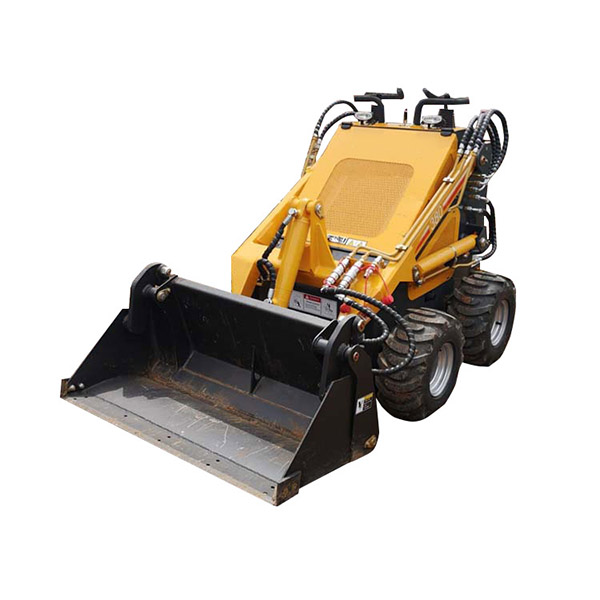

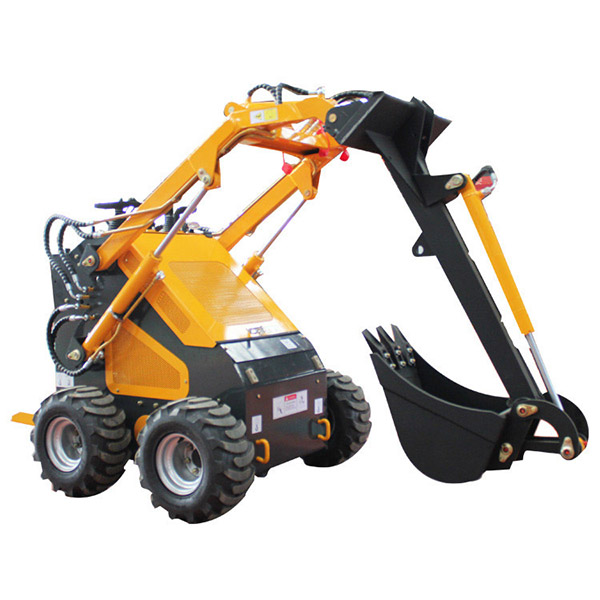

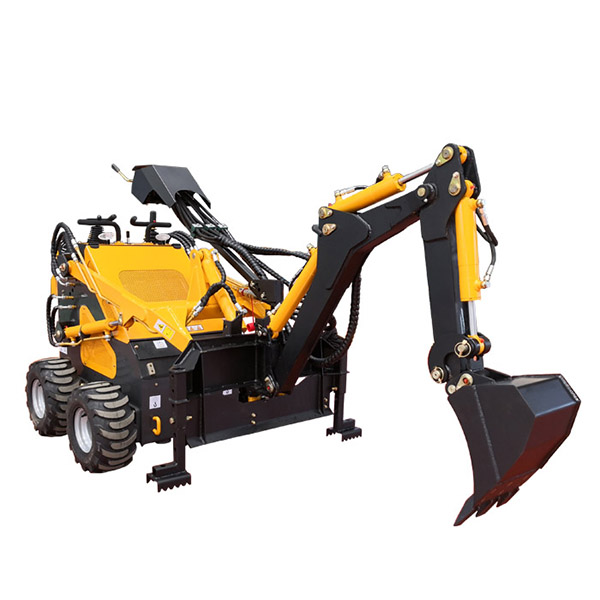

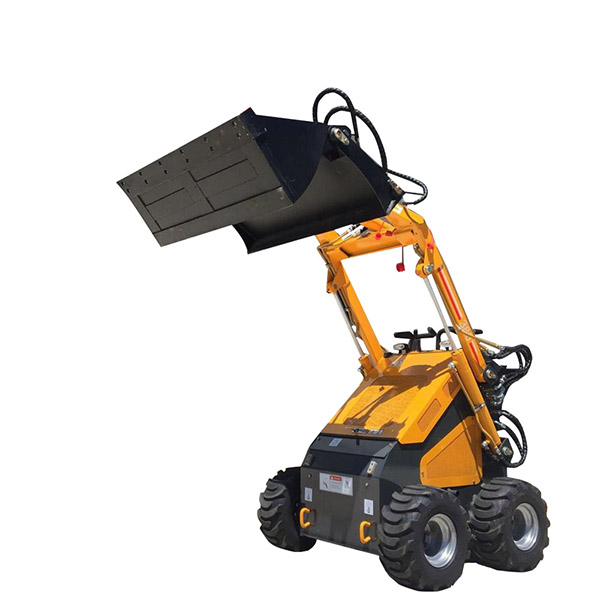

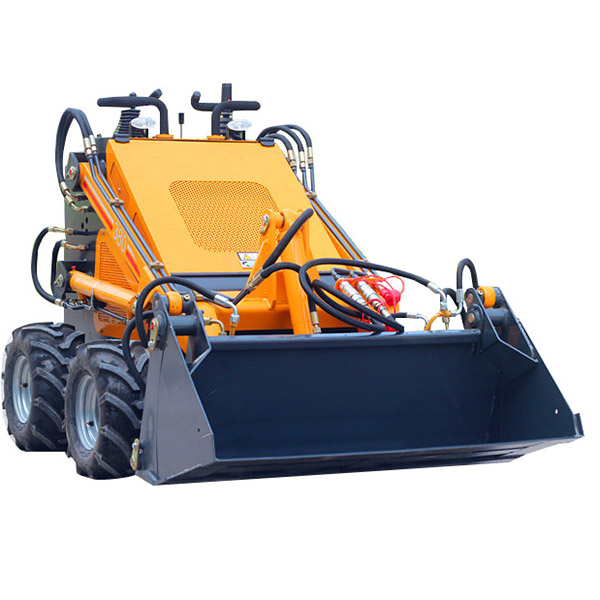

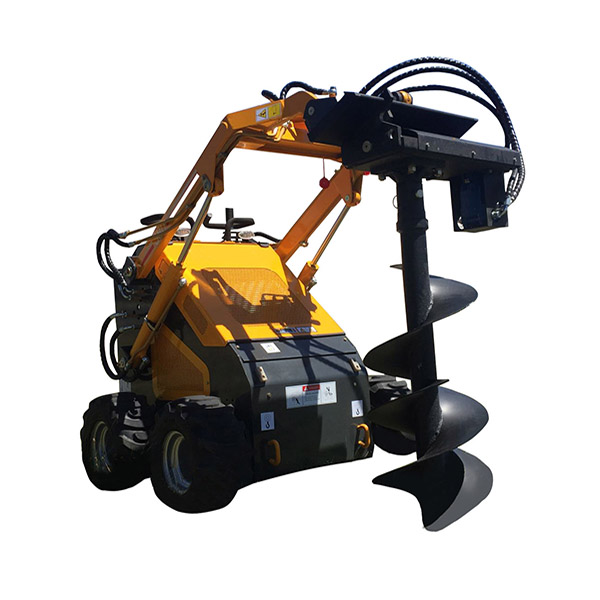

 HTS380 Mini Wheel Skid Steer Loader Images
