HT200 Mini Skid Steer Loader

Project Information

Project Description

Description of HT200 Mini Skid Steer Loader

1. Because its minimum turning radius is less than half of that of the same level of articulated loader, it is especially suitable for operations such as urban infrastructure, roads or construction sites, workshops, warehouses, docks, ship decks and even narrow spaces such as cabins.

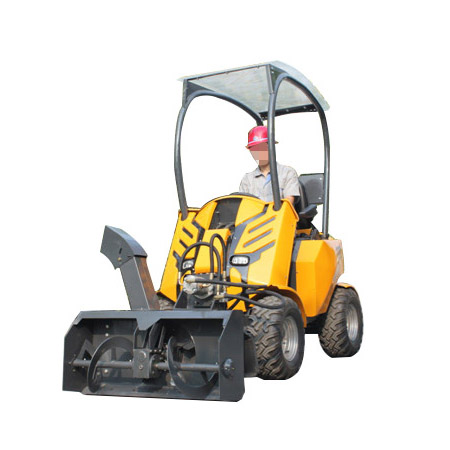

2. Road safety can be directly used for snow cleaning and cleaning operations. With snow cleaning and deicing accessories, the sliding equipment can quickly clean large areas of snow and ice, and benefit from the flexibility of the equipment itself. Effective and wide-ranging work on related equipment.

3.Road safety can be directly used for snow cleaning and cleaning operations. With snow cleaning and deicing accessories, the sliding equipment can quickly clean large areas of snow and ice, while benefiting from the flexibility of the equipment itself ensures the relevant Effective and extensive work of the equipment.

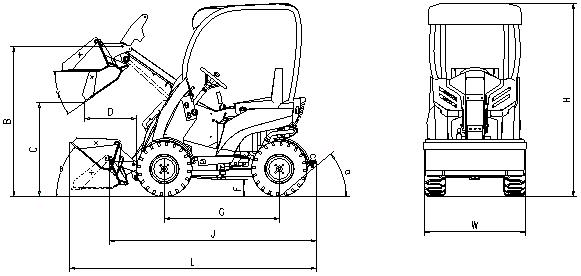

Parameter of HT200 Mini Skid Steer Loader

Item

HT200

Metric

Inch

Max pin height (B)

1769 mm

69.6 inch

Max height of unloading (C)

1260mm

49.6inch

The highest point of unloading distance(D)

558 mm

21.9 inch

Total length (H)

2020 mm

79.5 inch

The height from ground (F)

160 mm

6.3 inch

Wheelbase (G)

1207 mm

47.5 inch

No bucket length (J)

2030 mm

79.9 inch

Total width (W)

970 mm

38.2 inch

Bucket width (K)

980mm

38.6 inch

Total length (L)(with bucket )

2424 mm

93.1 inch

Angle of departure (α)

40°

40°

Bucket unloading angle(γ)

27°

26°

Collecting bucket (θ)

48°

48°

Main performance parameter

Item

HT200

Metric

Inch

Rated power

17.15KW

23HP

Fuel tank of capacity

22L

4.8 UKgal

Hydraulic tank capacity

21L

4.6 UKgal

Loading  weight

260Kg

573.2 Lb

Bucket capacity

0.15 m3

5.32 ft3

Max traction force

5 KN

1124Lbf

Max  lift force

4.6 KN

1034 Lbf

Speed

0-8km/h

0-4.97mile/h

Loading capacity

260 Kg

573.2 Lb

Minimum turning radius

2320mm

91.3 inch

Operation weight

840kg

1851.9lb

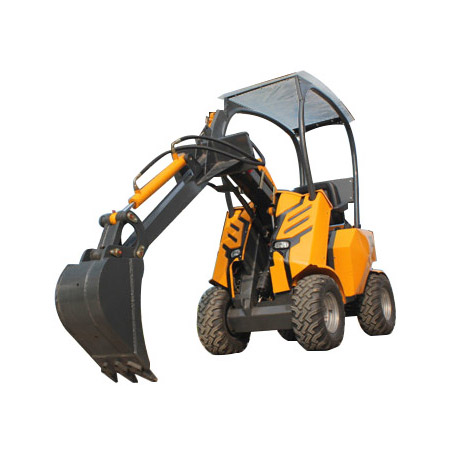

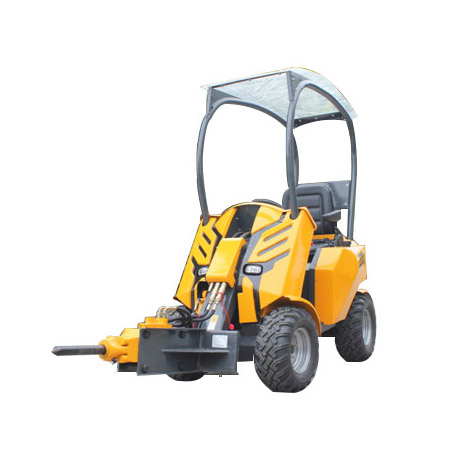

 HT200 Mini Skid Steer Loader Images
