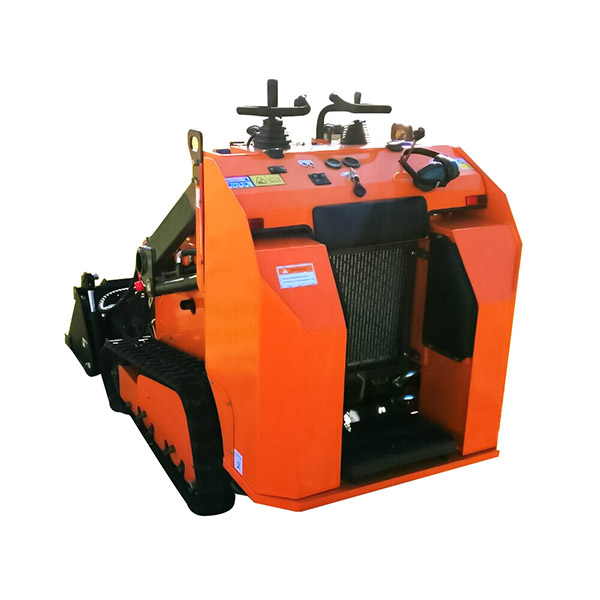

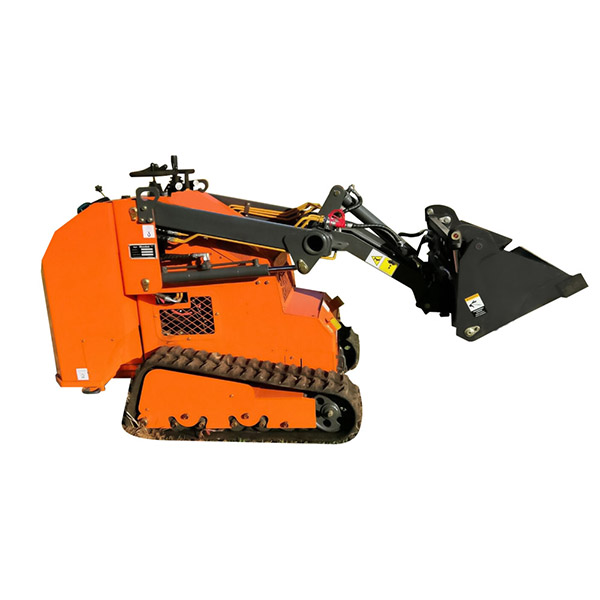

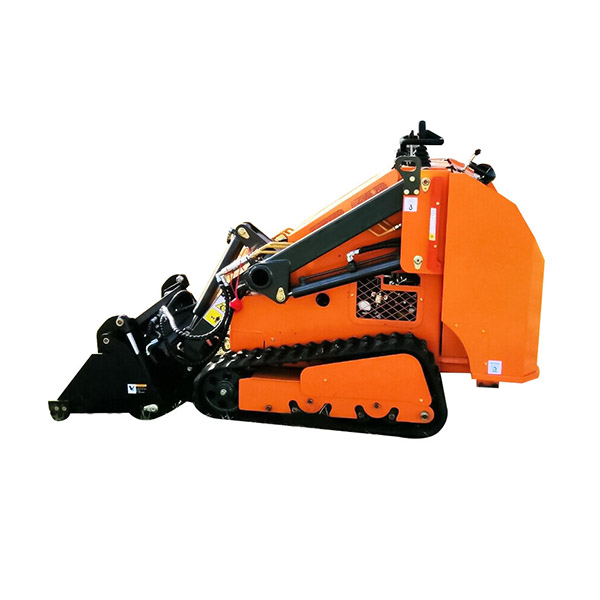

Skid loaders are also known as skid steer loaders, multi-purpose engineering vehicles, and multi-functional engineering machines. It is a wheeled special chassis device that realizes the steering of the vehicle by using the difference in line speed between the two sides. It is mainly used in occasions where the work site is small, the ground is undulating, and the work content changes frequently.
It is suitable for infrastructure construction, industrial applications, terminal loading and unloading, urban streets, houses, barns, barns, airport runways, etc., and can also be used as auxiliary equipment for large-scale construction machinery. There are two types of skid steer loaders: wheeled and tracked.
|
Model |
HT-A1 |
HT-A2 |
|

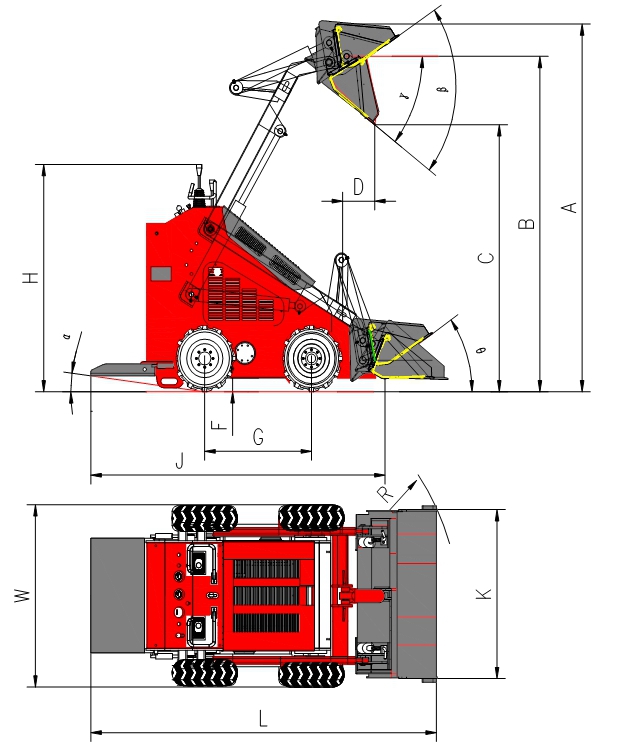

Max working height（A） |
2355 mm |
2355 mm |
|
Max pin height （B） |
2088 mm |
2122 mm |
|
Max dump height（C） |
1942 mm |
1976 mm |
|
The highest point discharge distance（D） |
464mm |
528 mm |
|
Bucket swing angle（β） |
43° |
43° |
|
Bucket unloading angle（γ） |
30° |
30° |
|
Opening-closing angle（θ） |
37° |
37° |
|
Angle of departure（α） |
24° |
30° |
|
Total height （H） |
1479mm |
1514 mm |
|
The height from the ground（F） |
195mm |
230 mm |
|
Wheelbase （G） |
817mm |
1000 mm |
|
No bucket length（J） |
195 mm |
|
|
Total width （W） |
1029mm |
980mm |
|
Bucket width （K） |
1150mm |
1150mm |
|
Total length（L）（with bucket） |
2438 mm |
2438 mm |
|
Turning radius (R) |
1492 mm |
1507 mm |
|
Engine |
Rated power |
24.4KW+5% |
|||||
|
Rotating speed（rpm） |
2800 |
||||||
|
Noise（Db） |
≤95 |
||||||
|
Hydraulic System |
Hydraulic pressure（Mpa） |
20 |
|||||
|
|
|
|
|
||||
|
|
|
|
|||||
|
Performance parameters |
|
Metric |
Metric |
||||
|
Max lifting Force(kg) |
365 Kg |
320Kg |
|||||
|
Bucket capacity |
0.15 m3 |
0.15 m3 |
|||||
|
Max lifting power |
730Kg |
900Kg |
|||||
|
speed |
6Km/h |
6Km/h |
|||||
|
Chevron tire |
23*8.5-12 |
230*72*40 |
|||||
|
|
|
|
|||||
