HT-V1000 Triangle Track Skid Steer Loader

Project Information

Project Description

HT-V1000 Triangle Track Skid Steer Loader Instruction

1. The width of the body is only 900㎜, so it can work freely in and out of some narrow space (the back door of the yard).
2. The vertical lifting design of big arm and the maximum height of bucket pin is 2350㎜ (only 2100㎜ for the same product), which can be loaded on high board trucks.
3. The engine adopts EPA and Euro 5 dual-certified diesel power (perkins Engine 403J-18.5KW or Kubota Engine D902-18.5KW), the hydraulic system adopts the Italian Hansa closed system (the mainstream configuration of foreign brands of skid steer loaders), and the operation mode is pilot handle (one-handed control of walking), which enables the operation of the big arm and the bucket in the process of walking.
4. Big arm standard with levitation function (using the sweeper can follow the ground ups and downs)
5. The operation position is equipped with sponge pads.
6. The height of the chassis from the ground is 185㎜.
7. Designed with the convenience of maintenance in mind.

Translated with DeepL.com (free version)


HT-V1000 Triangle Track Skid Steer Loader Parameter



Ltem

HT-V1000

With Rubber Track

perkins Engine 403J-11


Metric

U.S.

Key Specifications


Rated Power (KW)

18.4(25Hp)

Operating Weight

1538 Kg

3390 Lb

Rated Operating Capacity

454 kg

1000 Lb

Ground Pressure (Rubber)

2800 Kg/㎡

3.98 Psi

Auxiliary Std Flow

45 L/Min

12 Gal/Min

Rotating speed (Rpm)

2800


Noise (Db)

≤95


Engine



Emissions Tier

EU NRM 97/68/EC Stage 5

EPA Tier 4 Final

Engine Cooling

Liquid

Engine Fuel

Diesel

Displacement

1.131 L

69  in³

Number of Cylinders

3

Performance


Tipping Load

1315 KG

2898 Lb

Travel Speed

5.8 Km/h

3.52 Mph

Travel Speed - Reverse

3.9 Km/h

2.4 Mph

Capacities


Fuel Tank

25 L

6.6 Gal

hydraulic system


Hydraulic oil tank capacity

22 L

5.8 Gal

Pump Capacity

                              45 L/ Min

12 Gal/Min

System Relief @ Quick Couplers

    200 Bar

2900 Psi

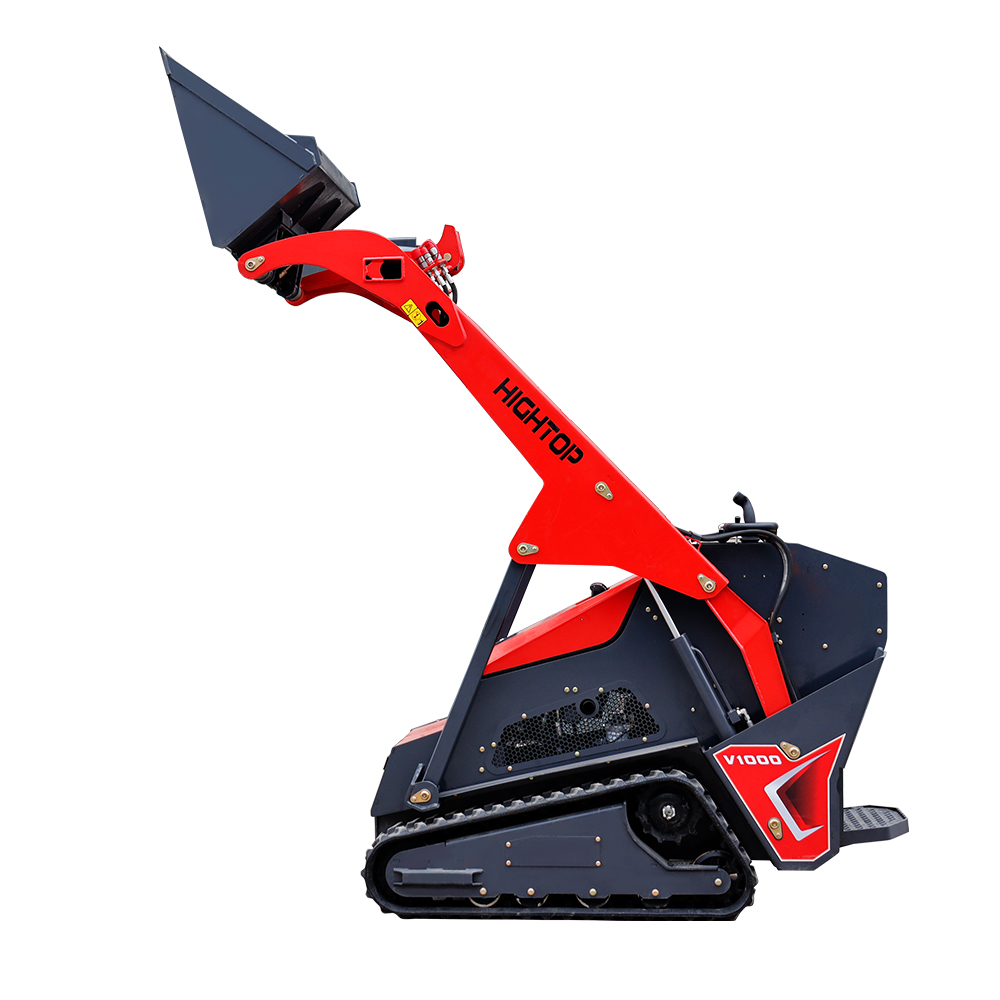

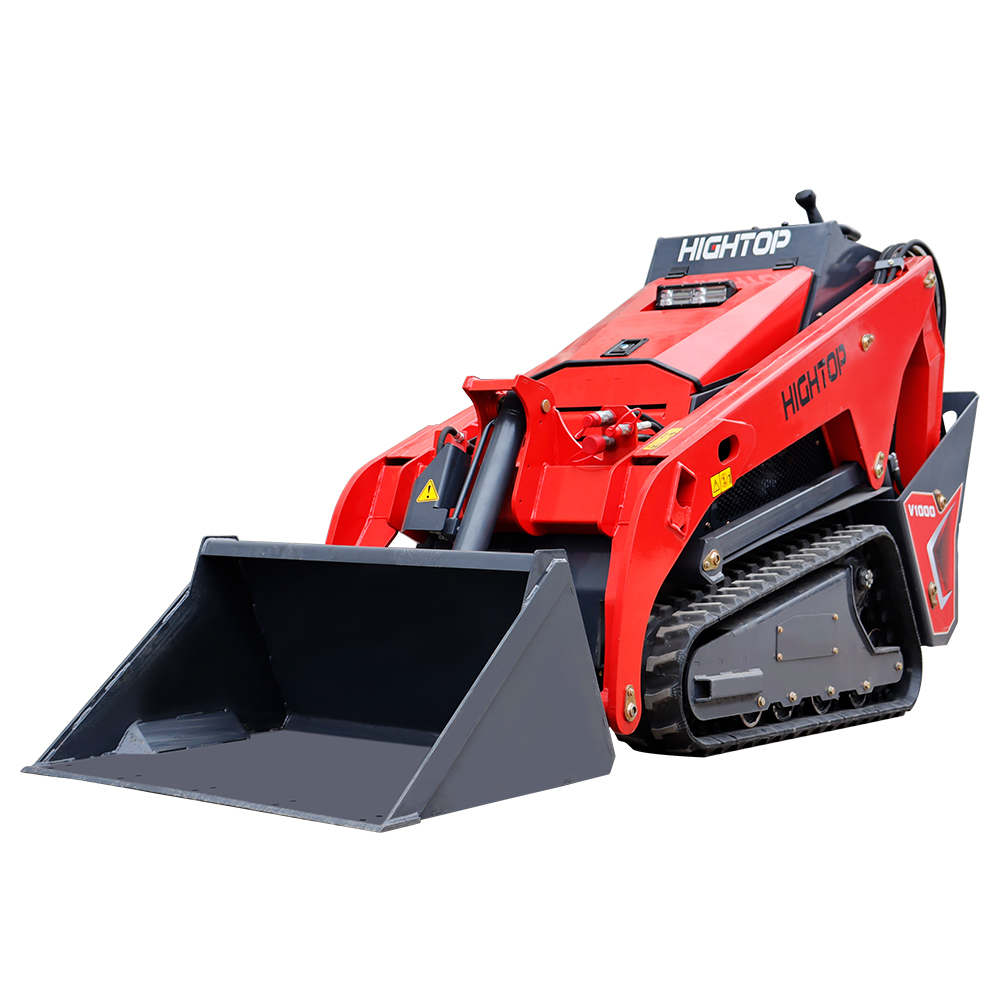

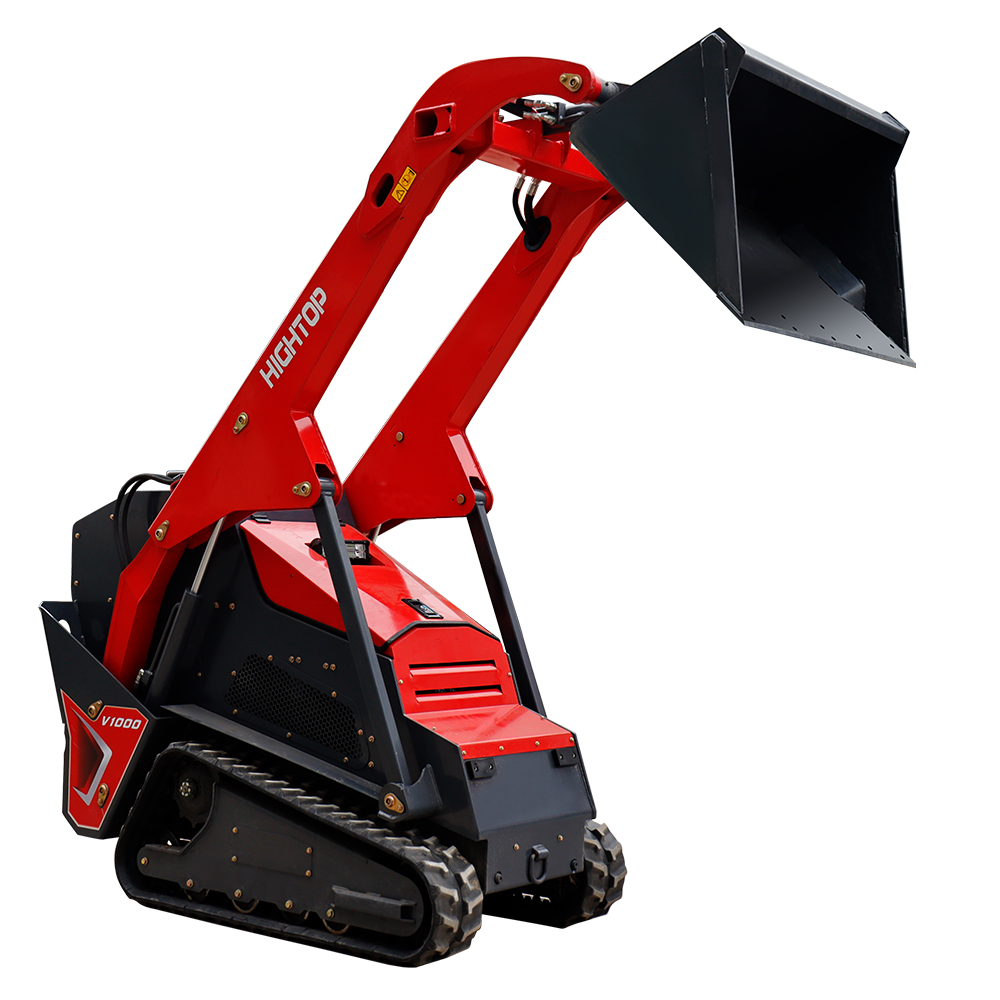

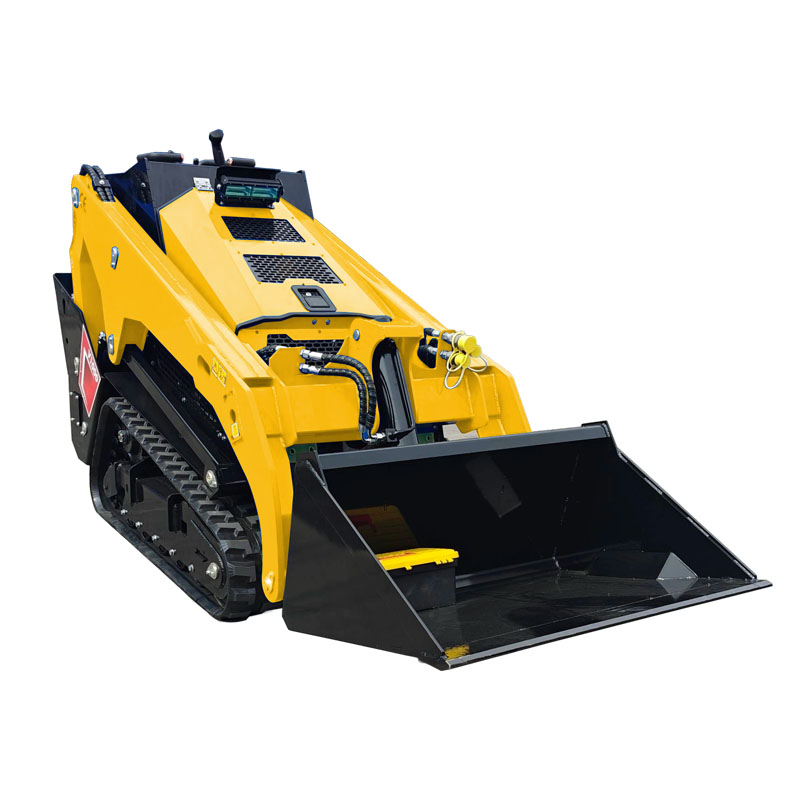

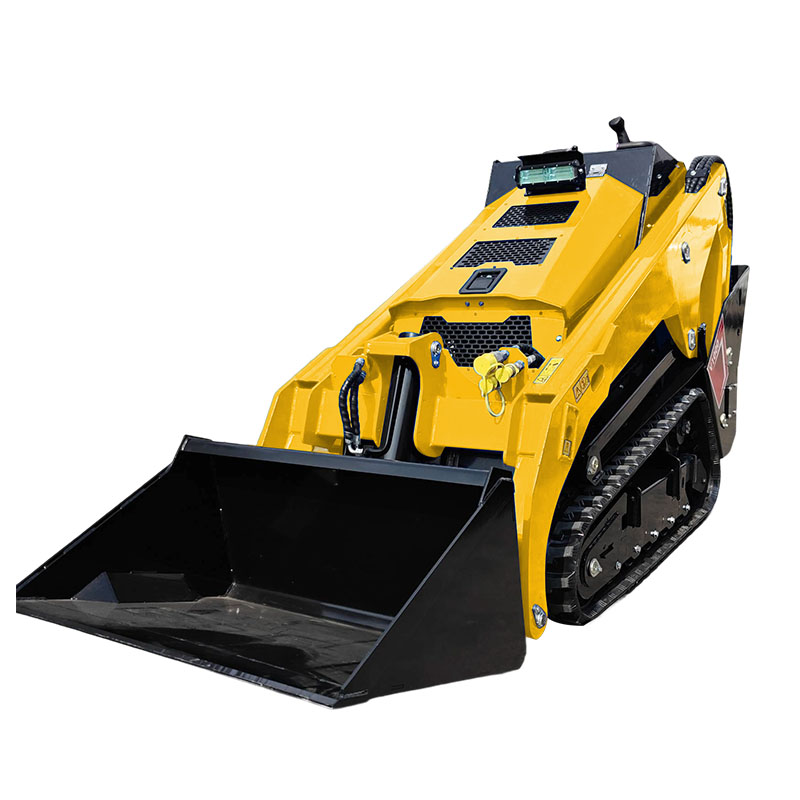

HT-V1000 Triangle Track Skid Steer Loader Images
