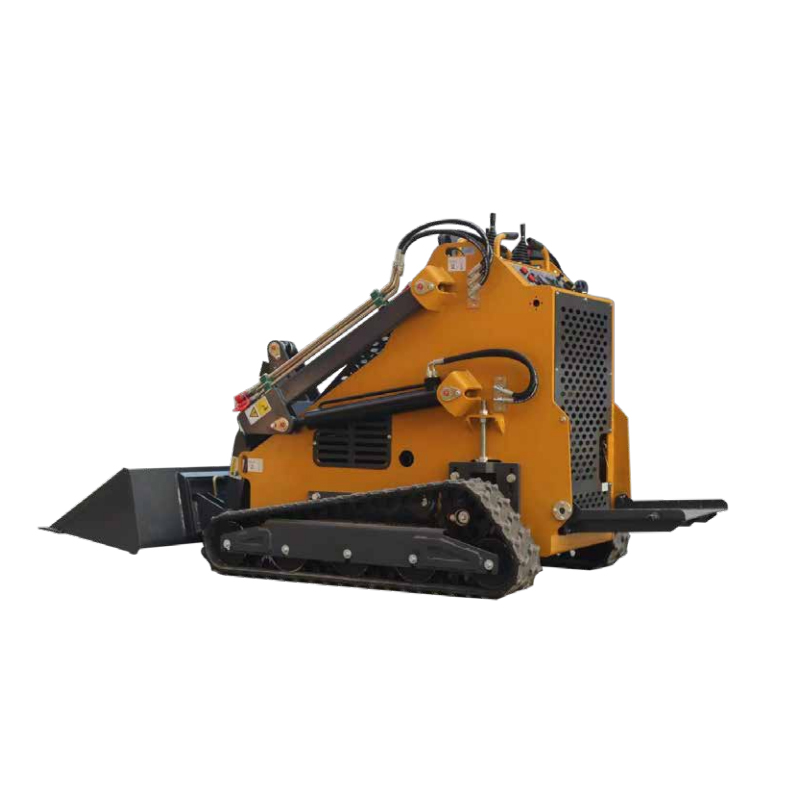

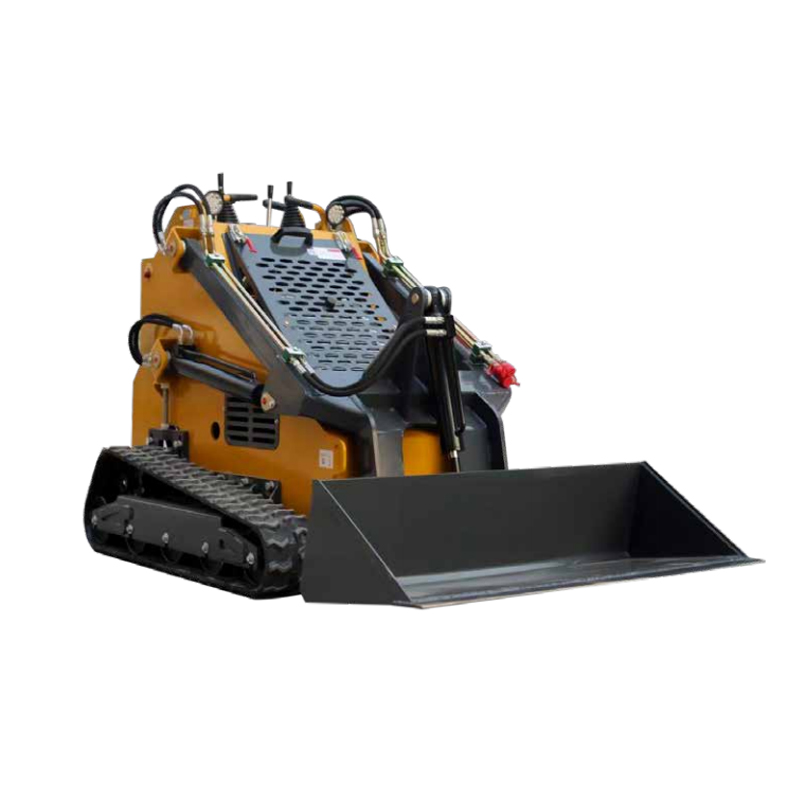

Loader

Model:HTS380.2

Main Size

Performance parameter

Maximum working height (A)

2200mm

Carrying capacity

380Kg(62% tipping load)

Maximum pin height (B)

1884mm

Bucket volume

0.15 m3

Maximum discharge height (C)

1488mm

Maximum lifting force

550KG

Maximum discharge distance (D)

348mm

Maximum lift

380 Kg

Bucket swing Angle (β)

55°

speed

0-5.5 Km/h

Bucket discharge Angle (γ)

30°

Operating weight

860Kg

Suction Angle (θ)

25°

Tractive effort

No load: 520KG

Departure Angle (α)

11°

Angle of climb

17degree

Total height (H)

1280mm

Service time (full oil)

3-4h

Ground height (F)

100mm

Engine

Wheelbase (G)

860mm

Rated power (KW)

19.2KW(26HP) (Runtong brand)

No bucket length (J)

1780mm

Rated speed (rpm)

3600

Total width (W)

1200mm

Noise (Db)

≤95

Bucket width (K)

1190mm

Fuel tank volume(L)

28 L

Total length (L)(with bucket)

2500mm

Hydraulic tank volume(L)

20 L

Front turning radius (R)

1307mm

Hydraulic system

Working hours

System Pressure (Mpa)

17MPa=170bar=2465psi

lift(S)

4.27

Standard flow(L/Min)

25L/min

load(S)

1.34

Traveling pump flow(L/Min)

22L/min

36L/min

landing(S)

3.31

Replenishment pump flow(L/Min)

10L/min

13L/min

Tyre type

Working system(L/Min)

44L/min

44L/min

Herringbone engineered tire

18*8.5-8
