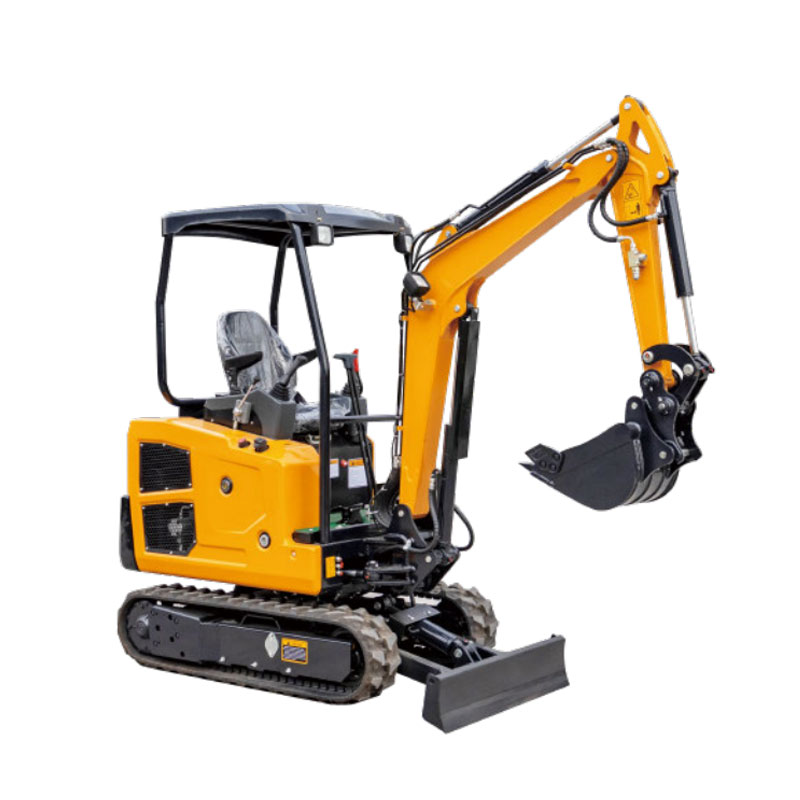

Mini Excavator

Machine Size

Overall dimension (L*W*H)

3865mm*1050mm*2270mm

Axle base(Track length on ground)

1230mm

Track gauge

820mm

Min.Ground clearance

210mm

Swing radius at tail

1125mm

Track System

Maximum Travel speed

3.5km/h

Width of track shoe(Rubber & steel track)

230mm

Number of track shoe per side(Steel track only)

38 pcs

Number of upper roller/ bottom roller（per side）

0/4

Performance Parameter

Standard bucket capacity

0.06m³

Swing speed

10~12 rpm

Max. Grade ability

35°

Max. Bucket digging force

14KN

Max. Arm digging force

10KN

Hydraulic system pressure

18Mpa

Machine weight

1800kg

Engine

Emission Standard

Euro 5/EPA

Engine Brand / Power

Kubota Engine D1105 14.2kw

perkins Engine 14.7kw

Laidong 3TE25 18.4Kw

Number of cylinder

3

Working Range

Max. Digging height

3365mm

Max. Dumping height

2385mm

Max. Digging depth

2050mm

Max. Vertical digging depth

1725mm

Max. Digging radius

3860mm

Min .swing radius

1720mm

Max. Lifting height of blade

230mm

Max. Cutting depth of blade

275mm

Boom swing angle(Left)

75°

Boom swing angle(Right)

45°
