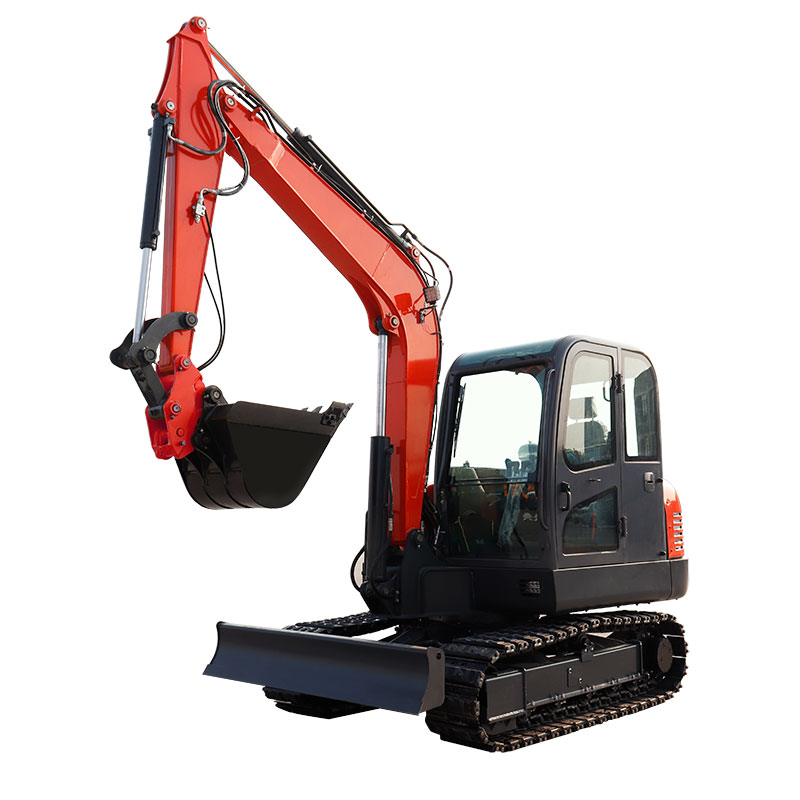

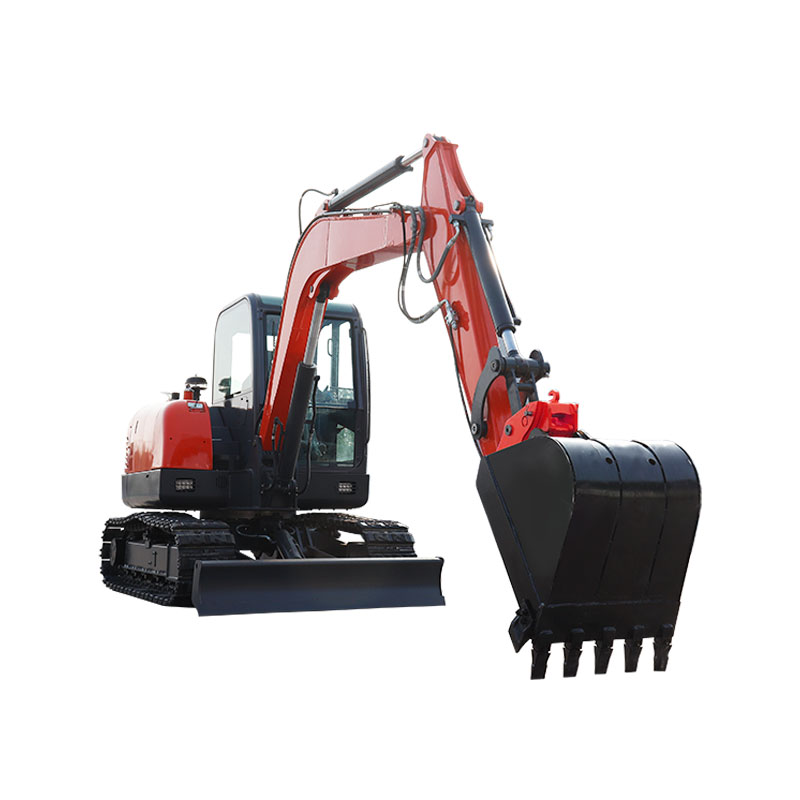

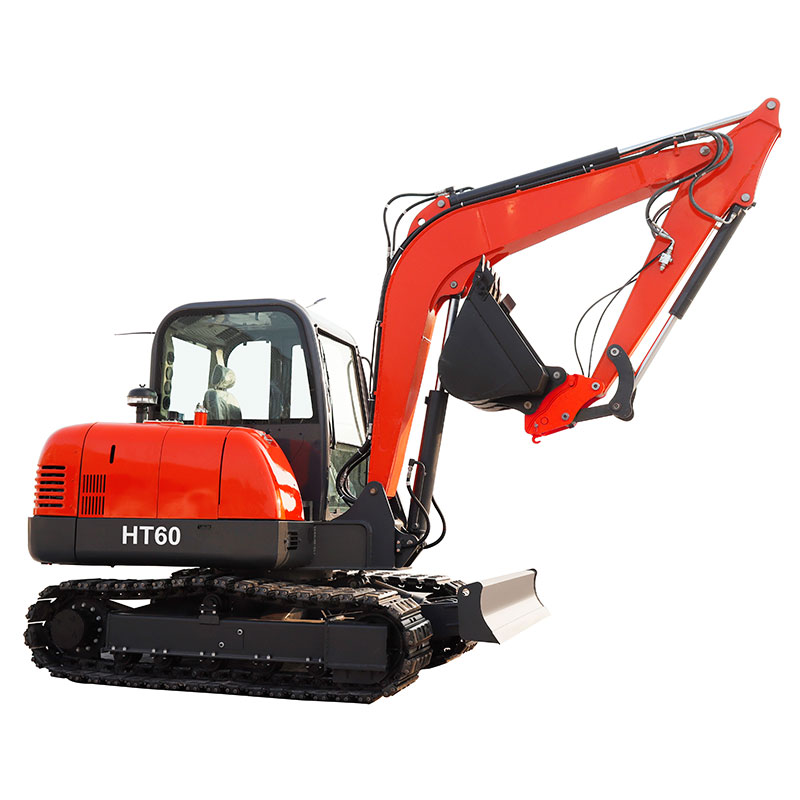

Mini Excavator

Model

HT60

Standard Bucket capacity

0.21m³

Swing speed

11rpm

Maximum Grade ability

35°

Maximum Bucket digging force

48KN

Maximum Arm digging force

35KN

Hydraulic system pressure

28Mpa

Machine weight

6100kg

Fuel tank

87L

Hydraulic oil tank

100L

Engine

Emission Standard

Tier 3/ Stage III

Make /Model

Kubota Engine /V2607

Power /Rotation speed

42.4kw(58HP)@2000rpm

Number of cylinder

4

Track System

Maximum Travel speed

2.4/4.3 km/h

Width of track shoe

400mm

Number of track shoe per side

40pcs

Number of upper roller per side

1

Number of bottom roller per side

5

Working Range

Maximum Digging height

5499mm

Maximum Dumping height

3845mm

Maximum Digging depth

3808mm

Maximum Vertical digging depth

2983mm

Maximum Digging radius

6128mm

Minimum swing radius

2607mm

Maximum Lifting height of blade

376mm

Maximum Cutting depth of blade

474mm

Machine Size

Overall dimension (L*W*H)

5940mm*1880mm*2570mm

Height of cabin

2600mm

Track length on ground(Axle base)

1990mm

Track gauge

1480mm

Minimum Ground clearance

353mm

Swing radius at tail

1689mm
