HTHY800 Seat Loader

Project Information

Project Description

HTHY800 Seat Loader overview

① The series has compact design, small host width and good passability. Use variable amplitude working arm. Ensures a strong load carrying capacity in a smaller width.

② The width of the main machine is the smallest in all the sliding machine products. To meet special operational requirements.

③ The product uses imported European and American hydraulic parts. Sensitive control, rapid response, is the best choice for small space operations.

HTHY800 Seat Loader Parameter

Operating load (kg)

300

Maximum driving speed: (high speed)

8

Minimum travel speed: (low speed)

4

Tire(track) model

18*8.5-8

Engine brand:

Briggs&Stratton

Rated power (HP)

13.5HP

Fuel tank capacity (L)

20

Machine net weight: (kg)

800

Working weight:

1200KG

Bucket capacity (m3)

0.15

Overall operating height (mm)

2750

Height to bucket hinge pin (mm)

2200

Overall length ithout bucket(mm)

2180

overall length with bucket(mm)

2680

Dumping angle at maximum height(°)

38

Dumping height(mm)

1770

Dumping reach(mm)

200

Wheelbase(mm)

950

Ground clearance(mm)

140

Big arm width: (mm)

340

Width (mm)

960

Bucket width (mm)

1000

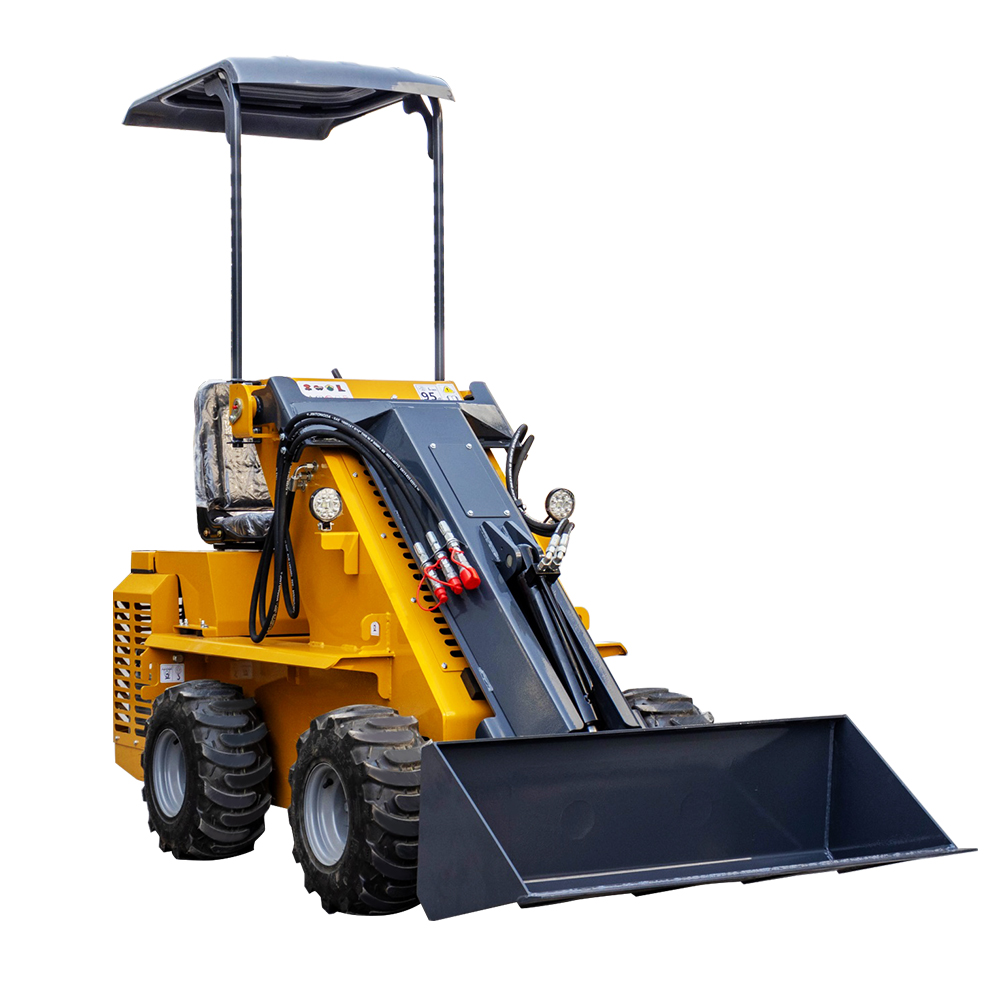

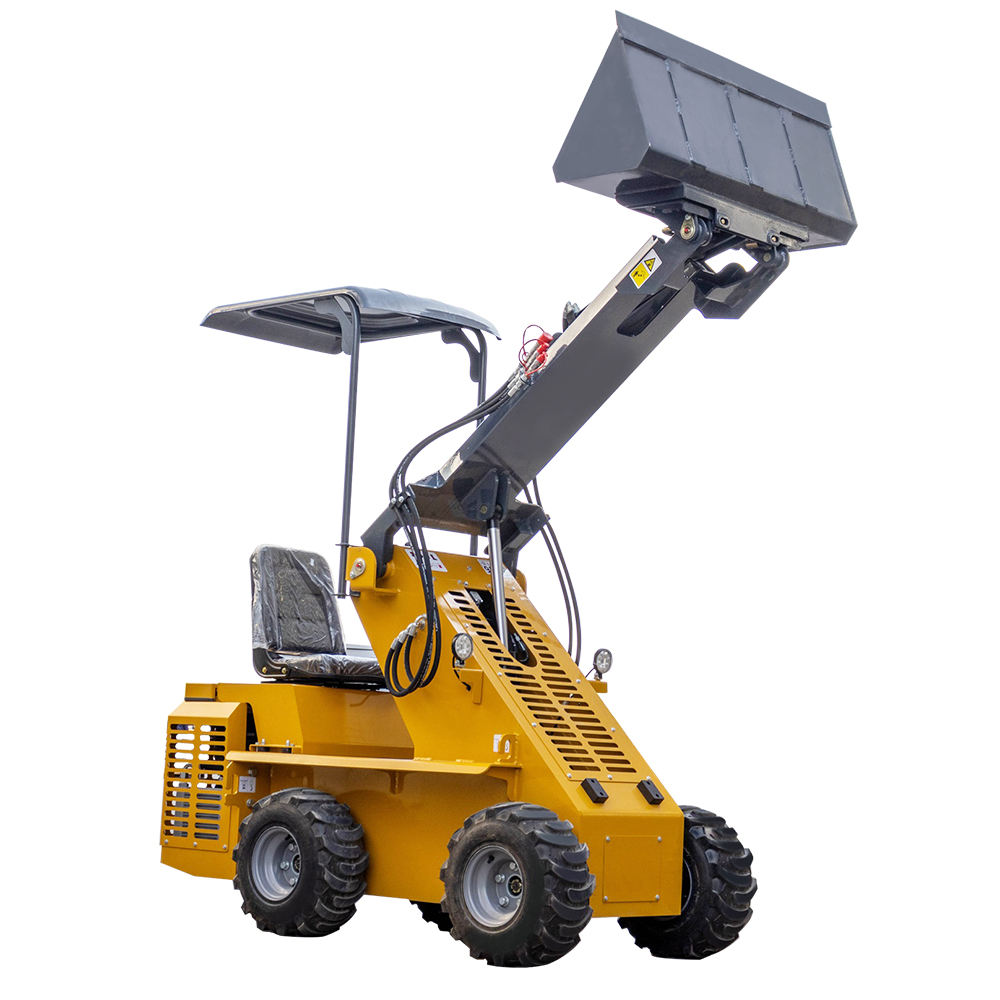

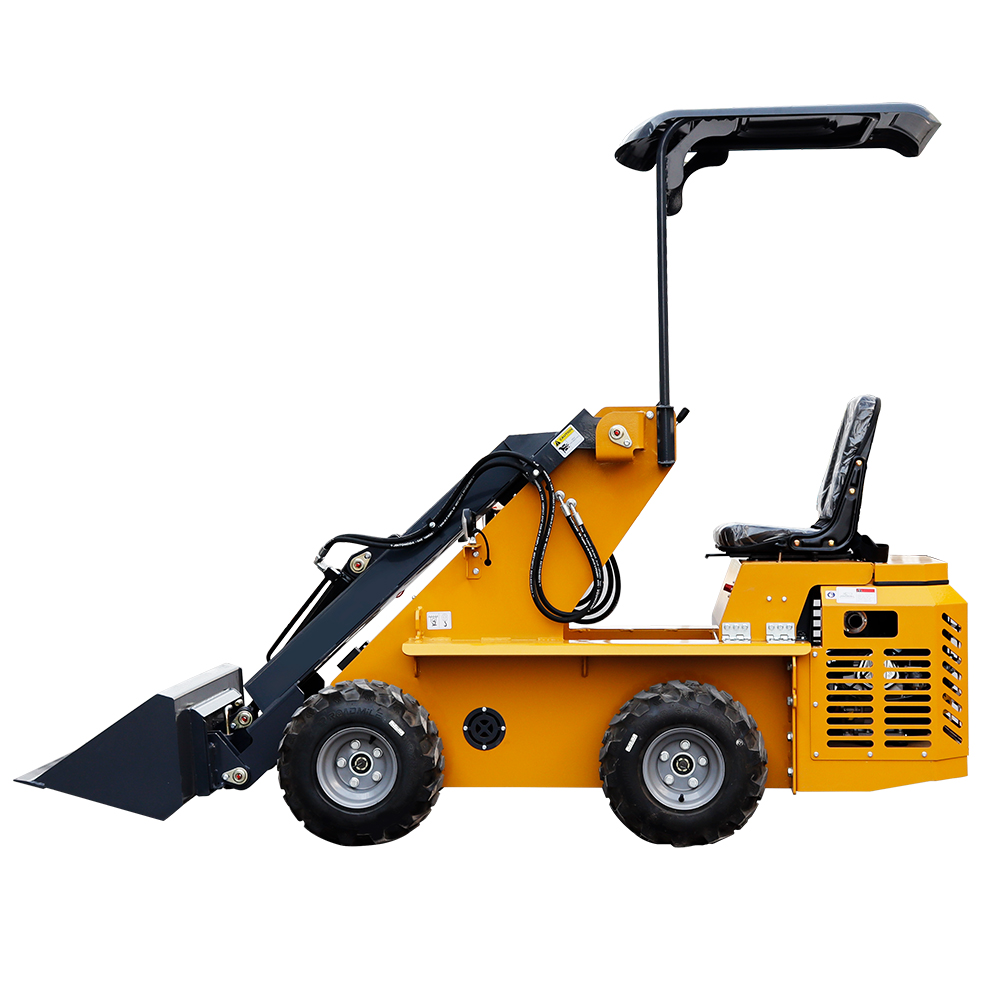

HTHY800 Seat Loader Images
