HTS530T Skid Steer Loader

Project Information

Project Description

HTS530T Skid Steer Loader Instruction

ISO joystick operation

Full Hydraulic system

Button start

Rubber Track

High-flotation tracks that alltow it to move

across wet and muddy groun

Easily travel through gates,doorways and other narrow spaces

Three pumps three valves

Reserve special pressure measuring pointscan detect the vehicle pressure at any time

Automatic leveling system

High power, low fuel consumption, high efficiency

DUAL CERTIFIED DIESEL ENGINESBRAND THREE CYLINDER ENGINE

COMPACT SIZE

The working height can reach 2630mm

lts size is relatively small

Can squeeze through the entrance and fence door

You can also work indoors

PILOT OPERATION

The control signal is amplified by the use of hydraulicpressure or mechanical force

FRONT COVER PLATE

Front cover easy to open, double rod support

COMPREHENSIVE CONFIGURATION

The machine is equipped with storage bucketsand fire extinguishers

The standing operation area is equipped with anti-collision sponge

CONVENIENT FOR WORK360 degrees rotation

Convenient to operate in narrow spaces

HTS530T Skid Steer Loader Parameter

Max working height A

2630mm

Rated Power (KW)

14KW

Max pin height B

2090 mm

Rotating speed (rpm)

2200

Max Dumping height C

1535 mm

Noise (Db)

<93

Max Dumping distance  D

715mm

Pressure (Mpa)

0-17

Max Dumping Angle E

38°

Flow rate

0-32L

Total height F

1630 mm

Operating Load

450 Kg

Ground clearance

150 mm

Bucket Capacity

0.2m3

Overall length without bucket

2220 mm

Max Lifting Force

530 Kg

Total width G

1050 mm

Travel Speed

0-4.5Km/h

Bucket width H

1150mm

Operating Weight

1330 Kg

Total length with bucket K

2745 mm

Fuel tank

30L

overall length without the bucket

after folding the pedal Y

2100 mm

Engine oil

4L

Engine

Kubota Engine D1105

Hydraulic tank

35L

Optional engine

perkins Engine

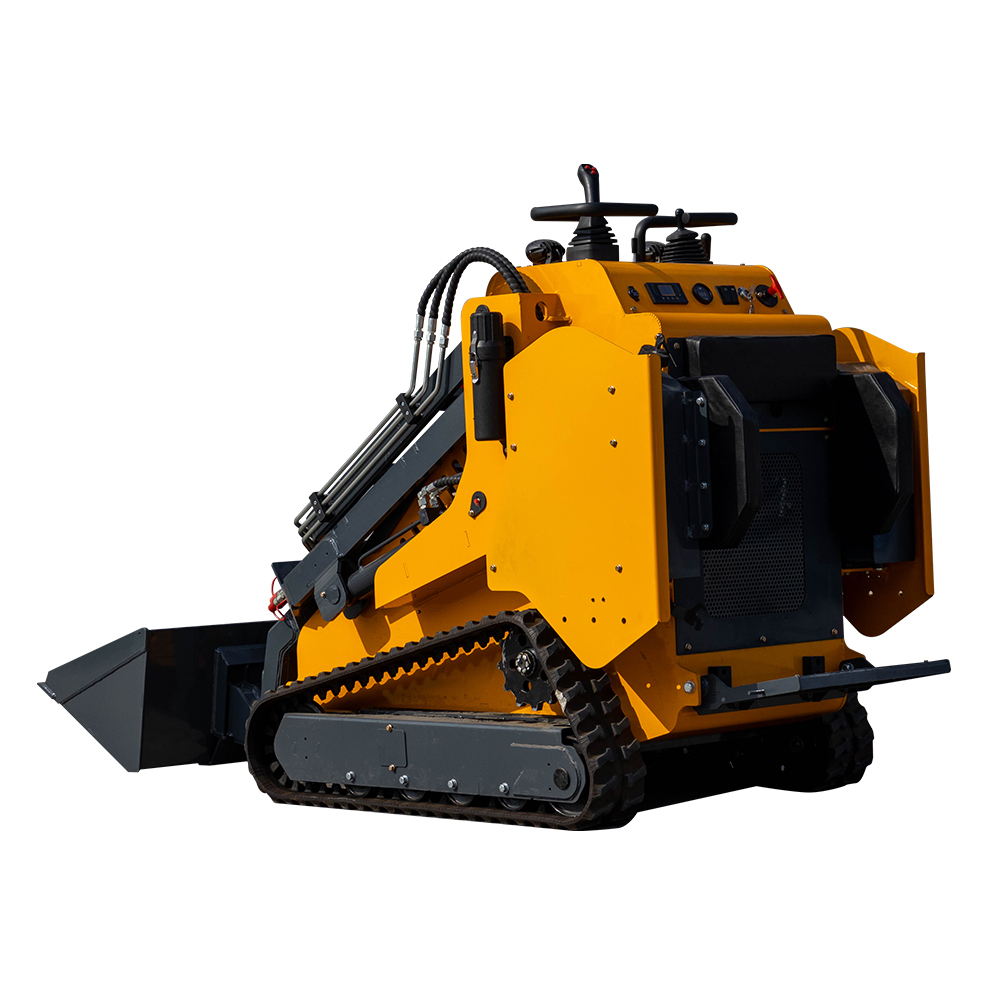

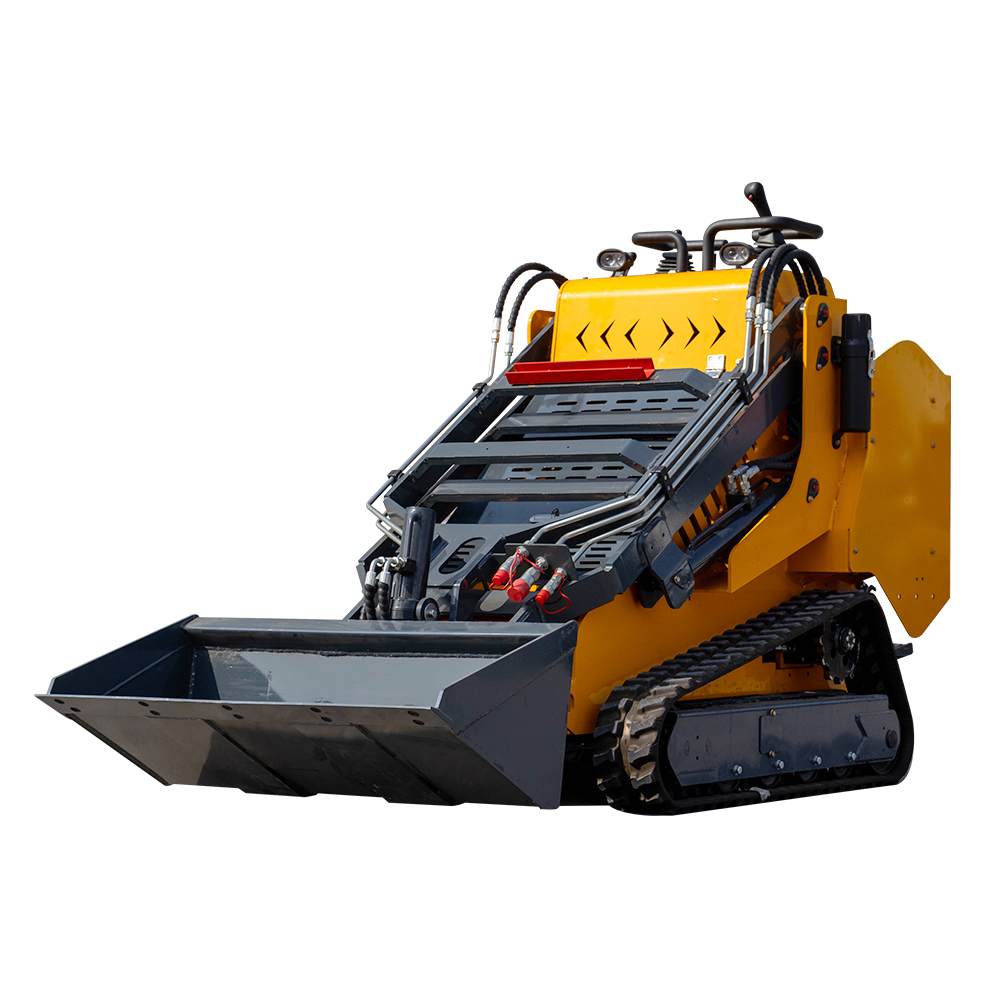

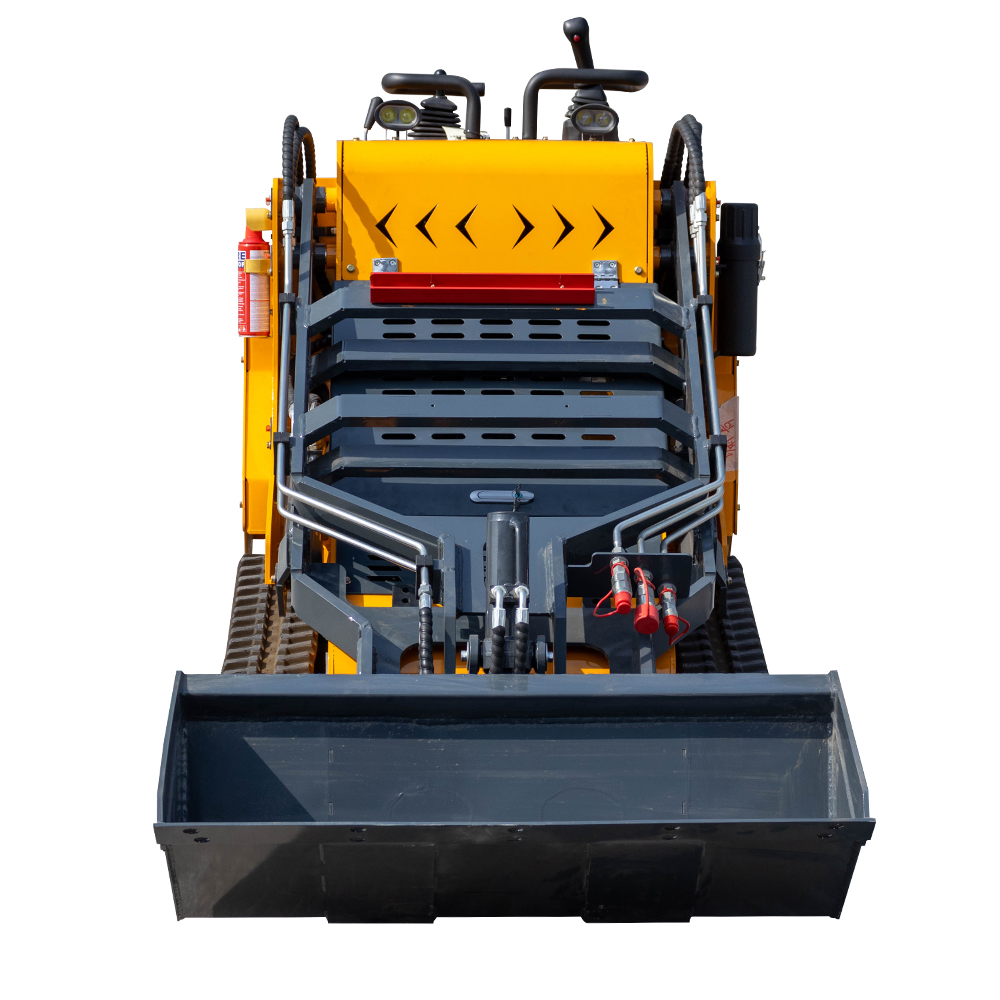

HTS530T Skid Steer Loader Images
