HTHY382T Mini Skid Steer Loader

Project Information

Project Description

HTHY382T Mini Skid Steer Loader Instruction

HTHY382T Mini Skid Steer Wheeled Loader is highly maneuverablesmall and versatile machine, it is the right choice for your manual tasks.

PRODUCT ADVANTAGE

SMALL AND FLEXIBLE

Small size, can be in tight Spaces and complexMove and work freely in the environment

STRONG MOBILITY

Be able to move quickly and flexibly toadapt to different work locations

VERSATILITY

Can be equipped with a variety of differenaccessories, to achieve digging, shovelingcleaning, drilling and other functions

HIGH WORKINGEFFICIENCY

Easy to operate, can complete a lot ofwork in a short time

LOW MAINTENANCECOST

The structure is relatively simple, the maintenanceis relatively easy and the cost is not high

WIDE RANGE OFAPPLICATION

Widely used in construction sites, landscapingmunicipal engineering, agriculture and manyother fields

WHEELED/TRACKED

Wear-resistant tires/tracks can be customizedFlexible steering, strong gripSuitable for a variety of terrain

MULTI-FUNCTION CONSOLEOS

Hydraulic double operating leverFlexible use of high safety factorThe numbers are clear to my eyes

RADIATOR

Reasonable air duct layout design.

Compact structure,rapid heat dissipation

HYDRAULIC LIFTINGO

Thick hydraulic tubing, strong sealing, no oilleakage and oil leakage, stable and stable

lifting operation

Flexibleconvenient operation

The machine is equipped with an advanced attachment latching systemfor simple, secure connections. The machine's narrow frame easily fitsthrough standard yard gates and is engineered to maneuver in tight,compact spaces for improved productivity in hard-to-reach places.

Dual Jovstick Controls

Ergonomic operator's station comes standard with dual-level ground drivecontrols, with an optional joystick,allowing the operator to control eachtrack independently for improved maintenance an mobility on difficult iobsite conditions.


HTHY382T Mini Skid Steer Loader Parameter

Max working height

2105mm

Max pin height

1865 mm

Max Dumping height

1390 mm

Max Dumping distance

600mm

Max Dumping Angle

40°

Total height

1415 mm

Ground clearance

125 mm

Wheel base

/

Overall length without bucket

1685 mm

Total width

1025 mm

Bucket width

1150mm

Total length with bucket

2340mm

overall length without the bucket after folding the pedal.

1685mm

Engine

R740-1

Rated Power (KW)

16.5Kw/3600rpm

Rotating speed (rpm)

3600

Noise (Db)

≤95

Hydraulic System


Pressure (Mpa)

0-16

Flow rate

0-40L

Operating Load

300 Kg

Bucket Capacity

0.15m³

Max Lifting Force

380 Kg

Travel Speed

0-4.5Km/h

Operating Weight

Kg

Oil


Fuel tank

20L

Engine oil

1.7L

Hydraulic tank

35L

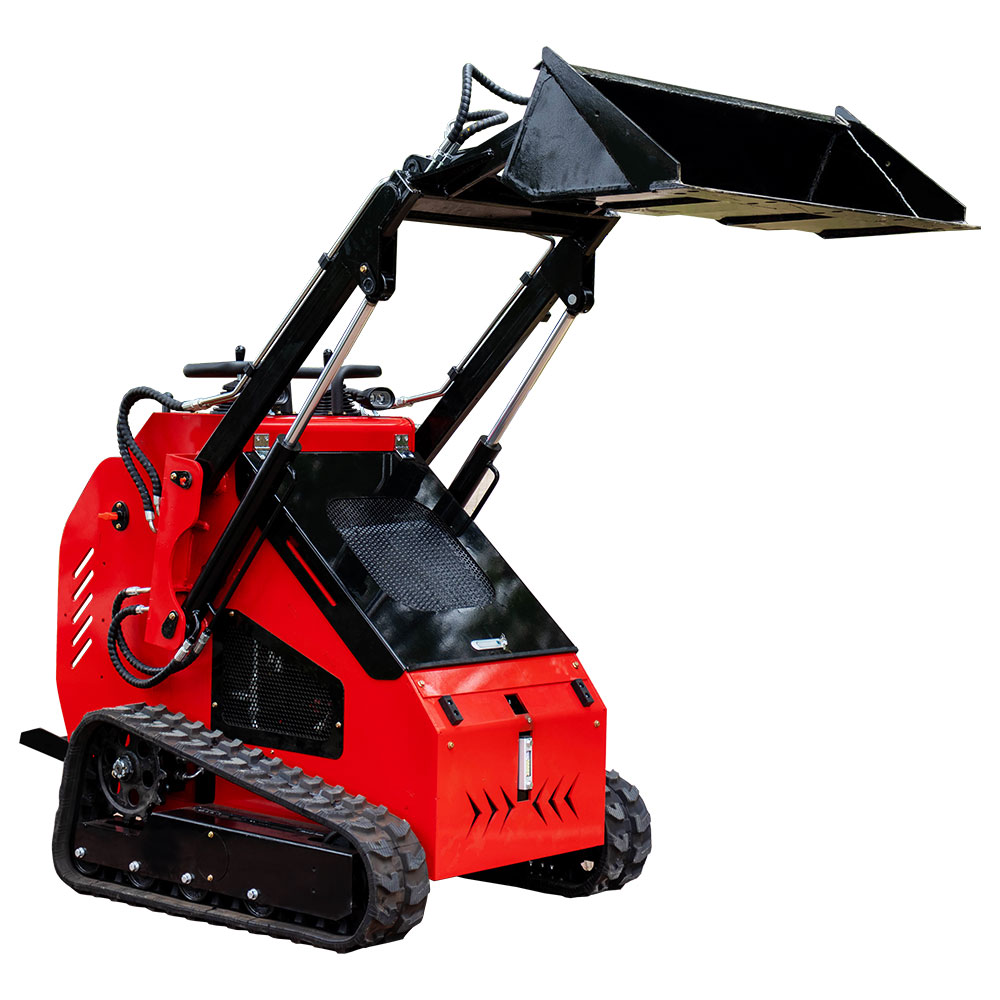

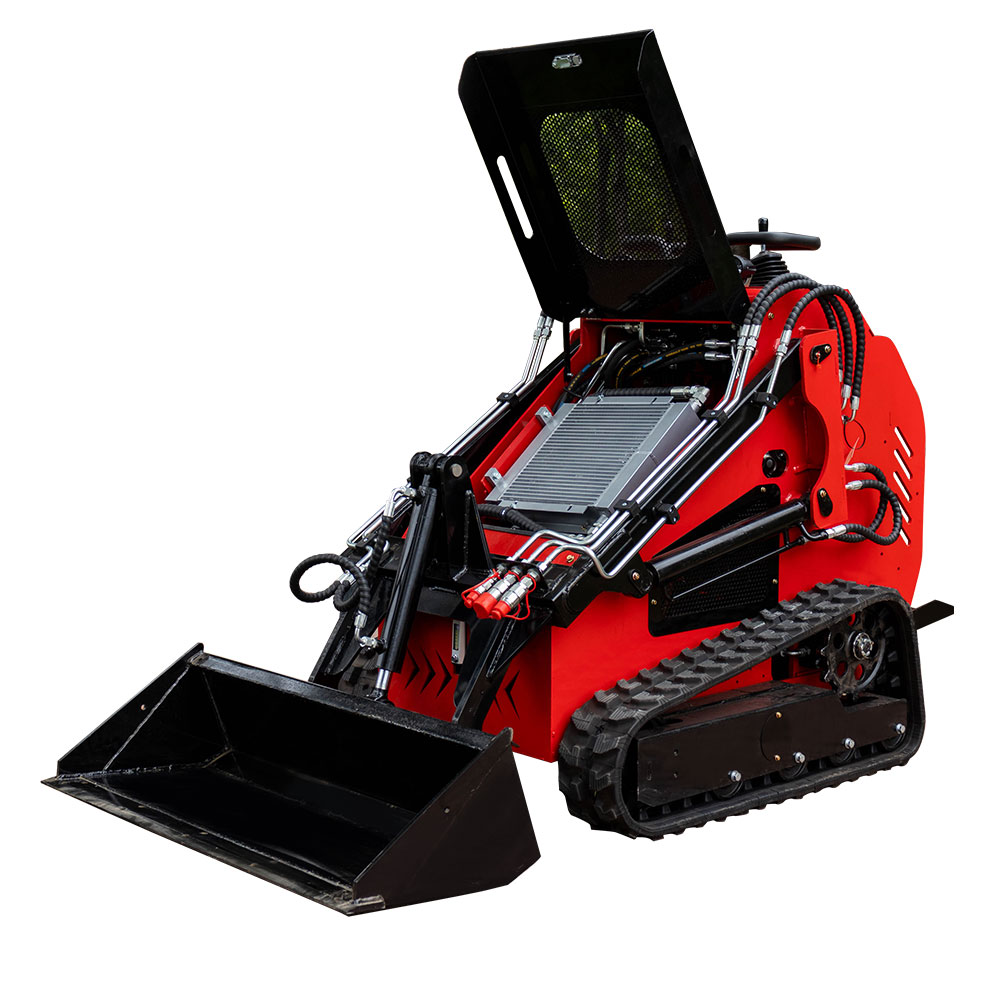

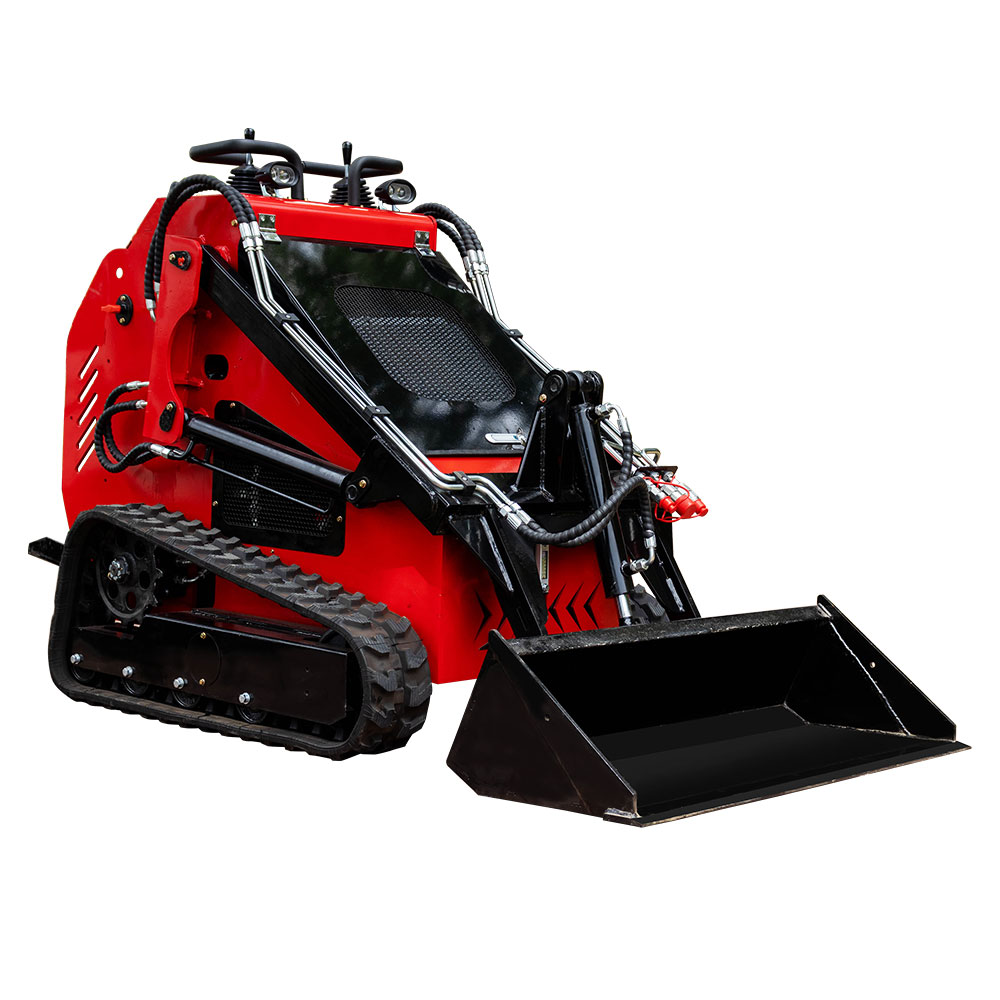

HTHY382T Mini Skid Steer Loader Images
