Project Description

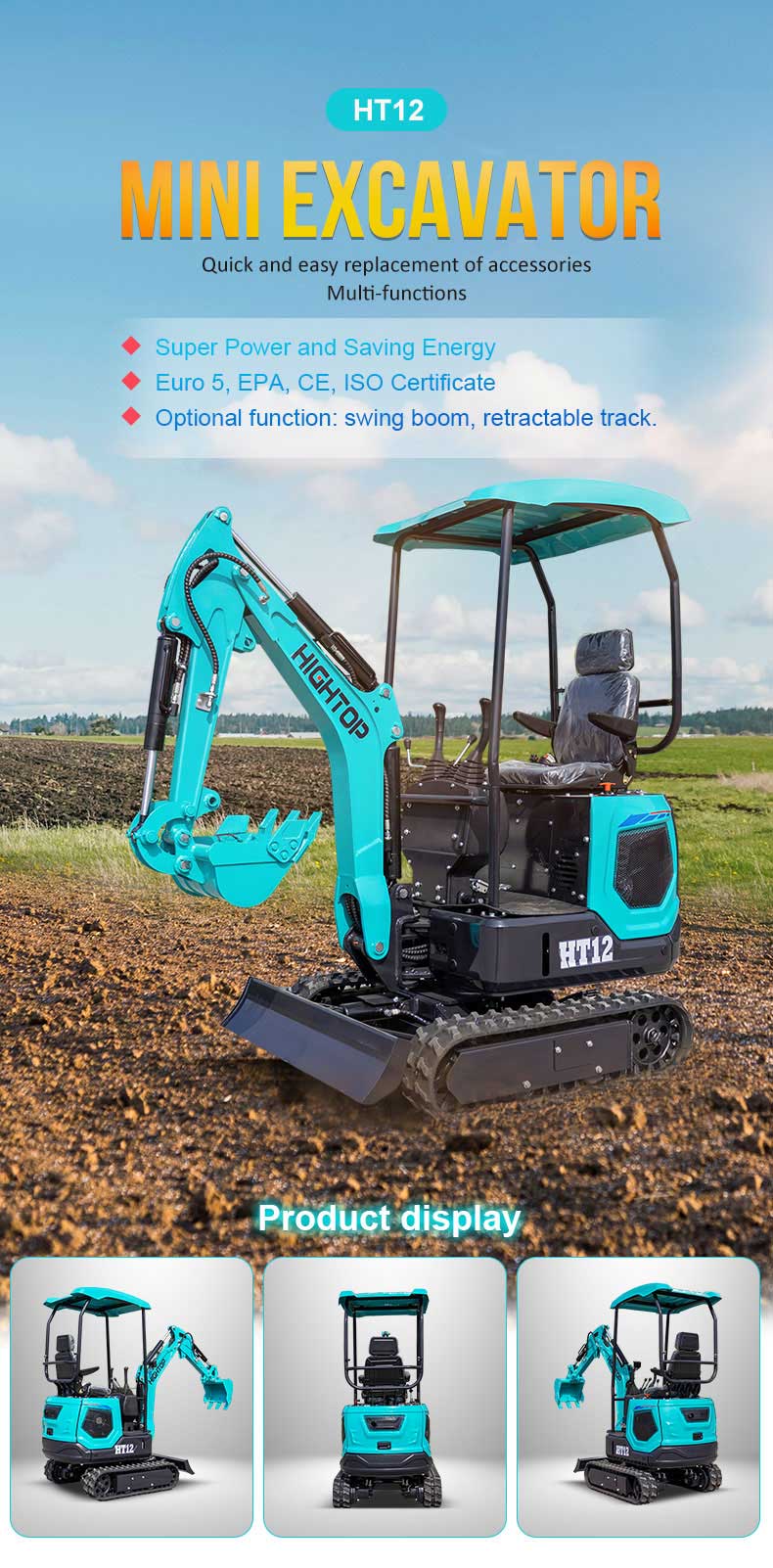

HT12 Mini Excavator Instruction
Quick and easy replacement of accessories
Super Power and Saving Energy
Euro 5, EPA, CE, IsO Certificate
Optional function: swing boom, retractable track.

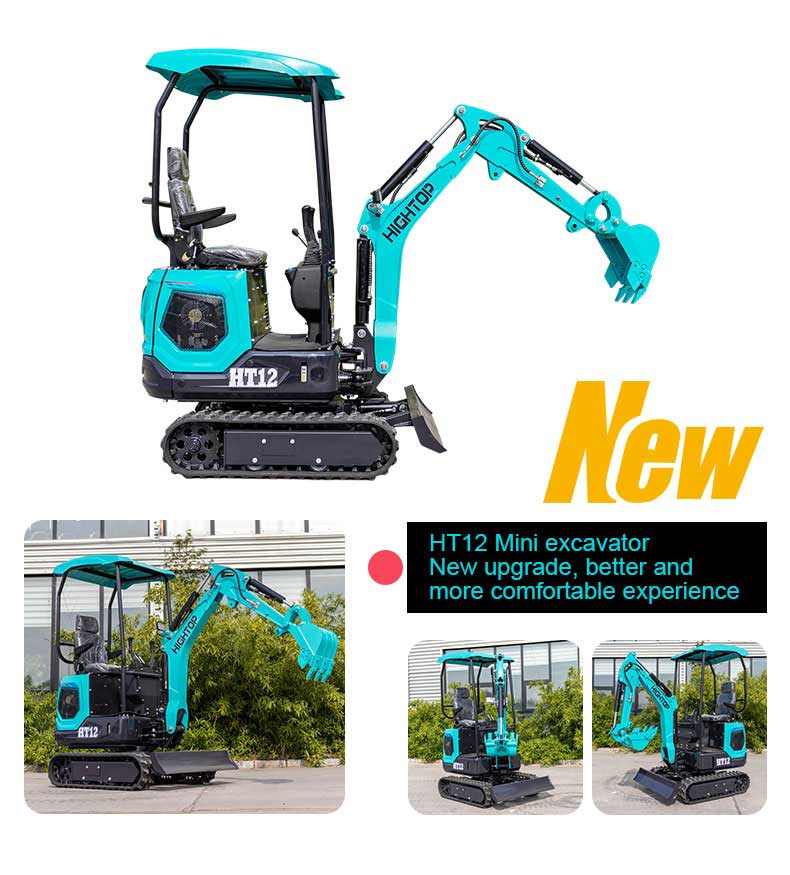

HT12 Mini excavator New upgrade, better and more comfortable experience
APPLICATION SCENARIO
Excavators are widely used and can be used in a variety of work scenarios.
Earthwork
River regulation
Building demolition
Pond digging
Road construction
Orchard digging

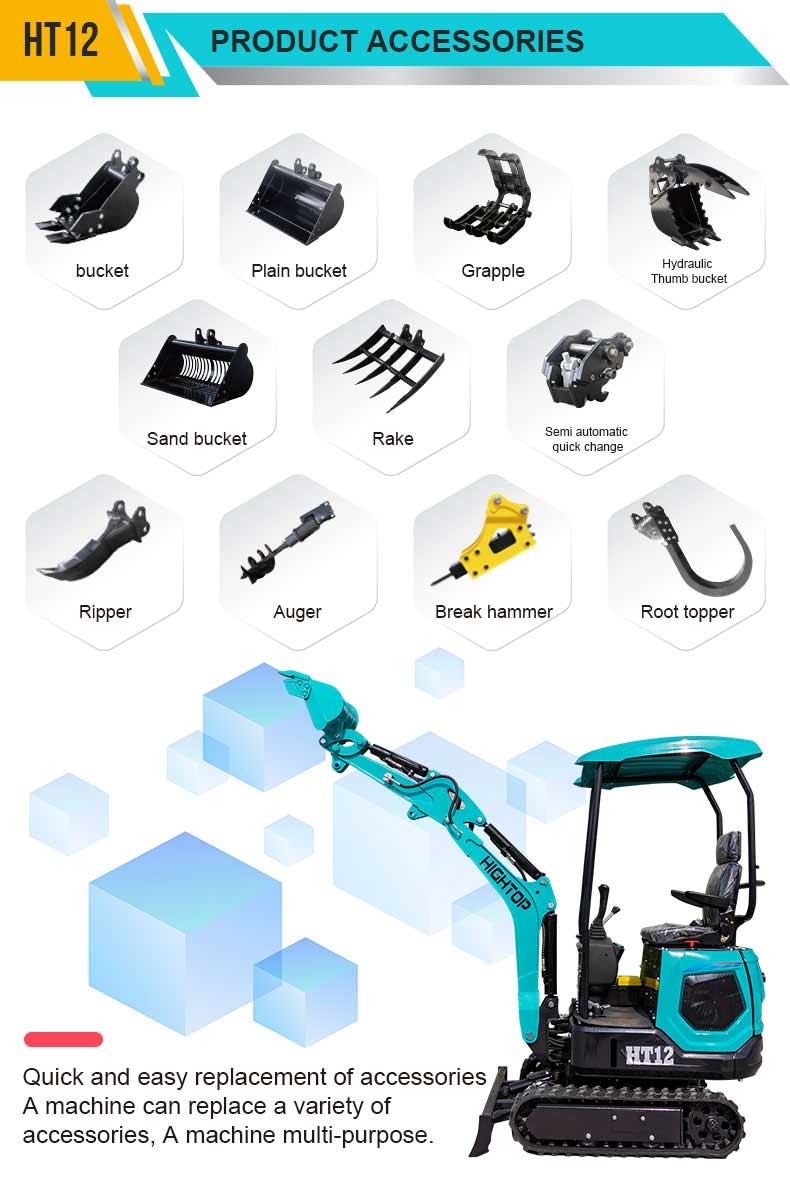

HT12 PRODUCT ACCESSORIES
Hydraulic,bucket
Plain bucket,Grapple,Thumb bucket,Semi automatic,Sand bucket,Rake,quick change
Ripper,Auger,Break hammer,Root topper

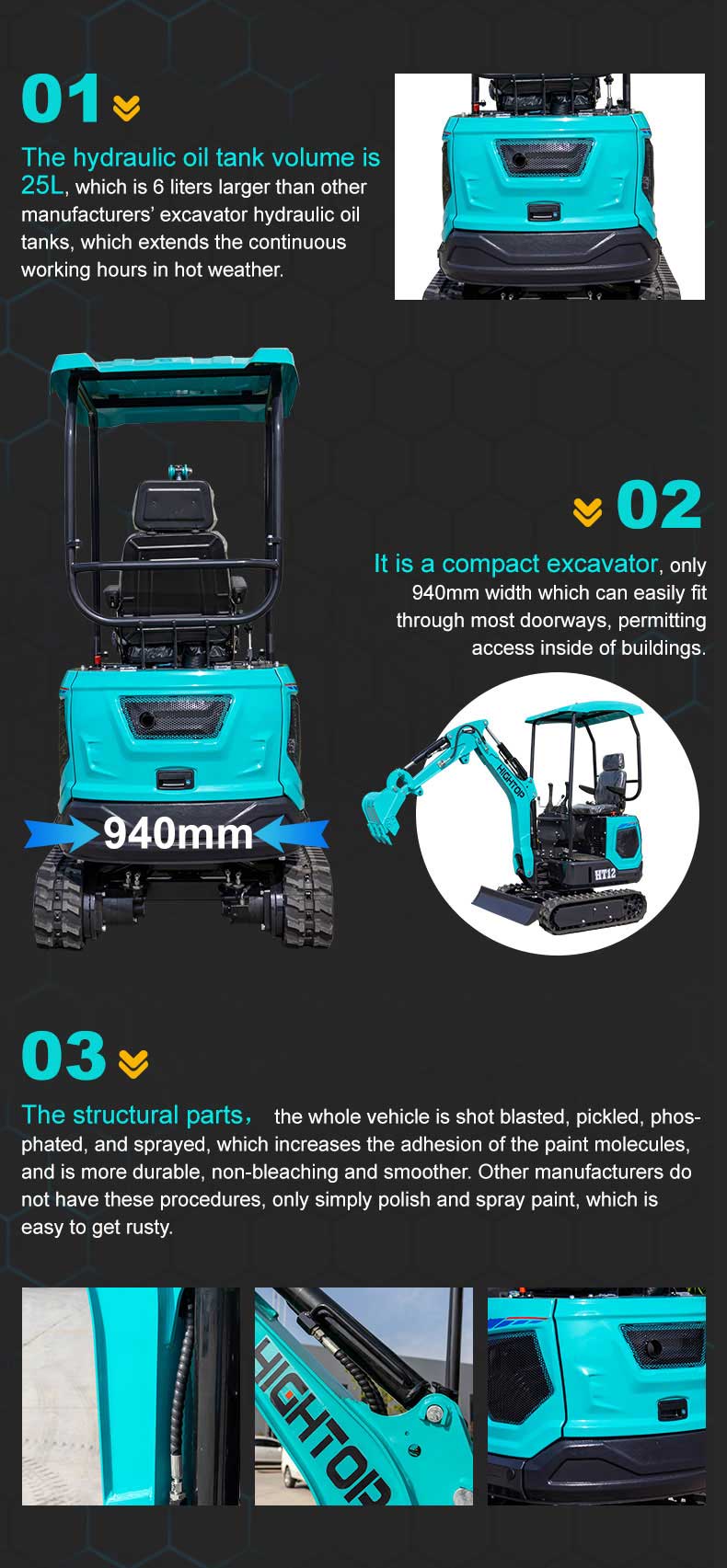

01-The hydraulic oil tank volume is 25L, which is 6 liters larger than other manufacturers'excavator hydraulic oil tanks, which extends the continuous working hours in hot weather.
02-It is a compact excavator, only 940mm width which can easily fit through most doorways, permitting access inside of buildings.
03-The structural parts, the whole vehicle is shot blasted, pickled, phosphated, and sprayed, which increases the adhesion of the paint molecules,and is more durable, non-bleaching and smoother. Other manufacturers do not have these procedures, only simply polish and spray paint, which is easy to get rusty.

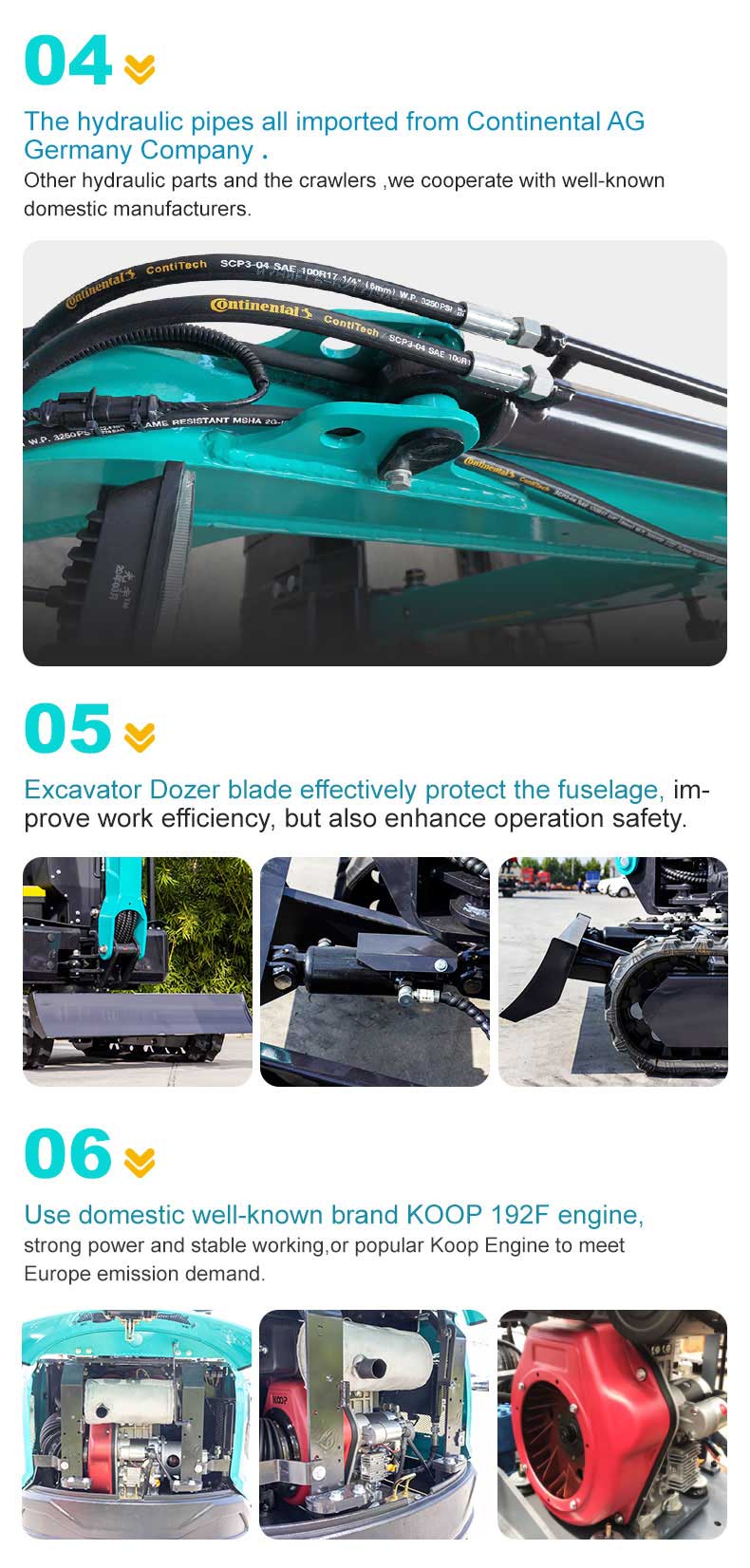

04-The hydraulic pipes all imported from Continental AG Germany Company .
Other hydraulic parts and the crawlers ,we cooperate with well-known domestic manufacturers.
05-Excavator Dozer blade effectively protect the fuselage, improve work efficiency, but also enhance operation safety.
06-Use domestic well-known brand KOOP 192F engine, strong power and stable working,or popular Koop Engine to meet Europe emission demand.

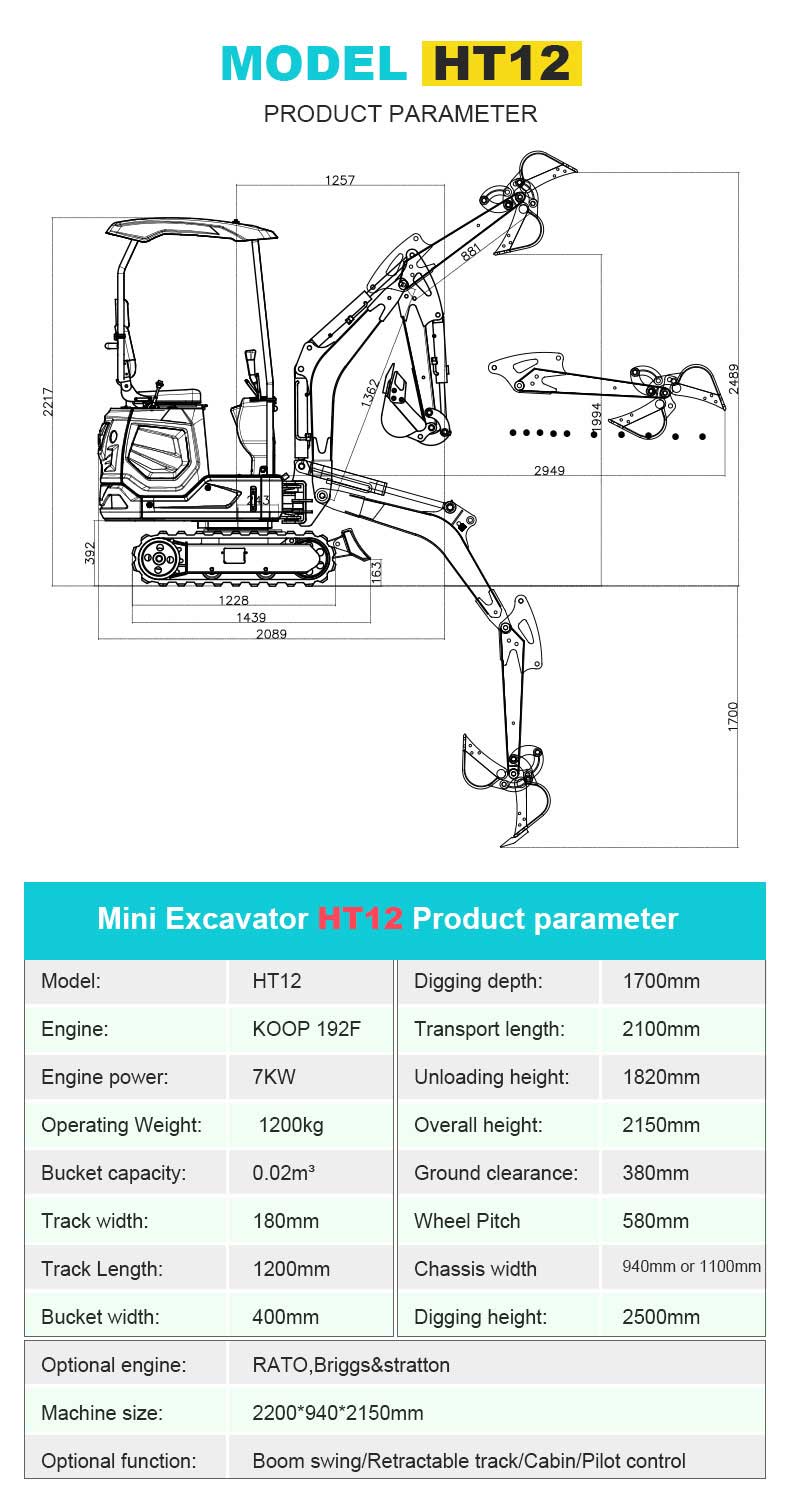

HT12 Mini Excavator Parameter
|
Model:
|
HT12
|
|
Engine:
|
KOOP 192F
|
|
Optional engine:
|
RATO,Briggs&stratton
|
|
Engine power:
|
7KW
|
|
Operating Weight
|
1200kg
|
|
Bucket capacity:
|
0.02m³
|
|
Track width:
|
180mm
|
|
Track Length:
|
1200mm
|
|
Bucket width:
|
400mm
|
|
Digging height:
|
2500mm
|
|
Digging depth:
|
1700mm
|
|
Transport length:
|
2100mm
|
|
Unloading height:
|
1820mm
|
|
Overall height:
|
2150mm
|
|
Ground clearance:
|
380mm
|
|
Wheel Pitch
|
580mm
|
|
Chassis width
|
940mm or 1100mm
|
|
Machine size:
|
2200*940*2150mm
|
|
Optional function:
|
Boom swing
|
|
|
Retractable track
|
|
|
Cabin
|
|
|
Pilot control
|

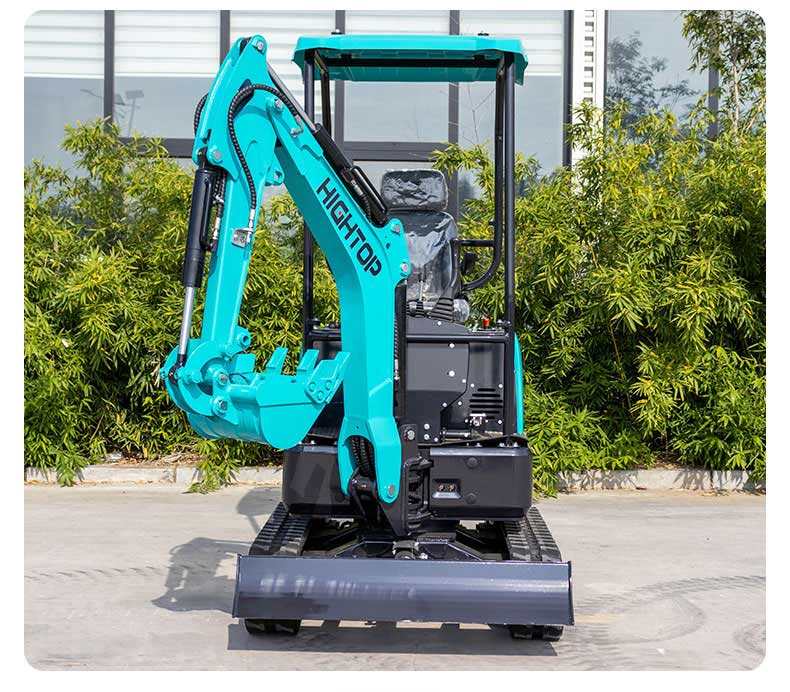

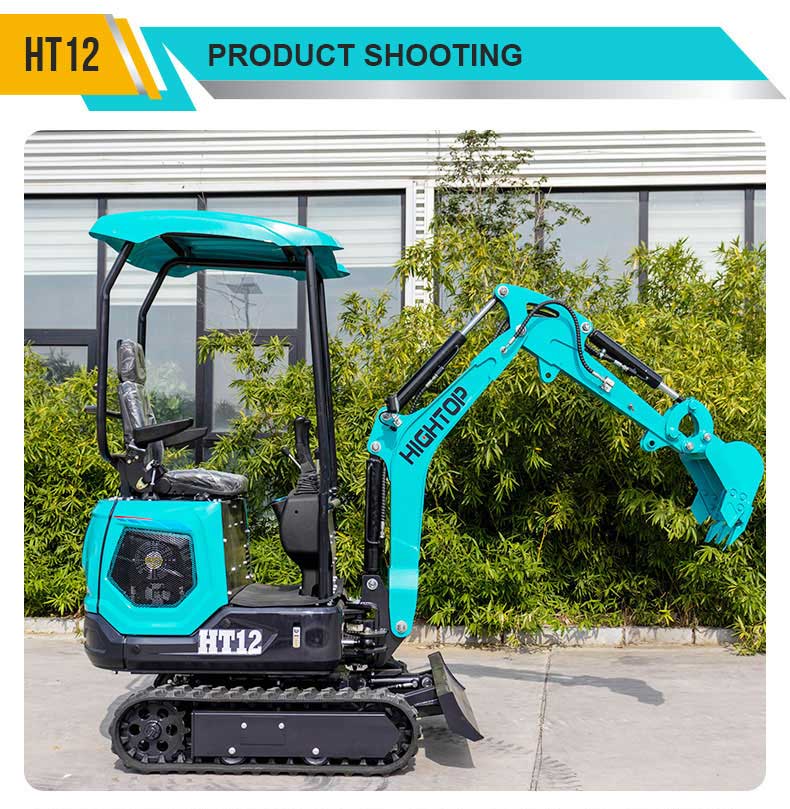

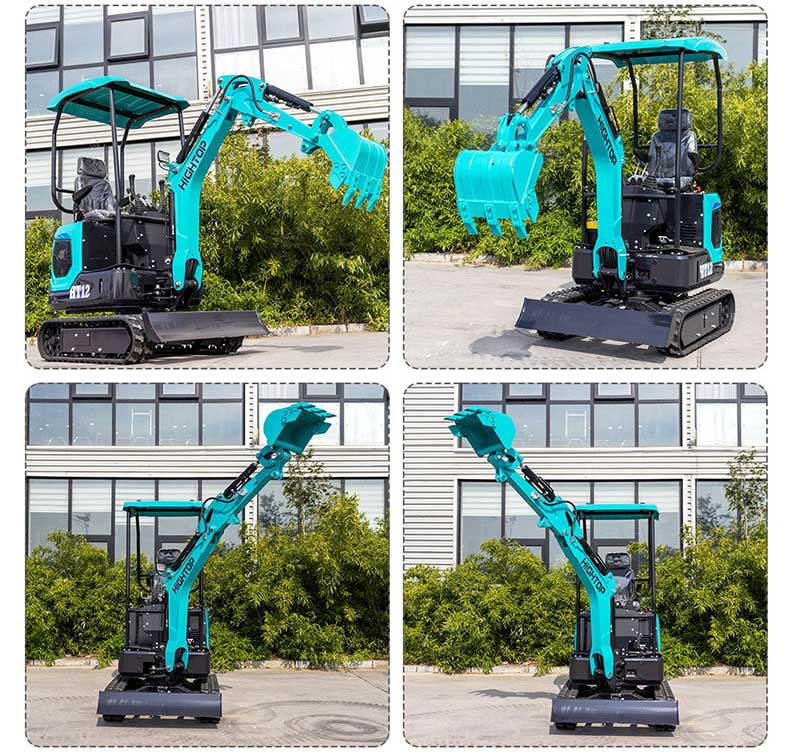

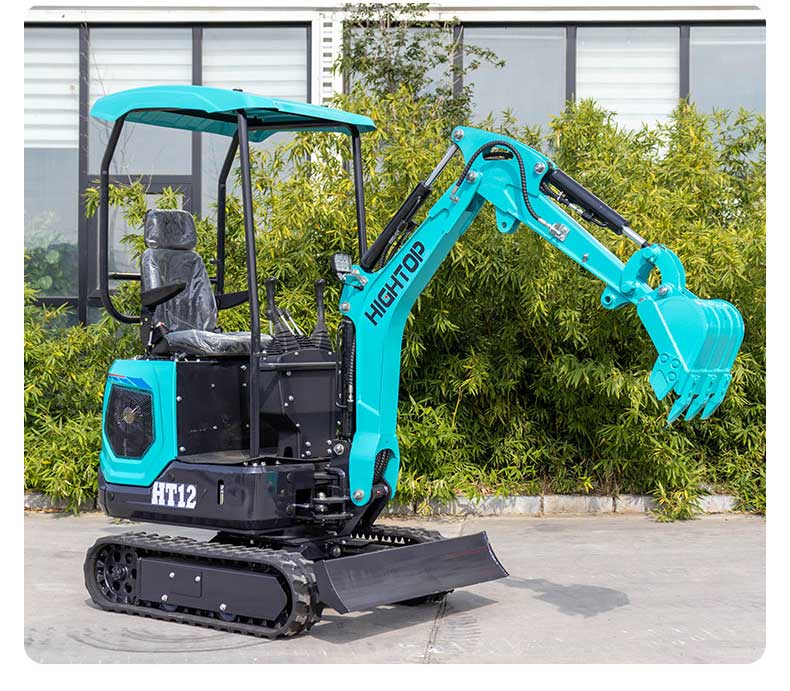

HT12 Mini Excavator Images
