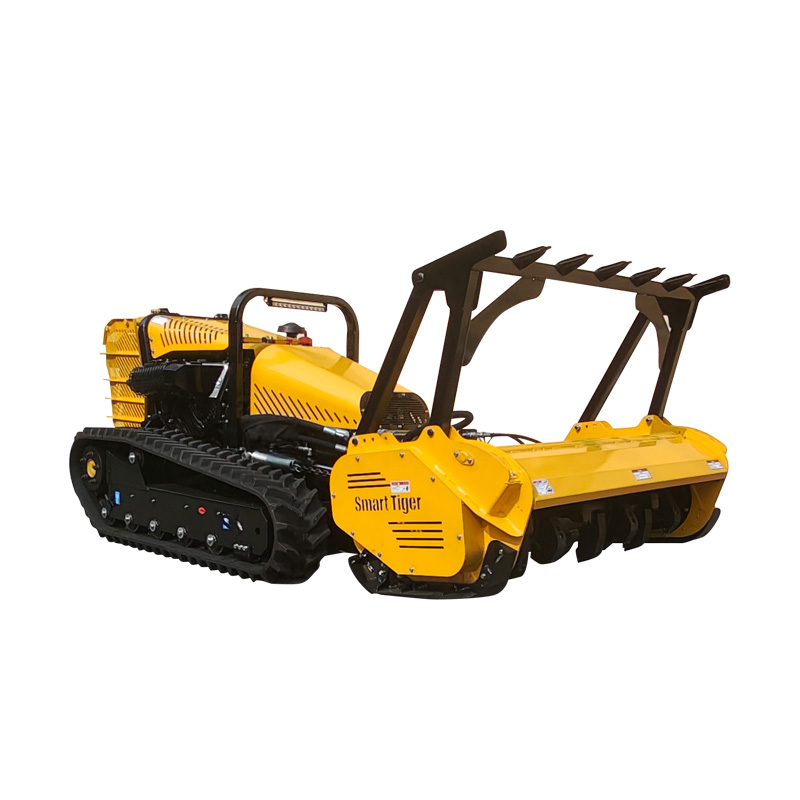

Smartiger 40 |
|
ENGINE |
|
Maker |
YANMAR /CHANGHAI |
Type |
4-cycle, Inline, Water-cooled Diesel |
Torque |
107.7 Nm |
Fuel |
Diesel |
Fuel tank capacity |
28 litres |
Combustion system |
Direct Injection |
Gross output |
28.2Kw (38.3Hp) @2600rpm |
Transmission |
Fine control hydrostatic |
Water-cooled radiator |
2-core heavy duty |
Self-cleaning(optional) |
Standard manual and |
HYDRAULICS |
|
Pumps
|
3-tandem piston pump |
|
Pumps 1 gear pump (P&G) |
Driving motors |
High torque motor (Poclain) |
Flail head motor |
High speed motor (P&G) |
Independent flail head circuit |
Closed circuit piston |
Independent track drive circuit |
2× closed circuit piston |
Independent motions circuit |
Opend circuit gear |
Oil tank capacity |
23 litres (40 letres held in system) |
Attachment capacity |
750kg |
TRACKS |
|
Rubber |
Hieghtened teeth rubber track (max working angle 55°) |
REMOTE CONTROL |
|
Working range |
>150m |
Frequency |
434MHz |
Battery |
Interchageable, rechargeable Two with each unit charge on machine |
Propotional Joysticks |
Standard |
DIMENSIONS |
|
Overall width (with flail head) |
1500mm |
Overall width (with flail head) |
2900mm |
Overall height (with flail head) |
1300mm |
Smartiger |
1250Kg |
Flail head |
200Kg |
PROTECTION AND SAFETY |
|
Emergency stop |
One-touch shut-off switch |
Over-slope |
Automatic waring (Horn+Light) and shut-off |
Headlamp |
LED |
Signal loss |
Automatic shut-off |
Others |
Automatic shut-off if hydraulic oil and lube pressure abnomaly |
PERFORMANCE |
|
Gradient
|
Working on slopes up to 55° in any direction(alarm at 50° and automatic shut-off at 55°) |
Potentiometer speed control (0 to 100%)
|
Working on slopes up to 55° in any direction(alarm at 50° and automatic shut-off at 55°) |
Parking |
Yes |
Steering |
Skid-steering (support pivot-steering) |
Travelling bias correction on slope |
Yes |
ATTACHMENT / FLAIL HEAD (STANDARD) |
|
Standard attachment |
Flail head |
Oil flow |
84L/min |
Pressure |
250bar |
Rotor speed |
3000rpm |
Front and rear flap |
Chain and rubber |
Flails |
Y-Flails for grass cutting and ligh wood up to 30mm diameter |
Rotor width |
1350mm |
Rotor diameter |
300mm |
Cutting height range (via roller adjustment) |
30mm-90mm (3 positions) flail can be lifted to cut higher than 90mm |
Hydraulic lift |
-200mm to 500mm |
Auto-float capacity |
Yes (follow ground contour up-down 10°) |
