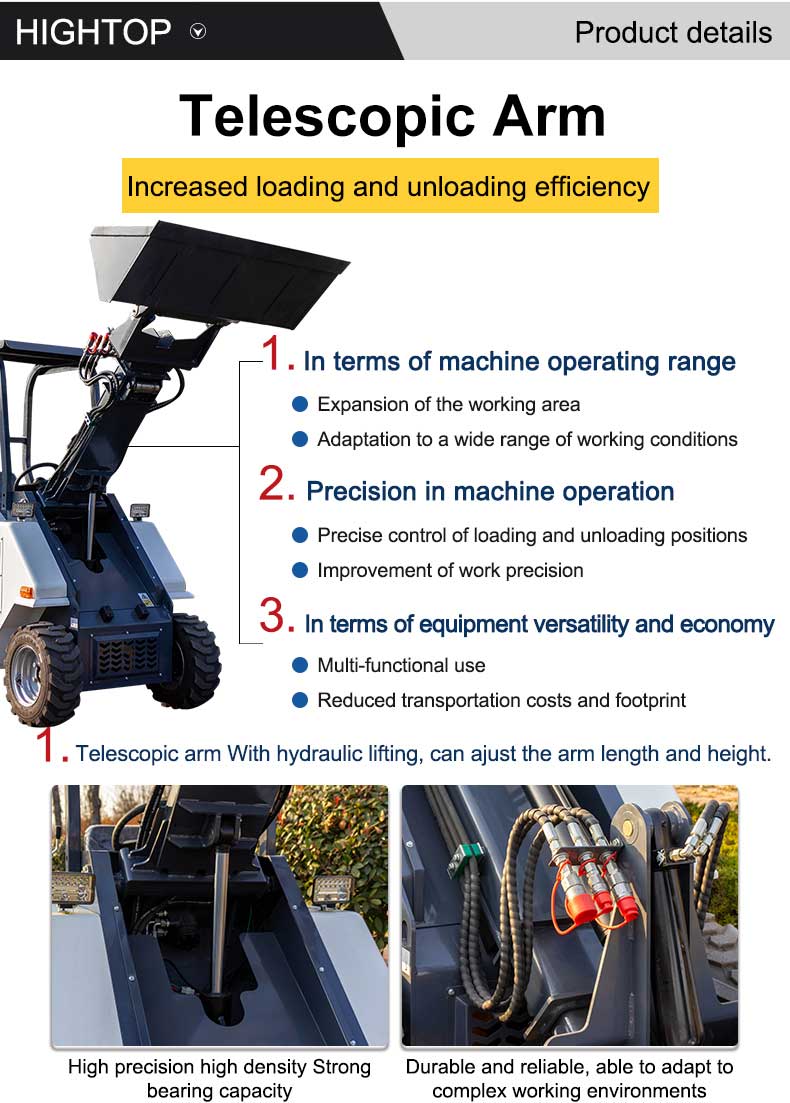

In terms of machine operating range
Expansion of the working area
Adaptation to a wide range of working conditions
Precision in machine operation
Precise control of loading and unloading positions
Improvement of work precision
In temms of equipment versatility and economy
Multi-functional use
Reduced transportation costs and footprint

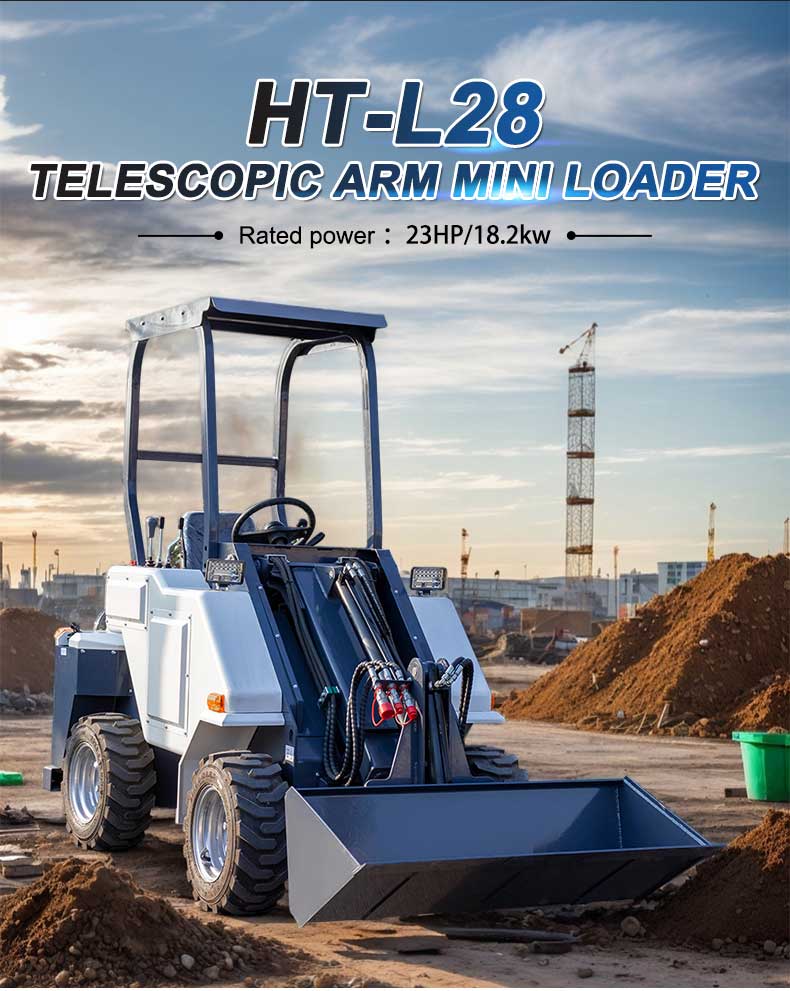

Telescopic arm With hydraulic lifting, can ajust the arm length and height
High precision high density Strongbearing capacity
Durable and reliable, able to adapt tocomplex working environments

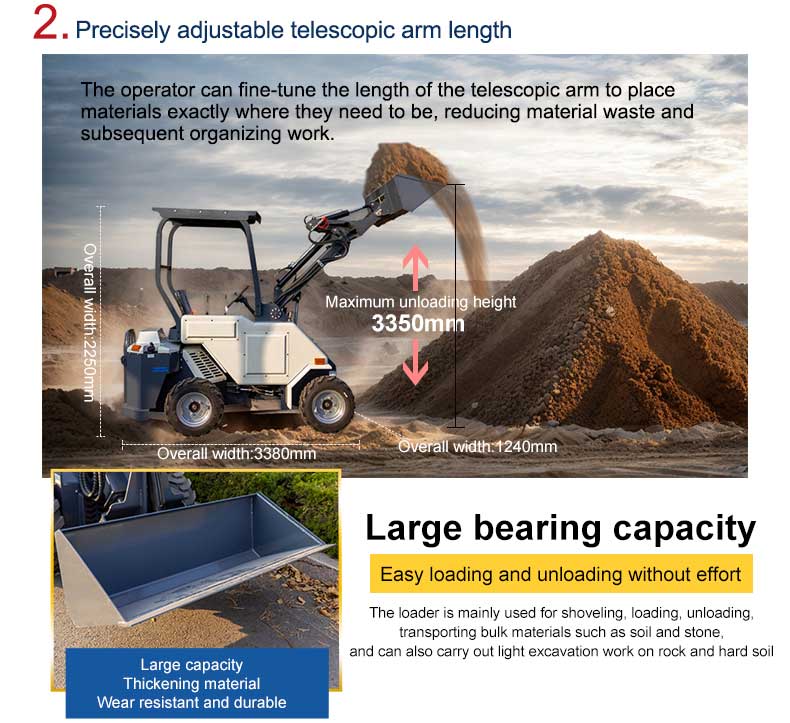

Precisely adjustable telescopic arm length
The operator can fine-tune the length of the telescopic arm to placematerials exactly where they need to be, reducing material waste andsubsequent organizing work.

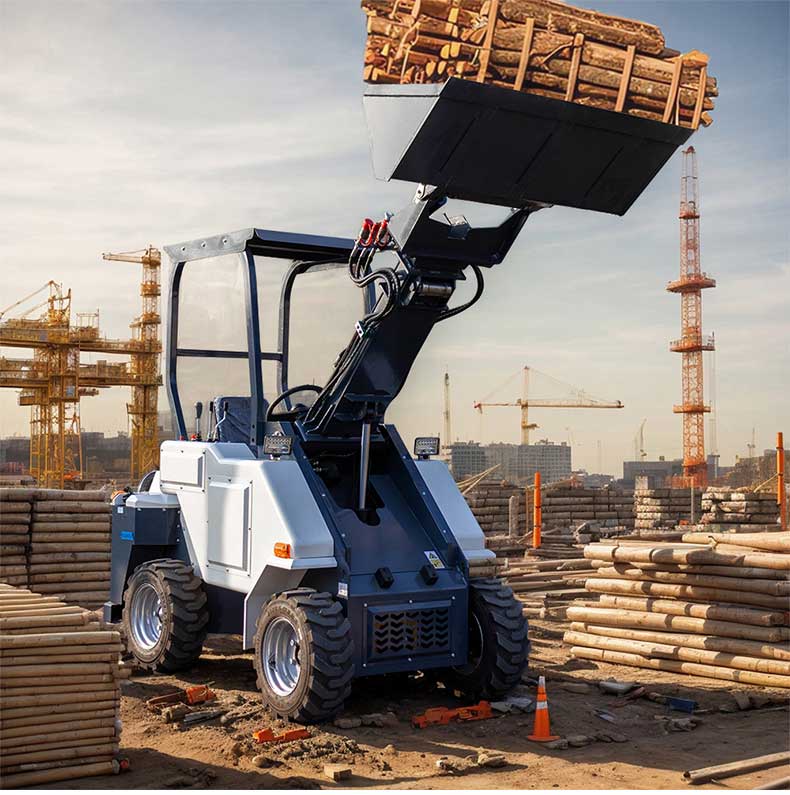

Large bearing capacity
Easy loading and unloading without effort
The loader is mainly used for shoveling, loading, unloadingtransporting bulk materials such as soil and stone,and can also carry out light excavation work on rock and hard soil
The loader telescopic amm can be replaced by different accessories,suchas grab, hook, crushing hammer, etc., to achieve a variety of functions.
|

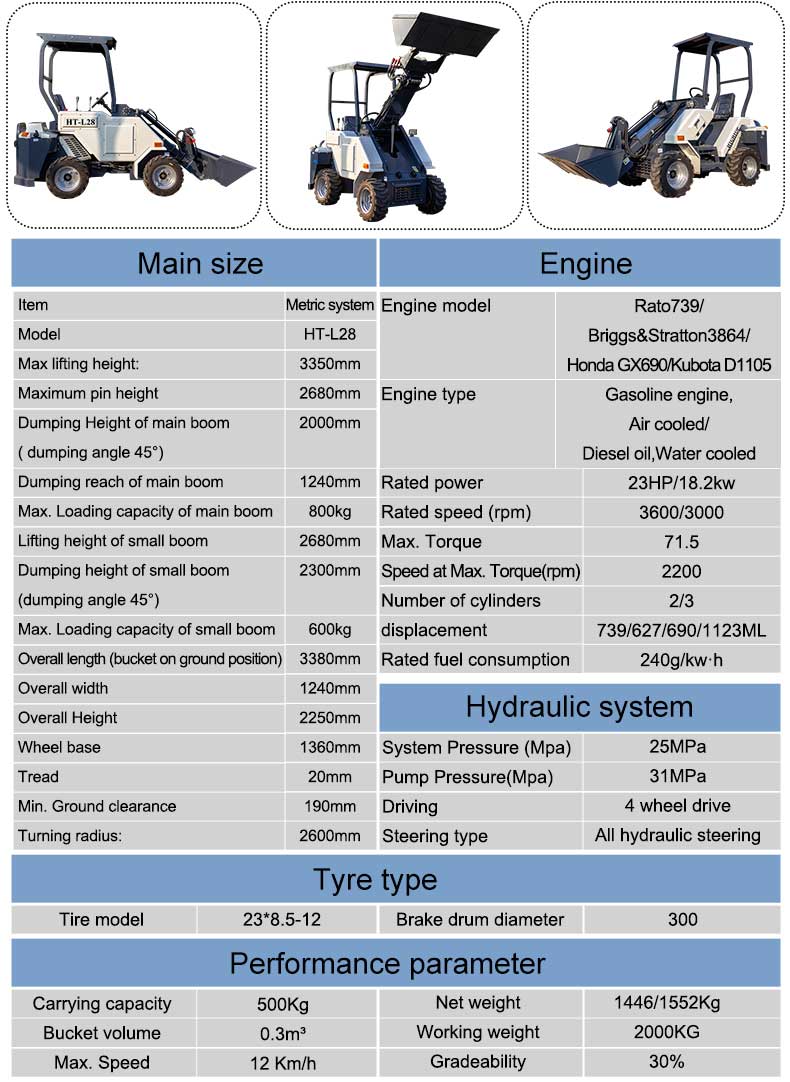

Item |
Metric system |
|
Model |
HT-L28 |
|
Max lifting height: |
3350mm |
|
Maximum pin height |
2680mm |
|
Dumping Height of main boom( dumping angle 45°) |
2000mm |
|
Dumping reach of main boom |
1240mm |
|
Max. Loading capacity of main boom |
800kg |
|
Lifting height of small boom |
2680mm |
|
Dumping height of small boom (dumping angle 45°) |
2300mm |
|
Max. Loading capacity of small boom |
600kg |
|
Overall length (bucket on ground position) |
3380mm |
|
Overall width |
1240mm |
|
Overall Height |
2250mm |
|
Wheel base |
1360mm |
|
Tread |
20mm |
|
Min. Ground clearance |
190mm |
|
Turning radius: |
2600mm |
|
Engine |
|
|
Engine model |
Rato739/Briggs&Stratton3864/Honda GX690/Kubota D1105 |
|
Engine type |
Gasoline engine,Air cooled/Diesel oil,Water cooled |
|
Rated power |
23HP/18.2kw |
|
Rated speed (rpm) |
3600/3000 |
|
Max. Torque |
71.5 |
|
Speed at Max. Torque(rpm) |
2200 |
|
Number of cylinders |
2/3 |
|
displacement |
739/627/690/1123ML |
|
Rated fuel consumption |
240g/kw·h |
|
Hydraulic system |
|
|
System Pressure (Mpa) |
25MPa |
|
Pump Pressure(Mpa) |
31MPa |
|
Driving |
4 wheel drive |
|
Steering type |
All hydraulic steering |
|
Tyre type |
|
|
Tire model |
23*8.5-12 |
|
Brake drum diameter |
300 |
|
Performance parameter |
|
|
Carrying capacity |
500Kg |
|
Bucket volume |
0.3m³ |
|
Max. Speed |
12 Km/h |
|
Net weight: |
1446/1552Kg |
|
Working weight: |
2000KG |
|
Gradeability |
30% |
