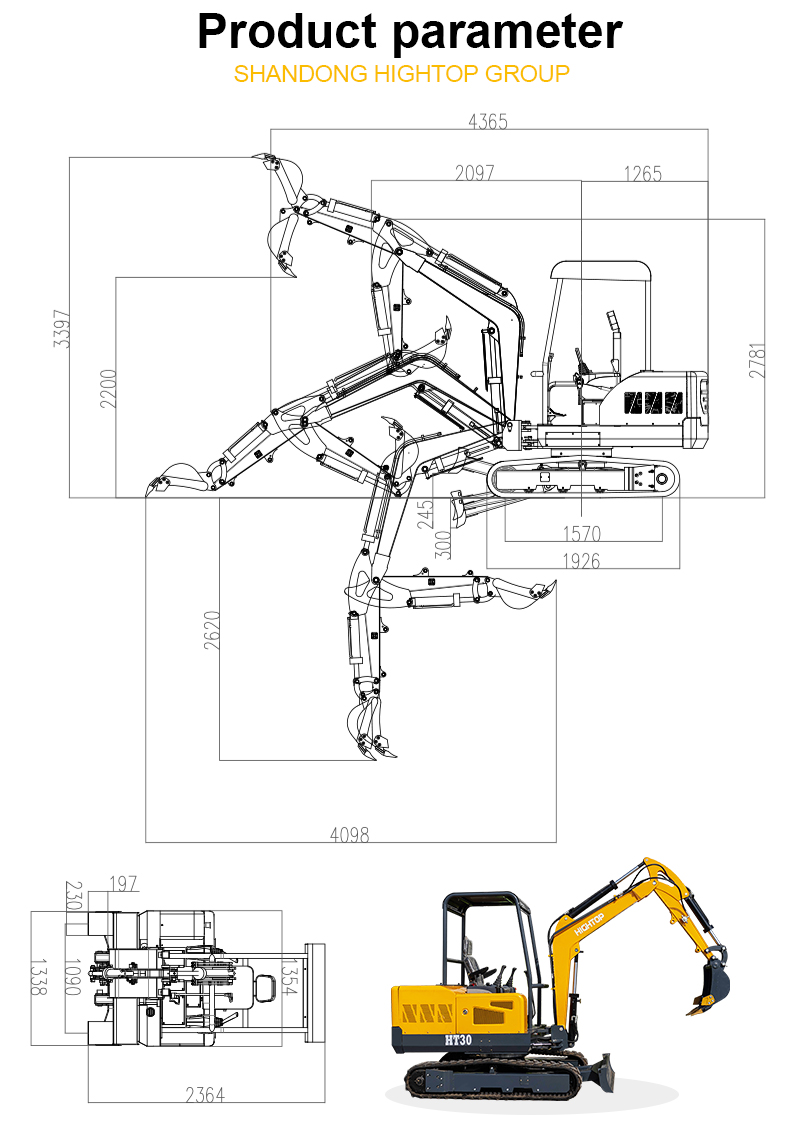

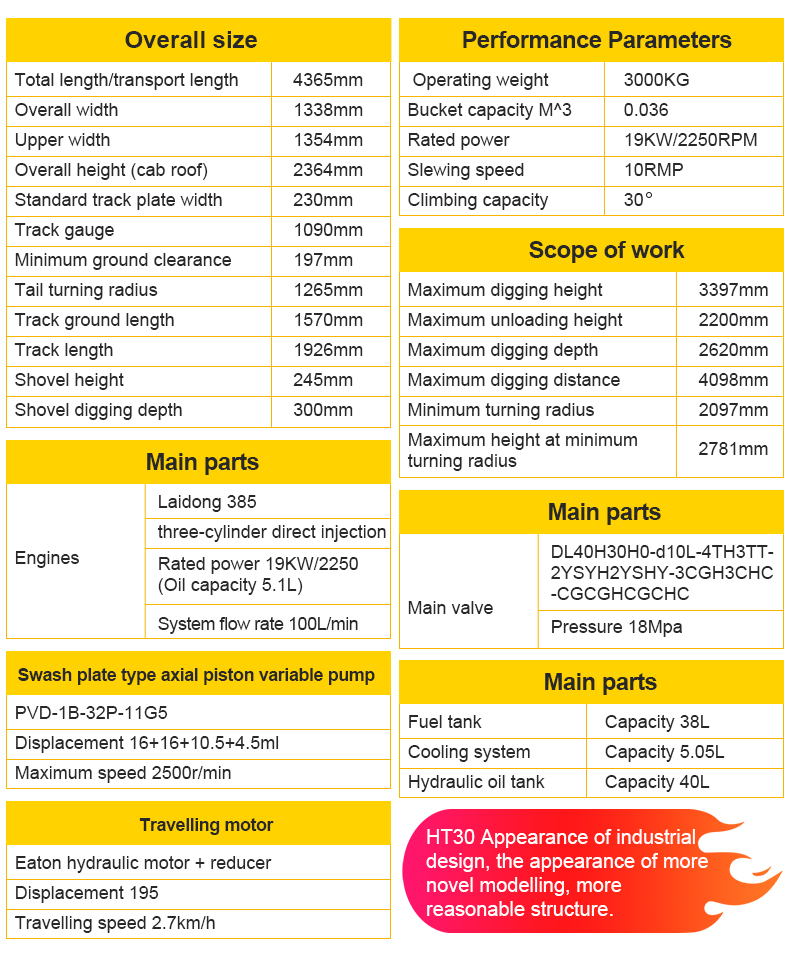

Overall size |
|
|
Total length/transport length |
4365mm |
|
Overall width |
1338mm |
|
Upper width |
1354mm |
|
Overall height(cab roof) |
2364mm |
|
Standard track plate width |
230mm |
|
Track gauge |
1090mm |
|
Minimum ground clearance |
197mm |
|
Tail turning radius |
1265mm |
|
Track ground length |
1570mm |
|
Track length |
1926mm |
|
Shovel height |
245mm |
|
Shovel digging depth |
300mm |
|

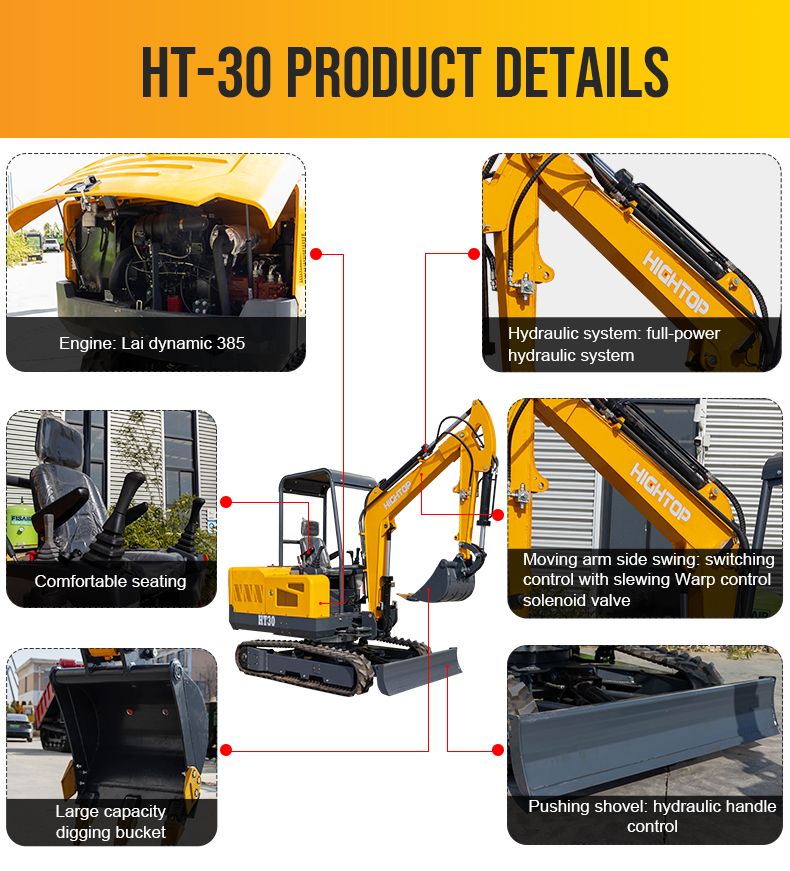

Main parts |
|
|
Engines |
Laidong 385 |
|
|
three-cylinder direct injection |
|
|
Rated power 19KW/2250(Oil capacity 5.1L) |
|
|
System flow rate 100L/min |
|

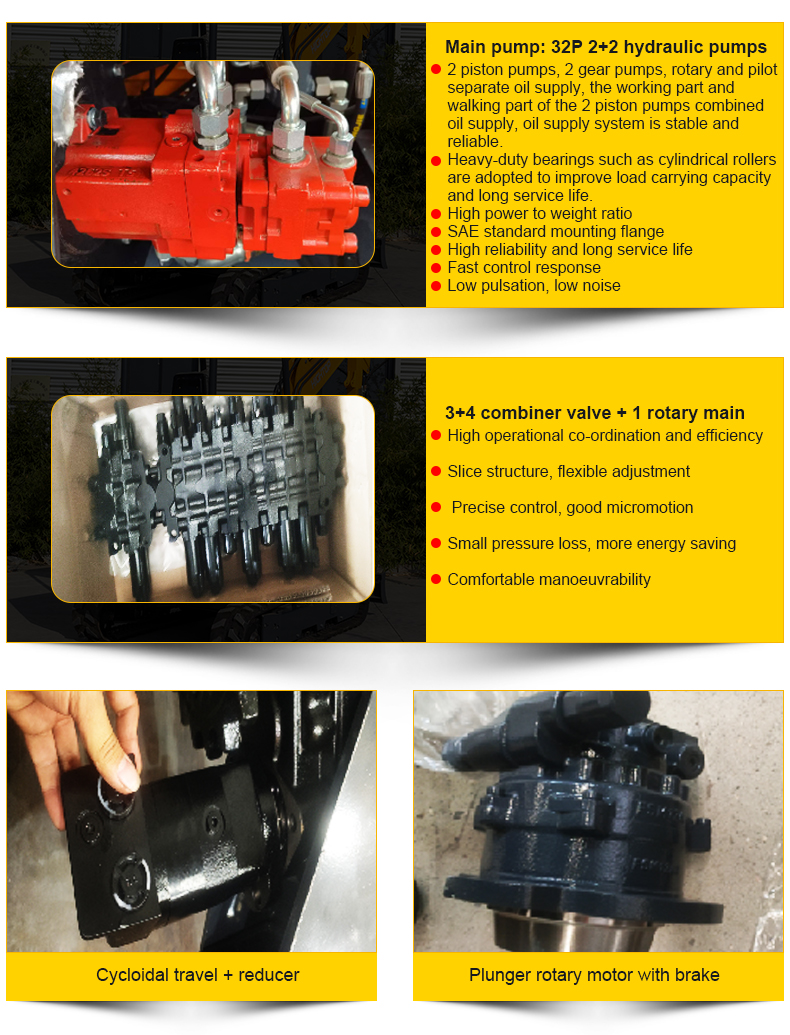

Swash plate type axial piston variable pump |
Travelling motor |
|
PVD-1B-32P-11G5 |
Eaton hydraulic motor + reducer |
|
Displacement 16+16+10.5+4.5ml |
Displacement 195 |
|
Maximum speed 2500r/min |
Travelling speed 2.7km/h |
|
PVD-1B-32P-11G5 |
|
|
Performance Parameters |
|
|
Operating weight |
3000KG |
|
Bucket capacity M^3 |
0.036 |
|
Rated power |
19KW/2250RPM |
|
Slewing speed |
10RMP |
|
Climbing capacity |
30° |
|
Scope of work |
|
|
Maximum digging height |
3397mm |
|
Maximum unloading height |
2200mm |
|
Maximum digging depth |
2620mm |
|
Maximum digging distance |
4098mm |
|
Minimum turning radius |
2097mm |
|
Maximum height at minimumturning radius |
2781mm |
|
Main parts |
|
|
Main valve |
DL40H30H0-d10L-4TH3TT-2YSYH2YSHY-3CGH3CHCCGCGHCGCHC |
|
|
Pressure 18Mpa |
|
Main parts |
|
|
Fuel tank |
Capacity 38L |
|
Cooling system |
Capacity 5.05L |
|
Hydraulic oil tank |
Capacity 40L |
