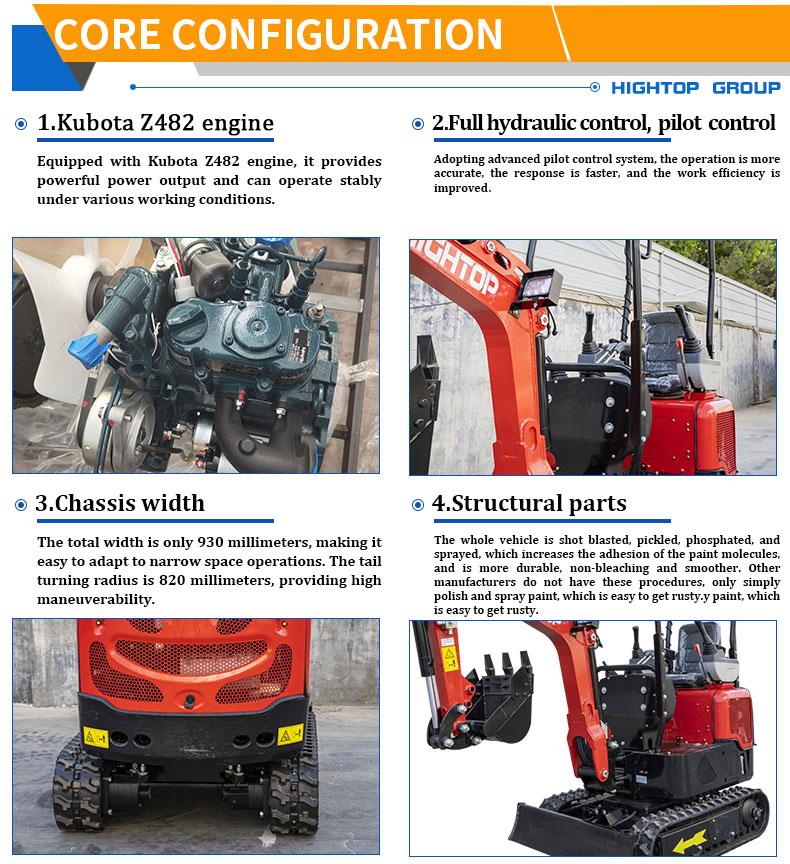

1.Kubota Z482 engine
Equipped with Kubota Z482 engine, it providespowerful power output and can operate stablyunder various working conditions.
2.Full hydraulic control, pilot control
o)
Adopting advanced pilot control system, the operation is moreaccurate,the response is faster,and the work efficiency isimproved.
3.Chassis width
The total width is only 930 millimeters, making iteasy to adapt to narrow space operations. The tailturning radius is 820 millimeters, providing highmaneuverability.
4.Structural parts
The whole vehicle is shot blasted, pickled, phosphated, andsprayed, which increases the adhesion of the paint moleculesand is more durable,non-bleaching and smoother. Othermanufacturers do not have these procedures,only simplypolish and spray paint, which is easy to get rusty.y paint, whichis easy to get rusty.

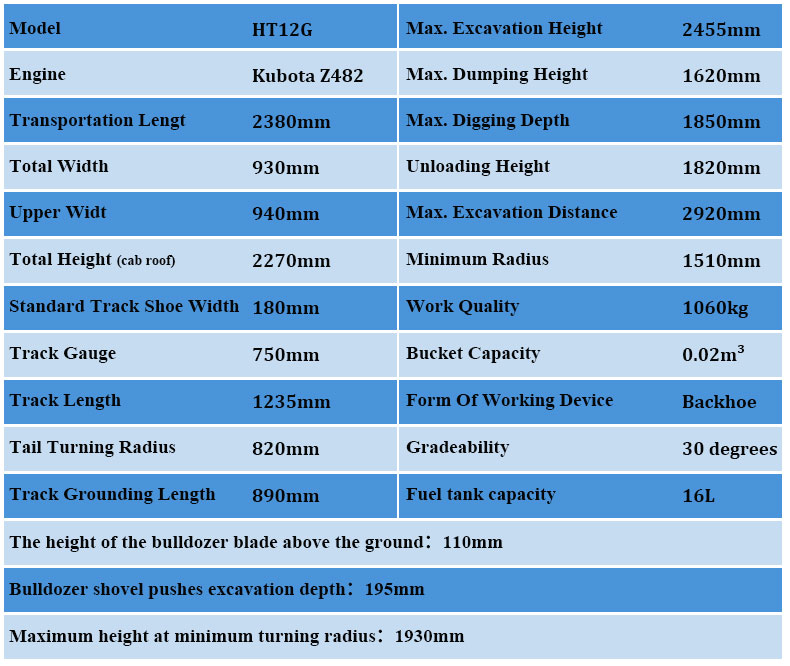

| Model:HT12G | Maximum excavation height：2455mm |
| Engine：Z482 Kubota Z482 | Maximum Dumping Height：1620mm |
| Transportation length：2380mm | Maximum Digging Depth ：1850mm |
| Total width：930mm | Maximum excavation distance：2920mm |
| Upper width：940mm | minimum radius：1510mm |
| Total height (cab roof) 2270mm | Maximum height at minimum turning radius：1930mm |
| Standard track shoe width：180mm | Work quality：900kg |
| Track gauge：750mm | Bucket capacity:0.02m³ |
| The height of the bulldozer blade above the ground：110mm | Form of working device:Backhoe |
| Bulldozer shovel pushes excavation depth：195mm | Gradeability:30 degrees |
| Tail turning radius：820mm | |
| Track grounding length：890mm | |
| Track length：1235mm |
