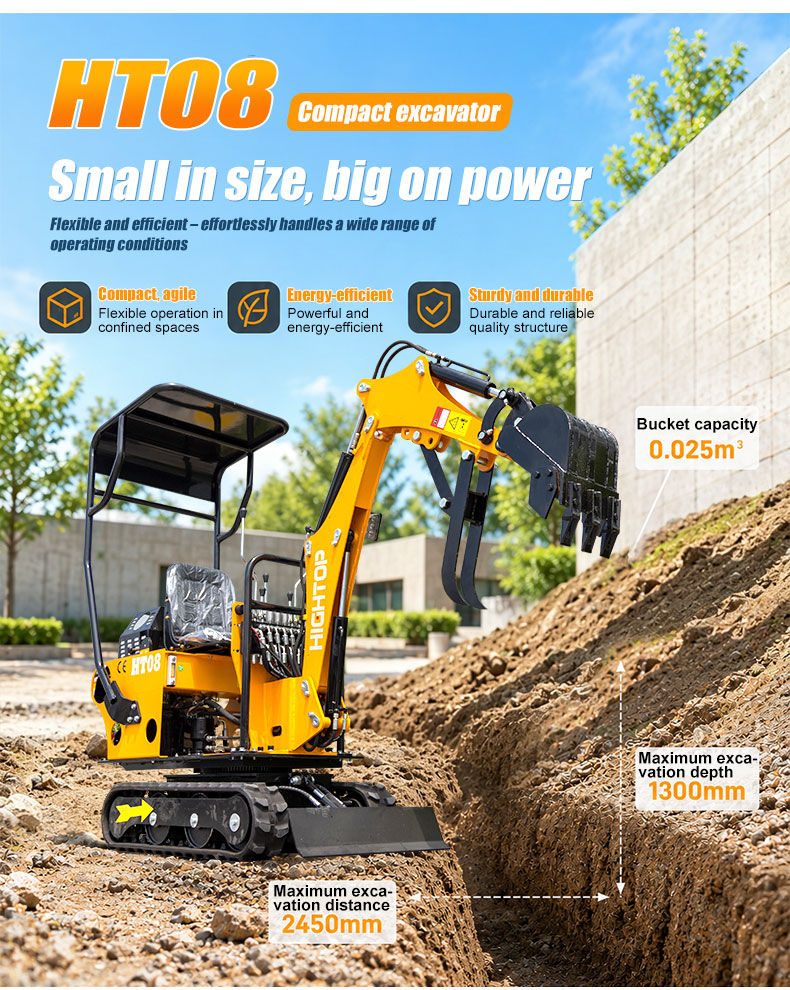

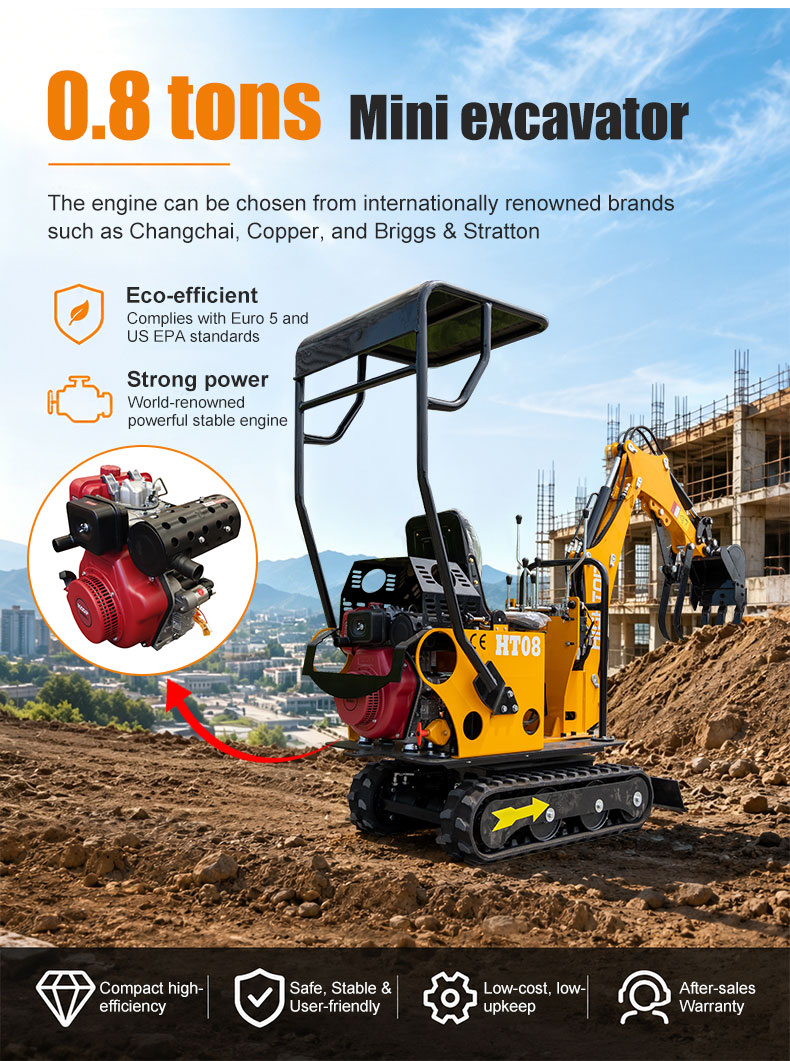

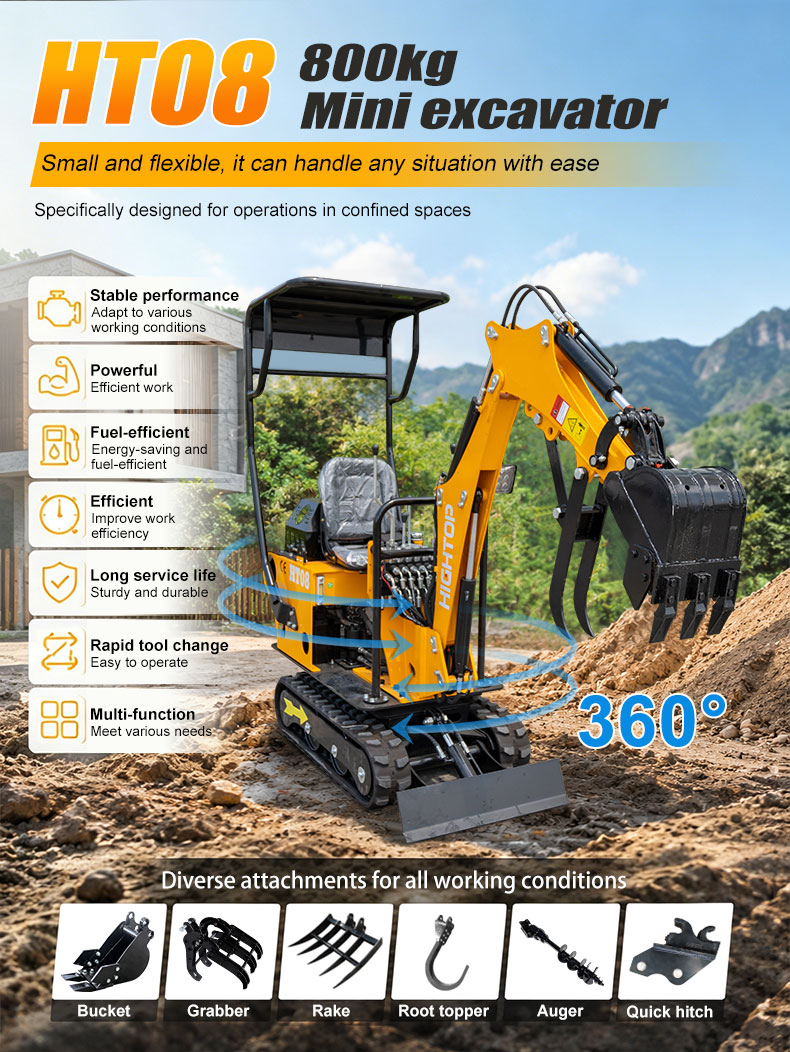

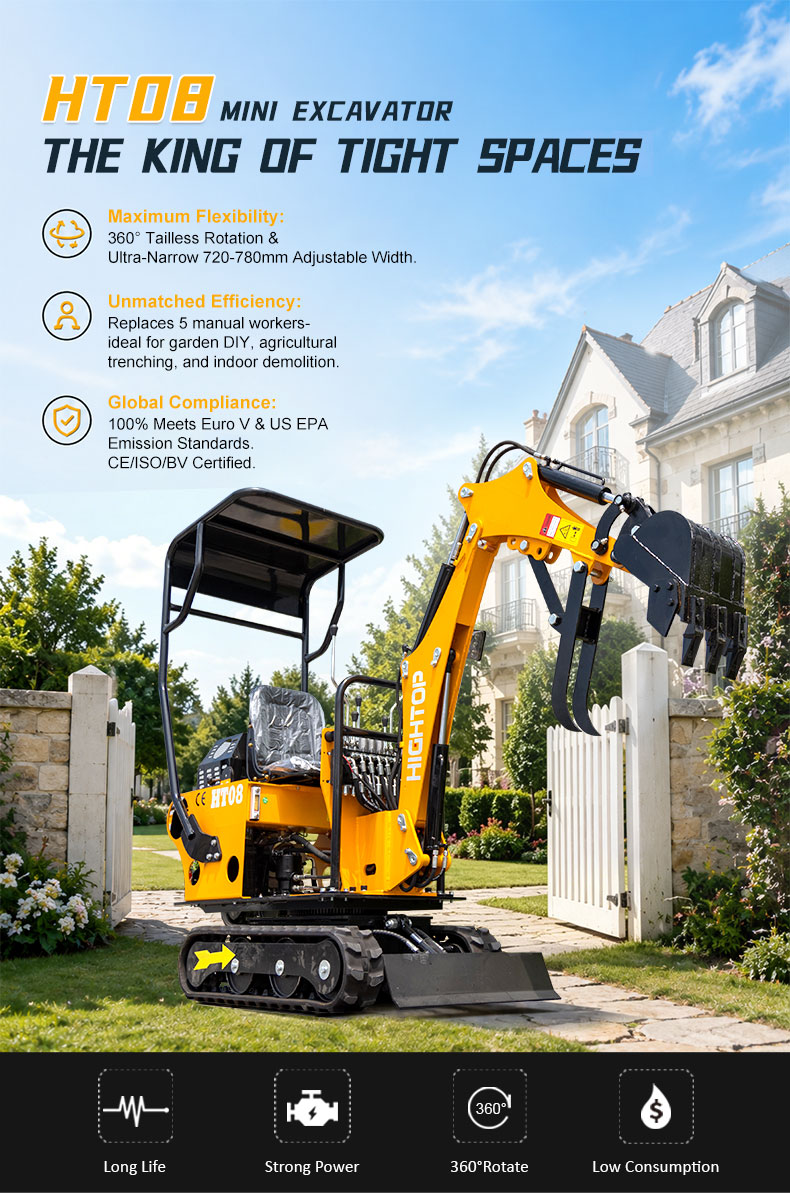

The maximum digging depth of HT08 compact excavator is 1300mm, the maximum digging distance is 2450mm, and the bucket capacity is 0.025 cubic meters.
1. Unique large arm structure design, not easy to break. The 0.8 ton mini excavator arm of some manufacturers has simple structure and is easy to break.

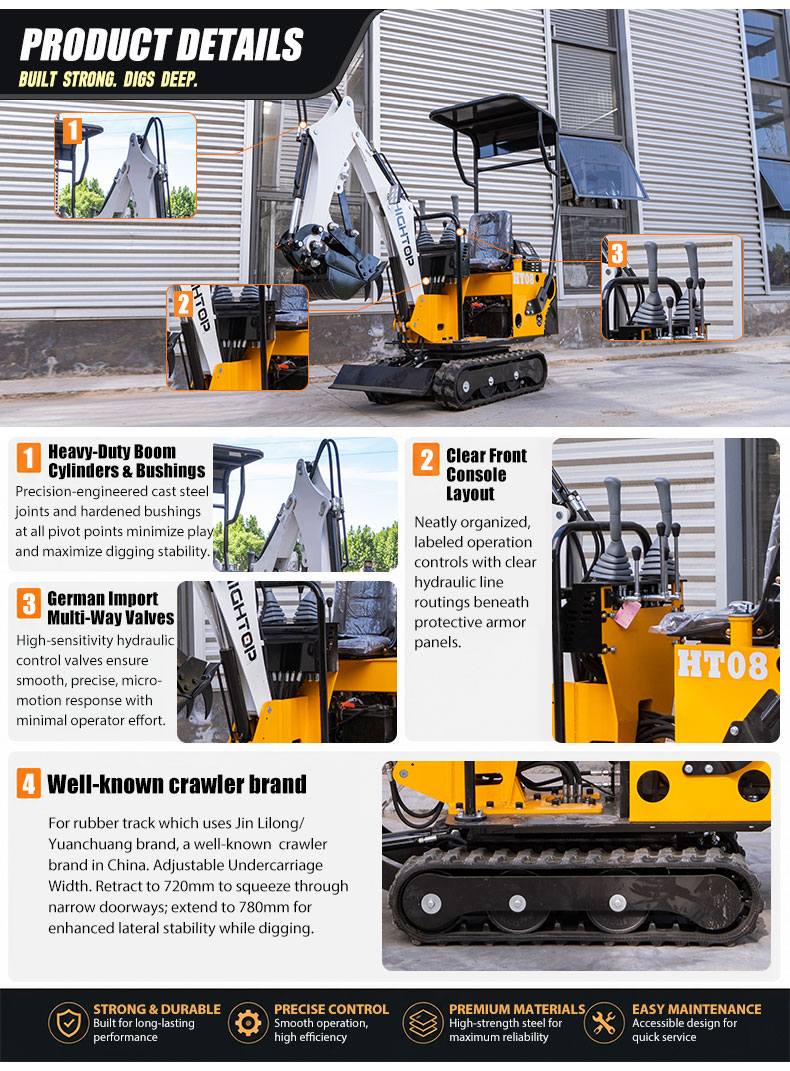

2 The pipes at the front end of the operation are clear and protected by a protective cover. Some brands of excavator pipes are exposed and have no protective cover.
3 boom cylinder adopts well-known brand, cylinder diameter integrated processing, more advanced than welding technology
4 All the structural parts are fine processed, after shot blasting, pickling, painting and other processes, the surface gloss is high, the paint adhesion is high.
5. The hydraulic pump of 0.8 tons of small excavator is pure cast iron pump, which is more wear-resistant and durable than aluminum pump at 3600 motor speed.
6. Hydraulic pipe procurement of high quality German imported pipe brand
7. The track of the excavator is also made of well-known brands, which is non-slip and wear-resistant, and the quality is guaranteed
8. The machine appearance design is beautiful, the color can be customized yellow, black and so on.
|

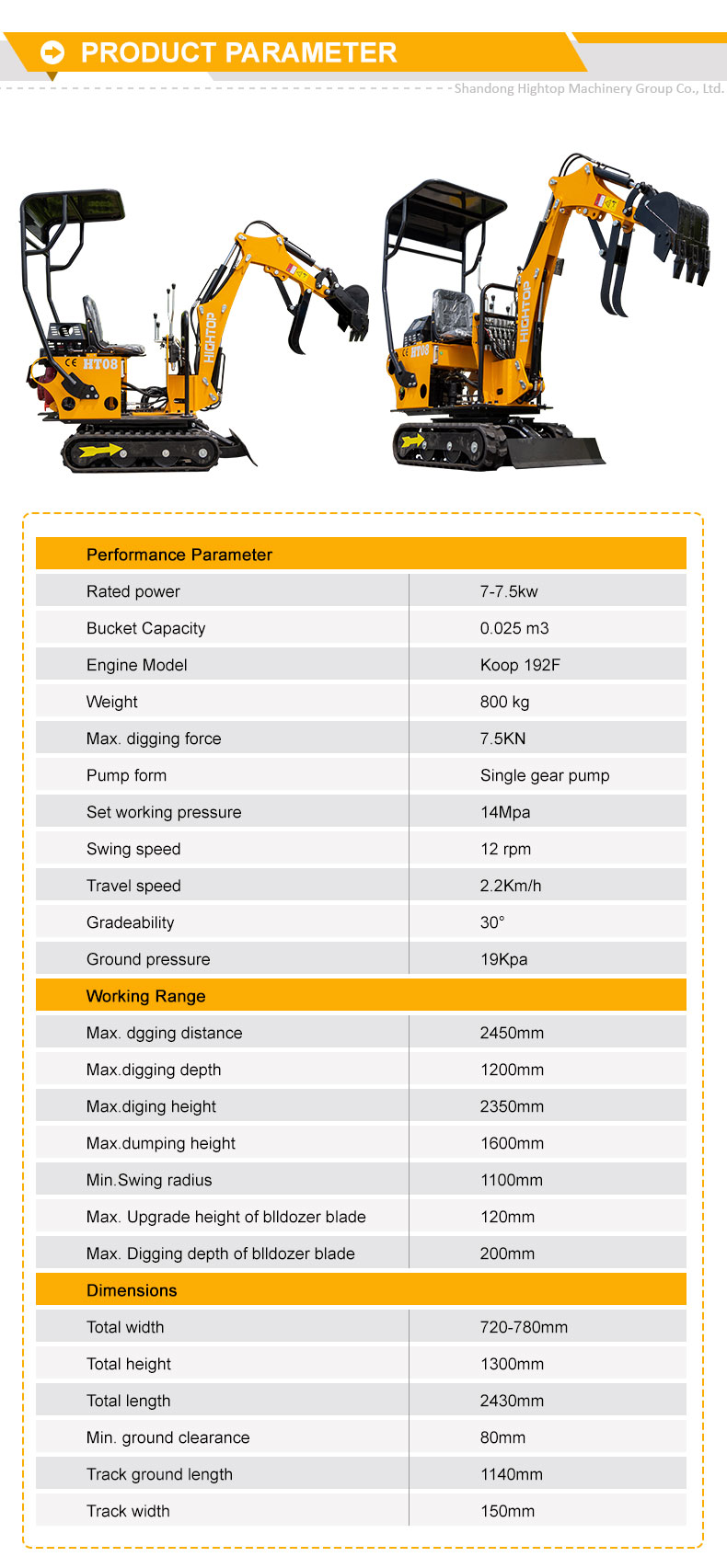

Performance Parameter |
|
|
Rated power |
7-7.5kw |
|
Bucket Capacity |
0.025 m3 |
|
Engine Model |
Koop 192 |
|
Weight |
800 kg |
|
Max. digging force |
7.5KN |
|
Pump form |
Single gear pump |
|
Set working pressure |
14Mpa |
|
Swing speed |
12 rpm |
|
Travel speed |
2.2Km/h |
|
Gradeability |
30° |
|
Ground pressure |
19Kpa |
|
Working Range |
|
|
Max. dgging distance |
2450mm |
|
Max.digging depth |
1200mm |
|
Max.diging height |
2350mm |
|
Max.dumping height |
1600mm |
|
Min.Swing radius |
1100mm |
|
Max. Upgrade height of blldozer blade |
120mm |
|
Max. Digging depth of blldozer blade |
200mm |
|
Dimensions |
|
|
Total width |
720-780mm |
|
Total height |
1300mm |
|
Total length |
2430mm |
|
Min. ground clearance |
80mm |
|
Track ground length |
1140mm |
|
Track width |
150mm |
