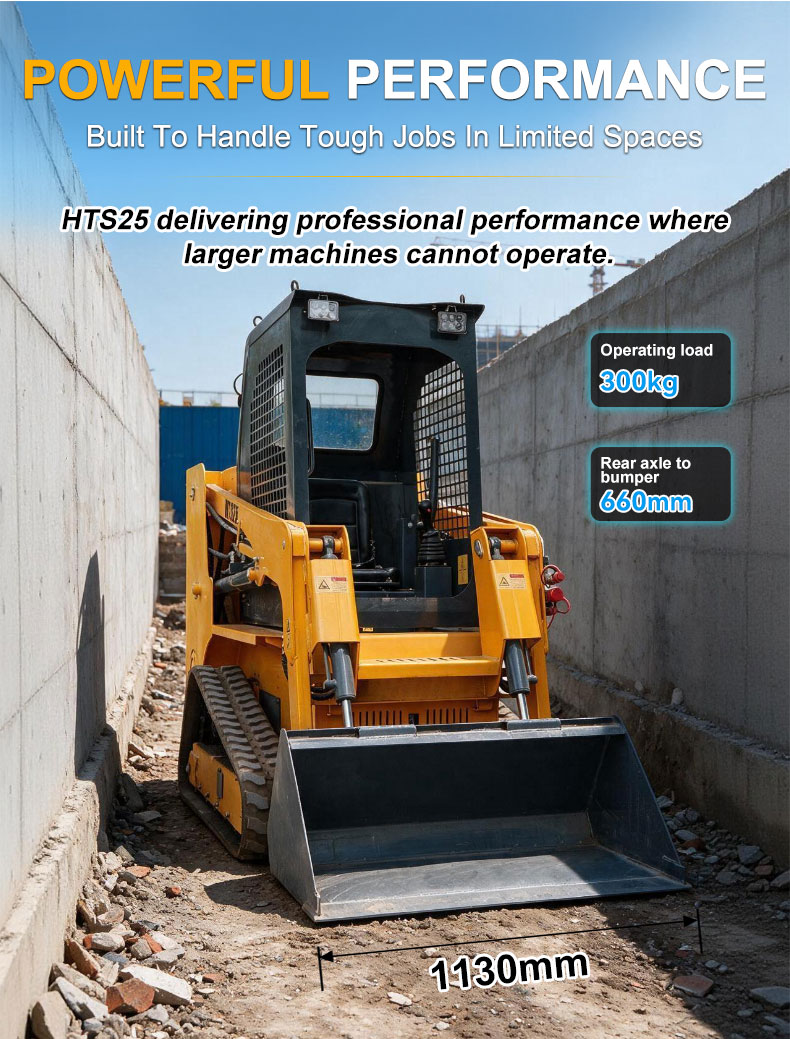

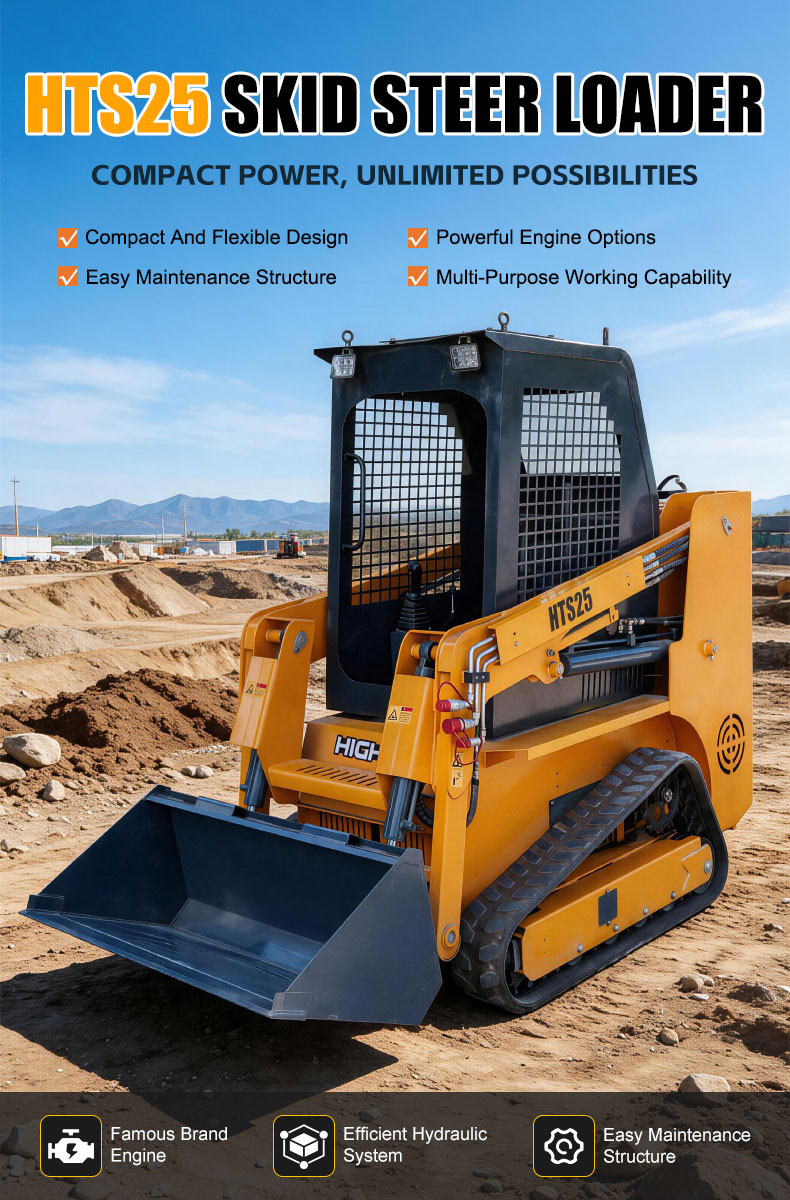

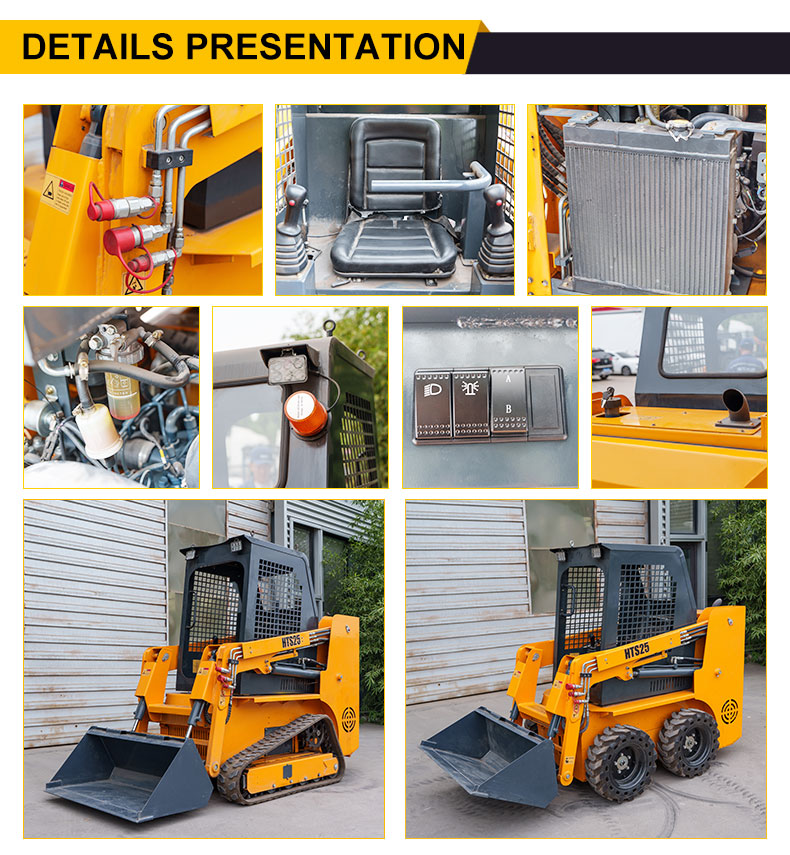

The HTS25 is a compact sliding loader from Shandong Hightop, available in both crawler and wheeled configurations. This micro compact model utilizes differential sliding steering of the two side walking mechanisms, featuring a narrow body with an almost zero turning radius, making it ideal for operations in confined spaces.
|

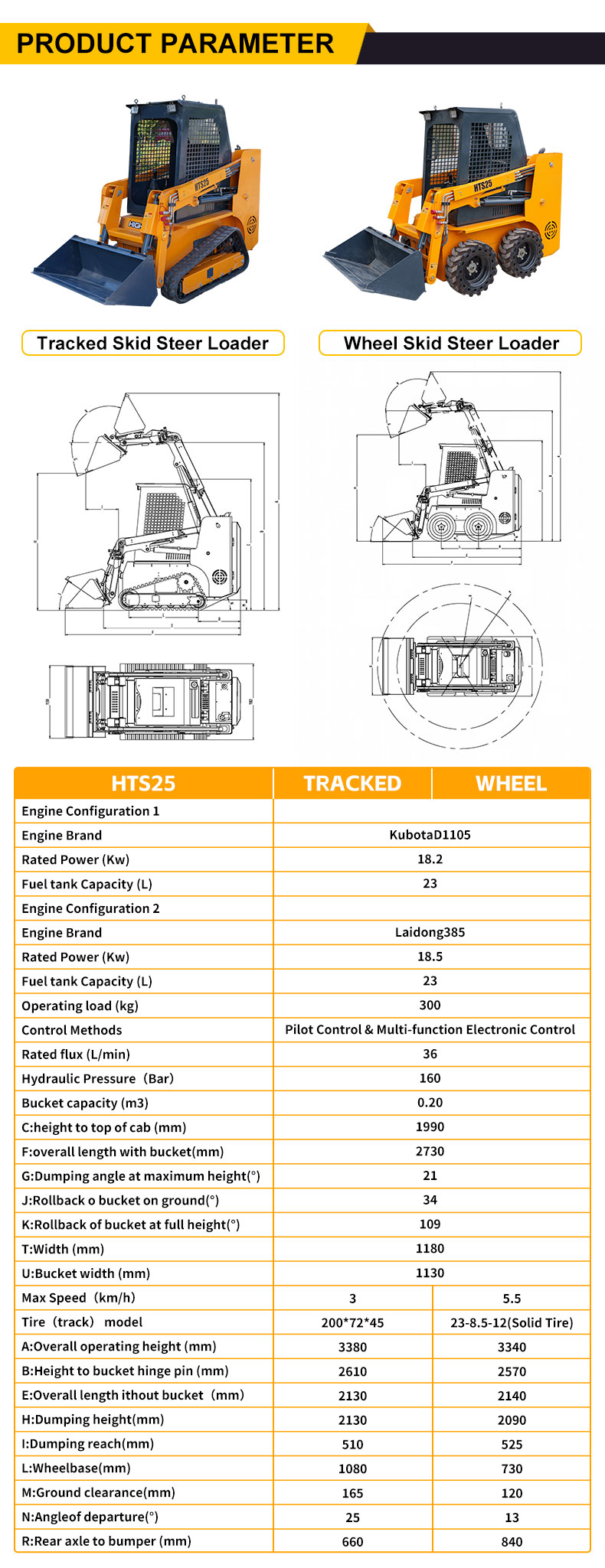

HTS25 |
TRACKED |
WHEEL |
|
Engine Configuration 1 |
|
|
|
Engine Brand |
KubotaD1105 |
|
|
Rated Power (Kw) |
18.2 |
|
|
Fueltank Capacity (L) |
23 |
|
|
Engine Configuration 2 |
|
|
|
Engine Brand |
Laidong385 |
|
|
Rated Power (Kw) |
18.5 |
|
|
Fuel tank Capacity (L) |
23 |
|
|
Operating load (kg) |
300 |
|
|
Control Methods |
Pilot Control & Multi-function Electronic Control |
|
|
Rated flux (L/min) |
36 |
|
|
Hydraulic Pressure (Bar) |
160 |
|
|
Bucket capacity (m3) |
0.20 |
|
|
C:height to top of cab (mm) |
1990 |
|
|
F:overall lengthwithbucket(mm) |
2730 |
|
|
G:Dumping angle at maximum height(°) |
21 |
|
|
J:Rollback o bucket on ground(°) |
34 |
|
|
K:Rollback of bucket at full height() |
109 |
|
|
T:Width (mm) |
1180 |
|
|
U:Bucket width (mm) |
1130 |
|
|
Max Speed (km/h) |
3 |
5.5 |
|
Tire (track) model |
200*72*45 |
23-8.5-12(Solid Tire) |
|

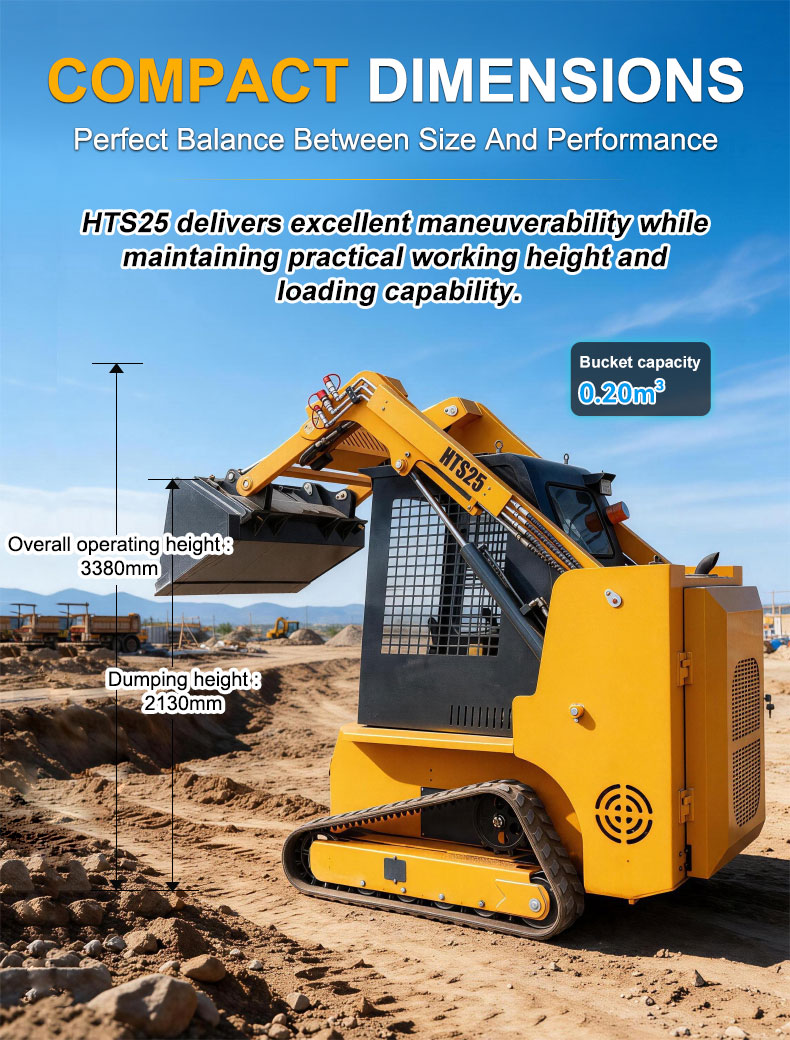

A:Overall operating height (mm) |
3380 |
3340 |
|
B:Height to bucket hinge pin (mm) |
2610 |
2570 |
|
E:Overall length ithout bucket (mm) |
2130 |
2140 |
|
H:Dumping height(mm) |
2130 |
2090 |
|
I:Dumping reach(mm) |
510 |
525 |
|
L:Wheelbase(mm) |
1080 |
730 |
|
M:Ground clearance(mm) |
165 |
120 |
|
N:Angleof departure(°) |
25 |
13 |
|
R:Rear axle to bumper (mm) |
660 |
840 |
