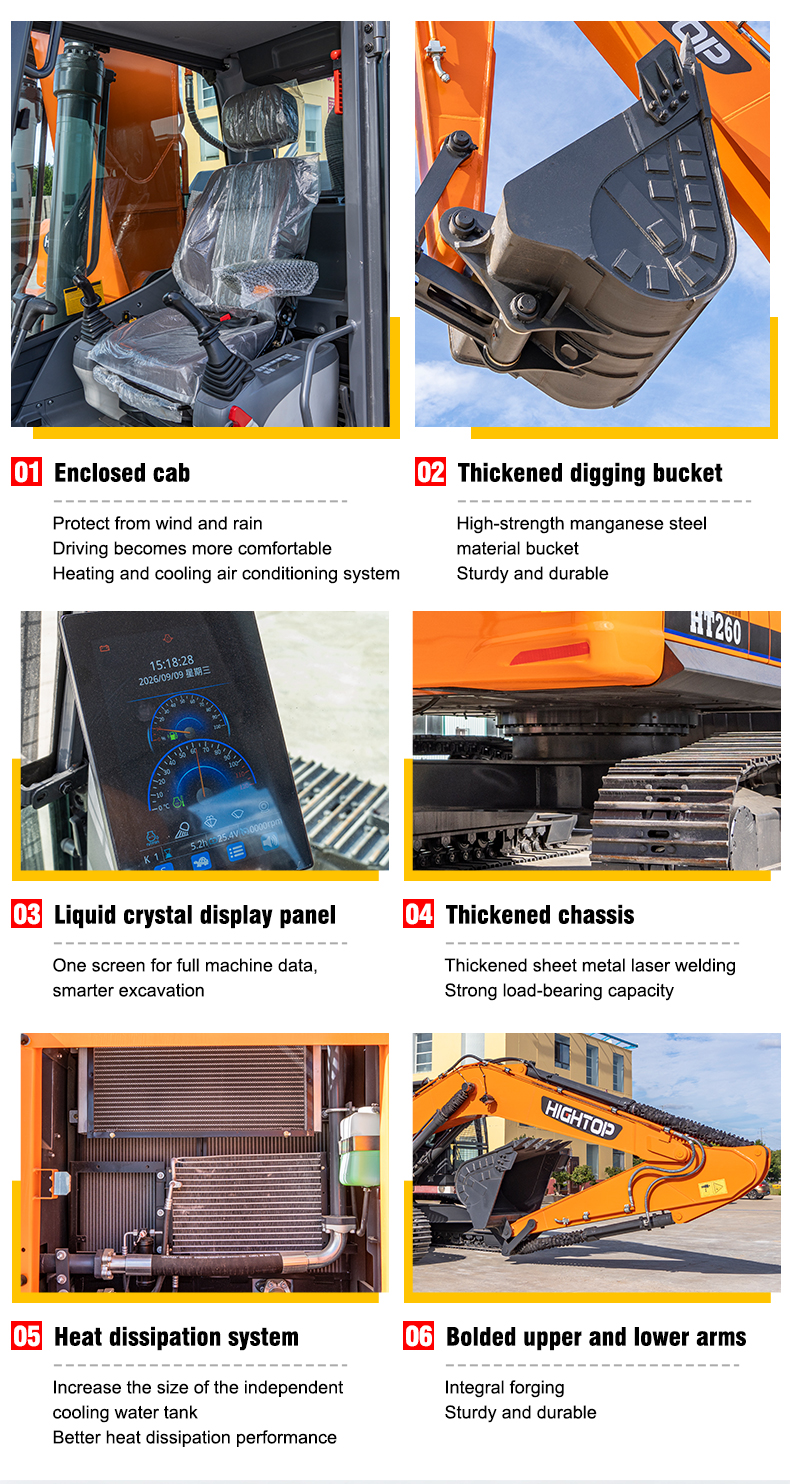

The HT260 is a 25.6-ton fully hydraulic crawler excavator built for demanding earthmoving, infrastructure, and mining applications. Equipped with a 1.2 m3 standard bucket, a stable hydraulic system, and a sturdy body, it delivers reliable performance in tough working conditions. A comfortable operator cabin and a range of optional attachments further enhance efficiency and durability.
|

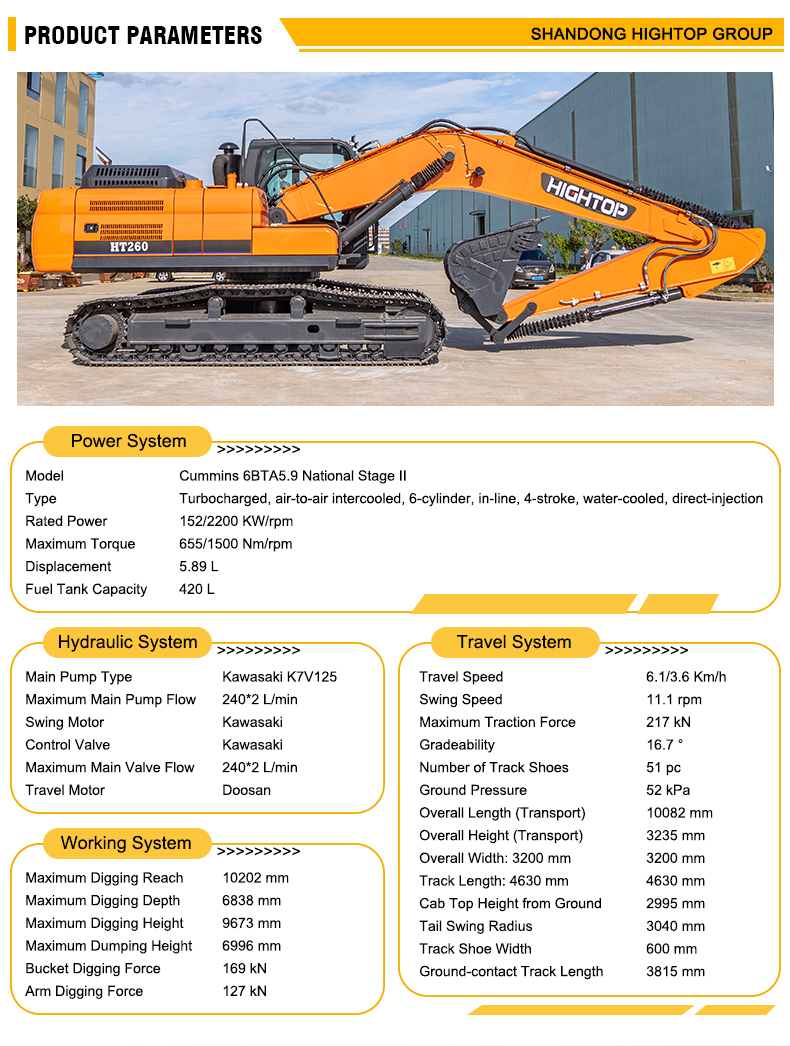

Model |
Cummins 6BTA5.9 National Stage II |
|
Type |
Turbocharged alr-to-alr ihtercooled,6 ne, 4-stroke, water-cooled, direct-injection |
|
Rated Power |
152/2200 KW/rpm |
|
Maximum Torque |
655/1500 Nm/rpm |
|
Displacement |
5.89 L |
|
Fuel Tank Capacity |
420 L |
|
Main Pump Type |
Kawasaki K7V125 |
|
Maximum Main Pump Flow |
240*2 L/min |
|
Swing Motor |
Kawasaki |
|
Control Valve |
Kawasaki |
|
Maximum Main Valve Flow |
240*2 L/min |
|
Travel Motor |
Doosan |
|
Maximum Digging Reach |
10202 mm |
|
Maximum Digging Depth |
6838 mm |
|
Maximum Digging Height |
9673 mm |
|
Maximum Dumping Height |
6996 mm |
|
Bucket Digging Force |
169 kN |
|
Arm Digging Force |
127 kN |
|
Travel Speed |
6.1/3.6 Km/h |
|
Swing Speed |
11.1 rpm |
|
Maximum Traction Force |
217 kN |
|
Gradeability |
16.7° |
|
Number of Track Shoes |
51 pc |
|
Ground Pressure |
52 kPa |
|
Overall Length (Transport) |
10082 mm |
|
Overall Height (Transport) |
3235 mm |
|
Overall Width |
3200mm |
|
Track Length |
4630 mm |
|
Cab Top Height from Ground |
2995 mm |
|
Tail Swing Radius |
3040mm |
|
Track Shoe Width |
600mm |
|
Ground-contact Track Length |
3815mm |
