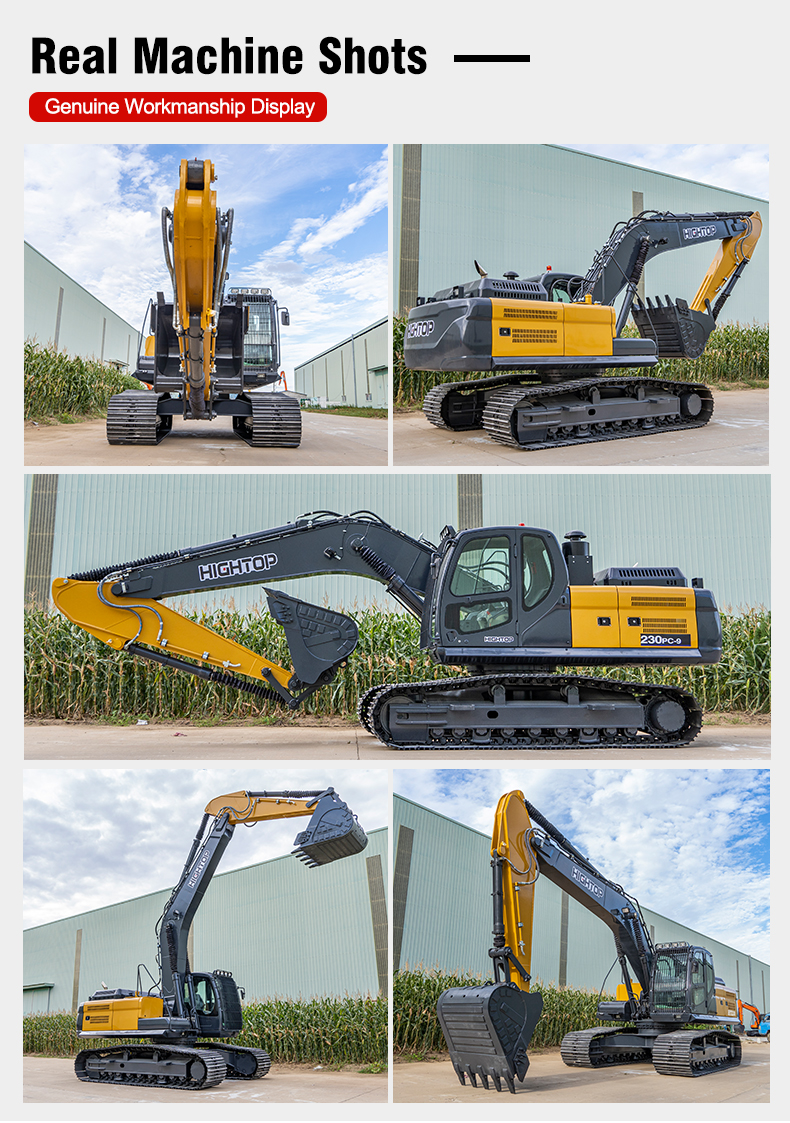

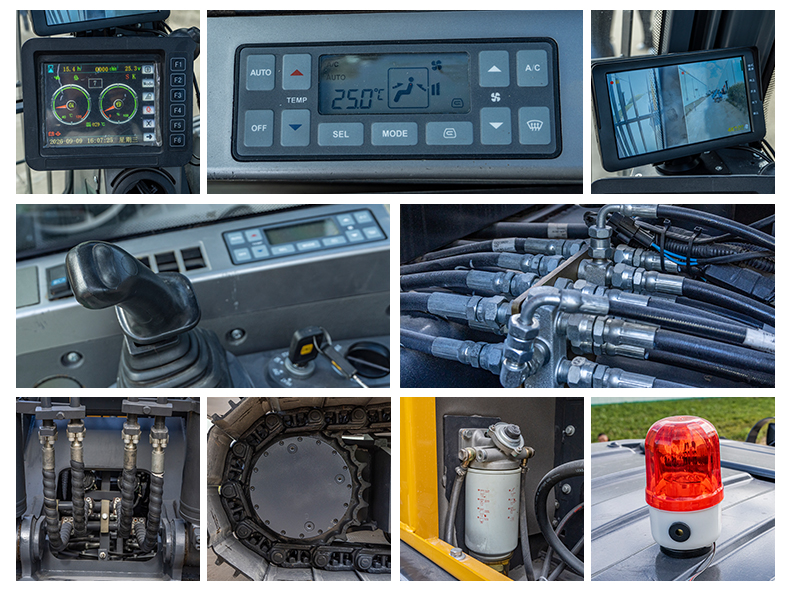

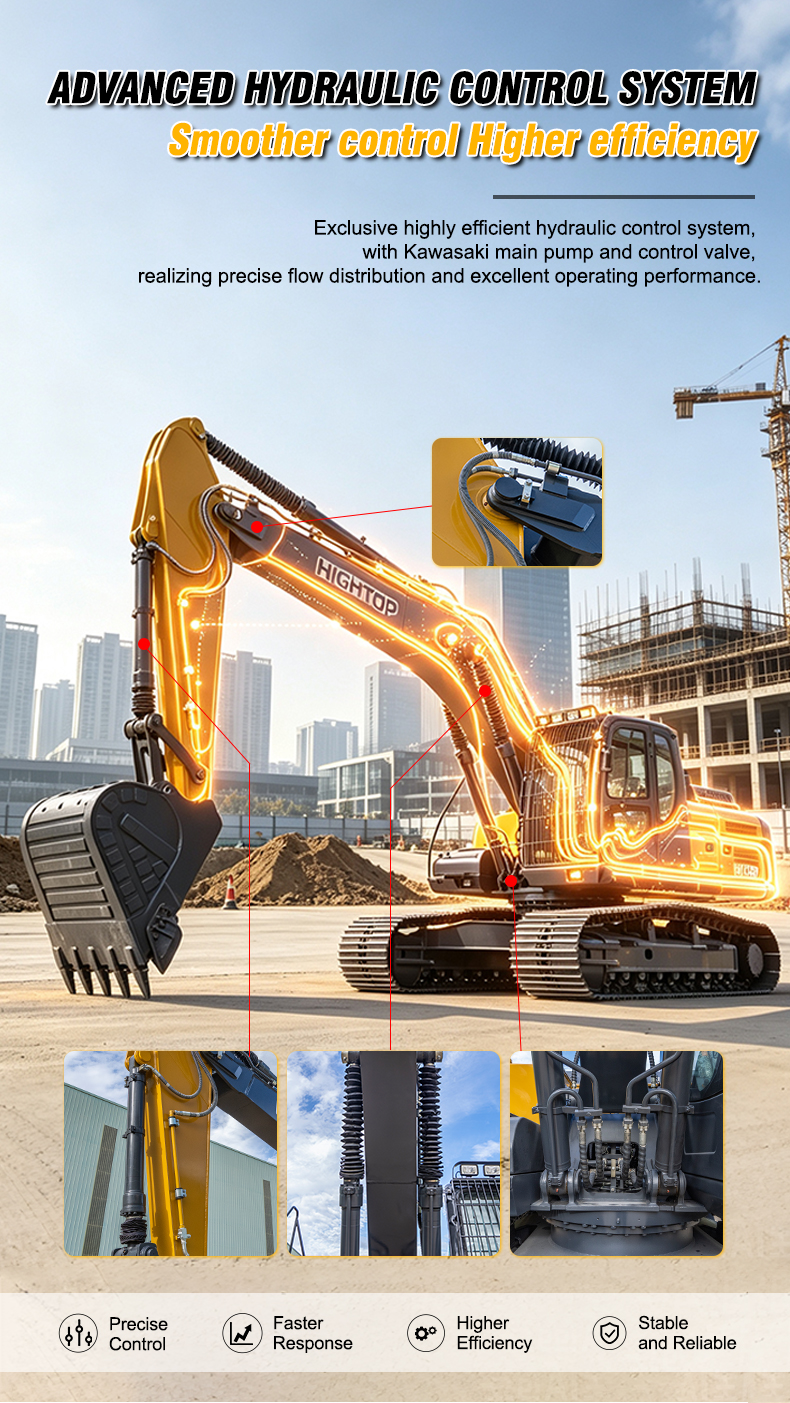

The HT230 is a 23-ton class fully hydraulic crawler excavator engineered for demanding job sites. Powered by a 140 kW engine and fitted with a standard 1.0 m3 bucket, it combines reliable hydraulic components, reinforced working structures, and an intelligent monitoring system for consistent, dependable performance.

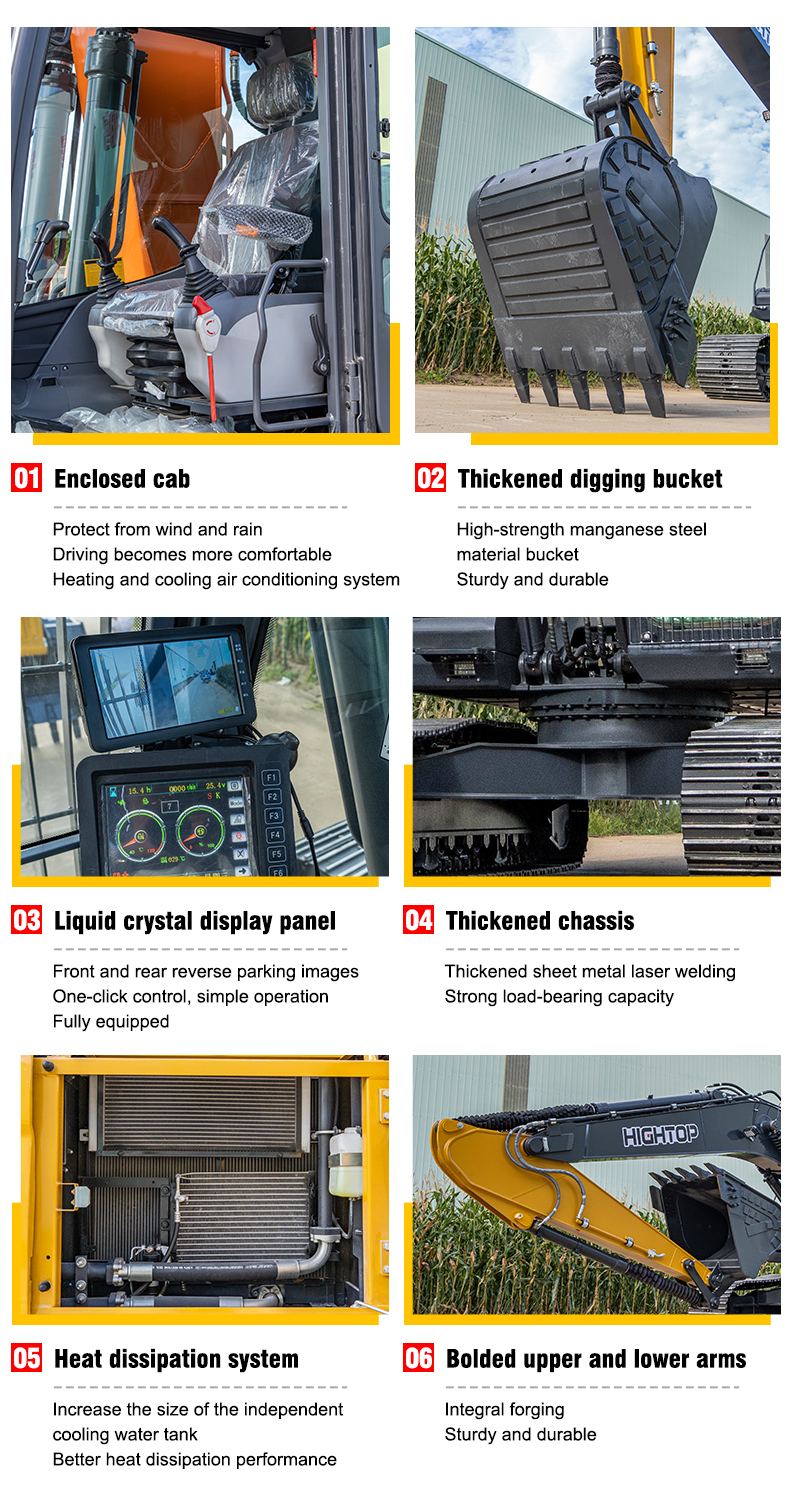

With a comfortable operator cabin and optional attachments including a breaker and grapple, the HT230 delivers steady results across earthmoving, municipal works, road construction, and foundation projects.
|

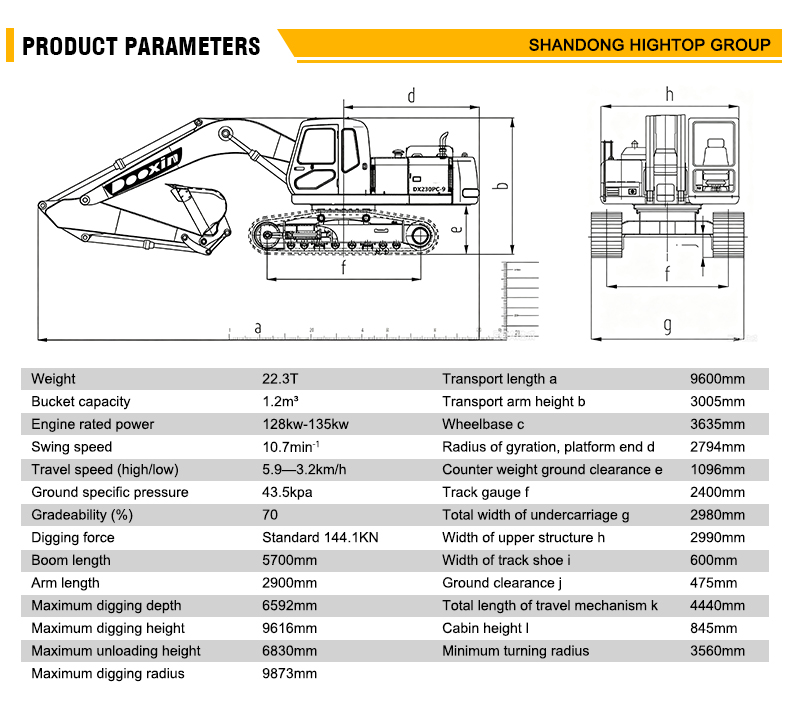

Weight |
22.3T |
|
Transport length a |
9600mm |
|
Bucket capacity |
1.2m2 |
|
Transport arm height b |
3005mm |
|
Engine rated power |
128kw-135kw |
|
Wheelbase c |
3635 mm |
|
Swing speed |
10.7 min?1 |
|
Radius of gyration, platform end d |
2794mm |
|
Travelspeed(high/low) |
43.5kpa |
|
Track gauge f |
2400mm |
|
Gradeability（%） |
70 |
|
Totalwidth of undercarriage g |
2980mm |
|
Digging force |
Standard 144.1KN |
|
Width of upper structure h |
2990mm |
|
Boom length |
5700mm |
|
Width oftrack shoe i |
600mm |
|
Arm length |
2900mm |
|
Ground clearance j |
600mm |
|
Arm length |
2900mm |
|
Ground clearance j |
475mm |
|

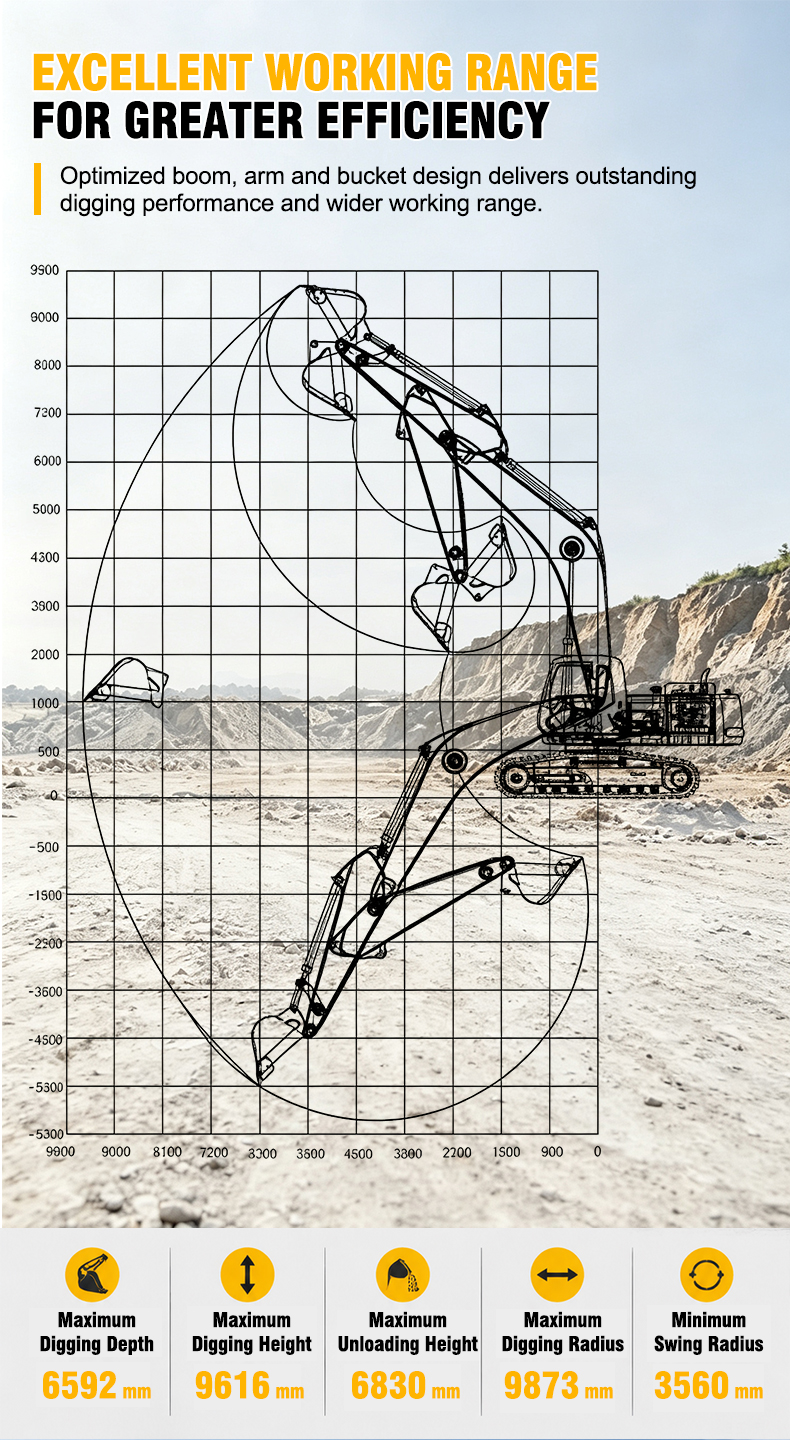

Maximum digging depth |
6592mm |
|
Total length of travel mechanism k |
4440mm |
|
Maximum digging height |
9616mm |
|
Cabin height I |
845mm |
|
Maximum unloading height |
6830mm |
|
Minimum tuming radius |
3560mm |
|
Maximum digging radius |
9873mm |
