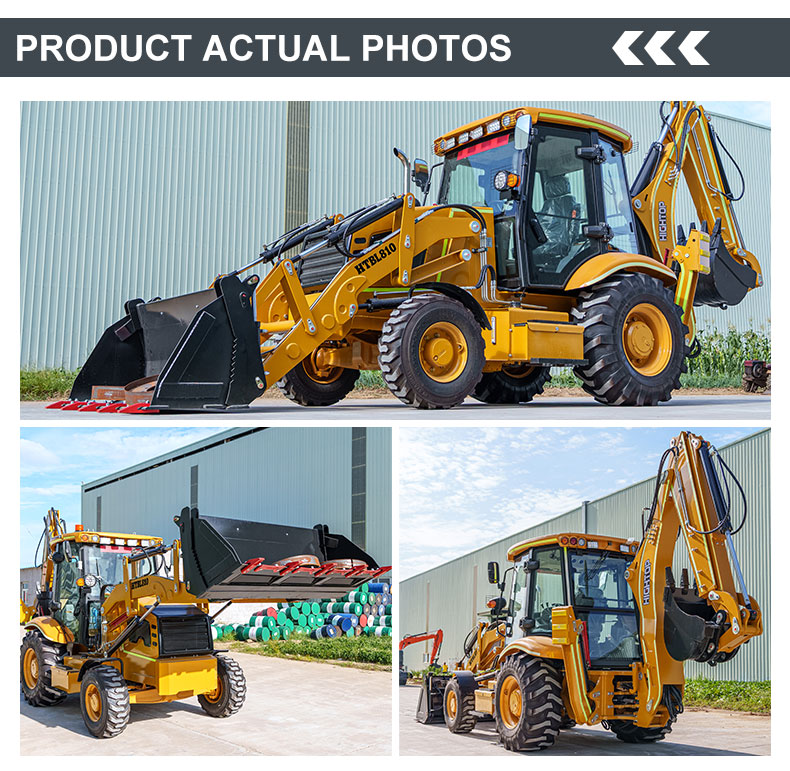

The HTBL810 wheeled loader is a medium-sized articulated wheeled loader with a rated load capacity of 1000 kg. It is equipped with powerful diesel power and a fully hydraulic operating system. The overall structure is sturdy, the articulated chassis delivers flexible steering, and climbing performance is excellent.

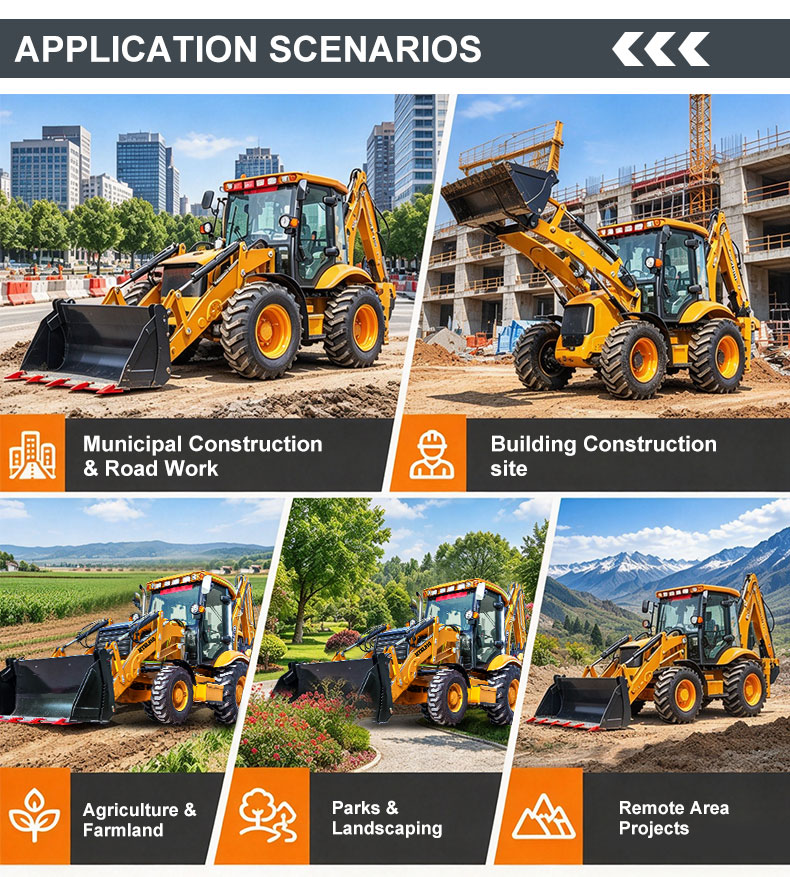

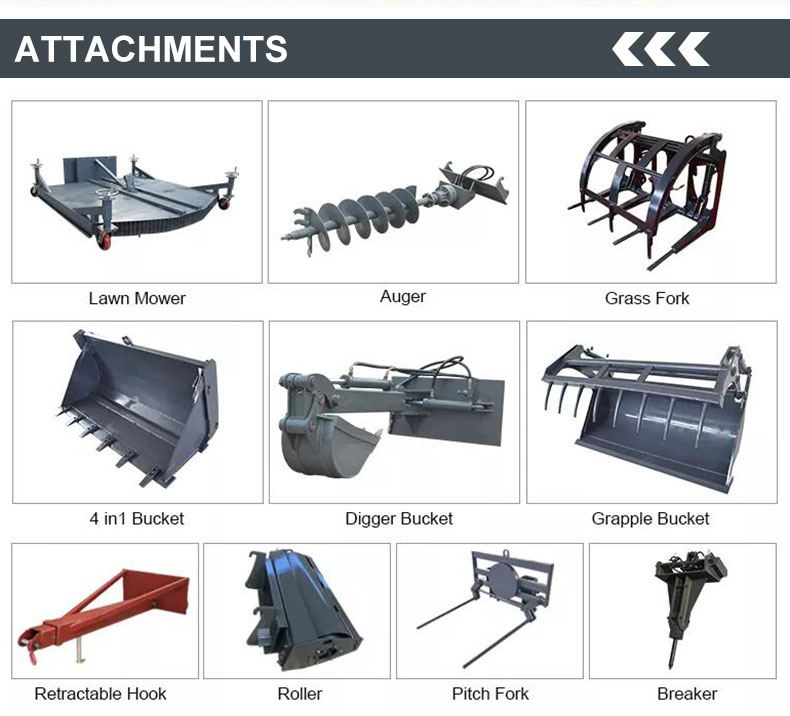

This machine comes standard with a quick-change device, enabling rapid replacement of various attachments such as buckets, timber forks, sweepers, and snow pushers. It is widely applicable in scenarios including farms, construction sites, municipal sanitation, and sand and gravel yards. The entire machine has passed CE certification, is comfortable to operate, easy to maintain, and offers high operational efficiency — a multi-scenario general-purpose engineering equipment.
|

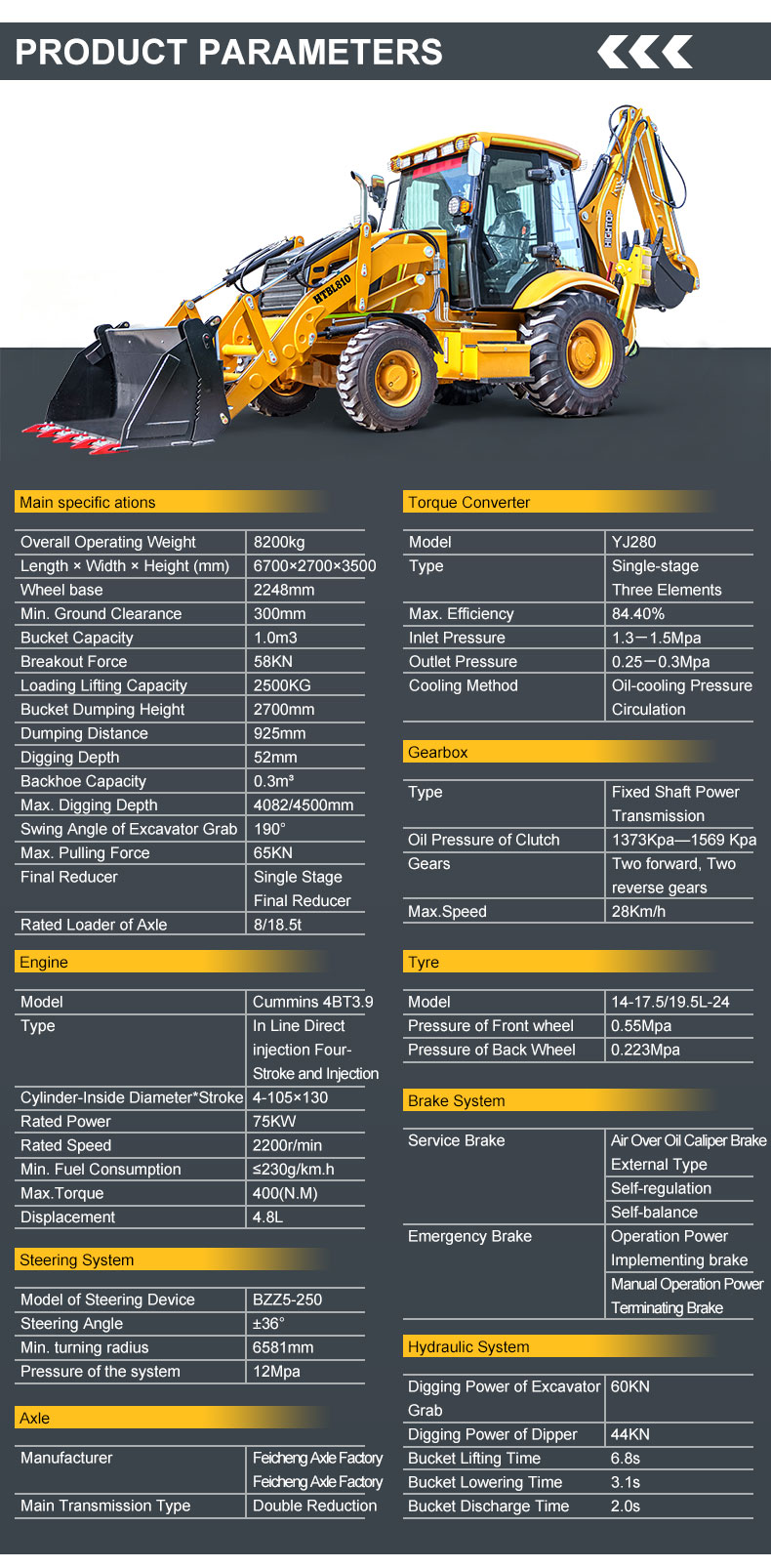

Model |
HTBL810 |
|
Overall Operating Weight |
8200kg |
|
LengthxWidthxHeight(mm) |
6700×2700×3500 |
|
Wheel base |
2248mm |
|
Min.GroundClearance |
300mm |
|
Bucket Capacity |
1.0m3 |
|
Breakout Force |
58KN |
|
Loading Lifting Capacity |
2500kg |
|
Bucket Dumping Height |
2700mm |
|
Dumping Distance |
925mm |
|
Digging Depth |
52mm |
|
Backhoe Capacity |
0.3m3 |
|
Max. Digging Depth |
4082/4500mm |
|
Swing Angle of Excavator Grab |
190° |
|
Max.Pulling Force |
65KN |
|
Final Reducer |
Single Stage Final Reducer |
|
Rated Loaderof Axle |
8/18.5t |
|
Model |
Cummins 4BT3.9 |
|
Type |
In Line Directinjection Four-Stroke and Injection |
|
Cylinder-Inside Diameter*Stroke |
4－105×130 |
|
Rated Power |
75kw |
|
Rated Speed |
2200r/min |
|
Min.Fuel Consumption |
≤230g/km.h |
|
Max.Torque |
400(N.M) |
|
Displacement |
14.8L |
|
Model ofSteering Device |
BZZ5-250 |
|
Steering Angle |
±36° |
|

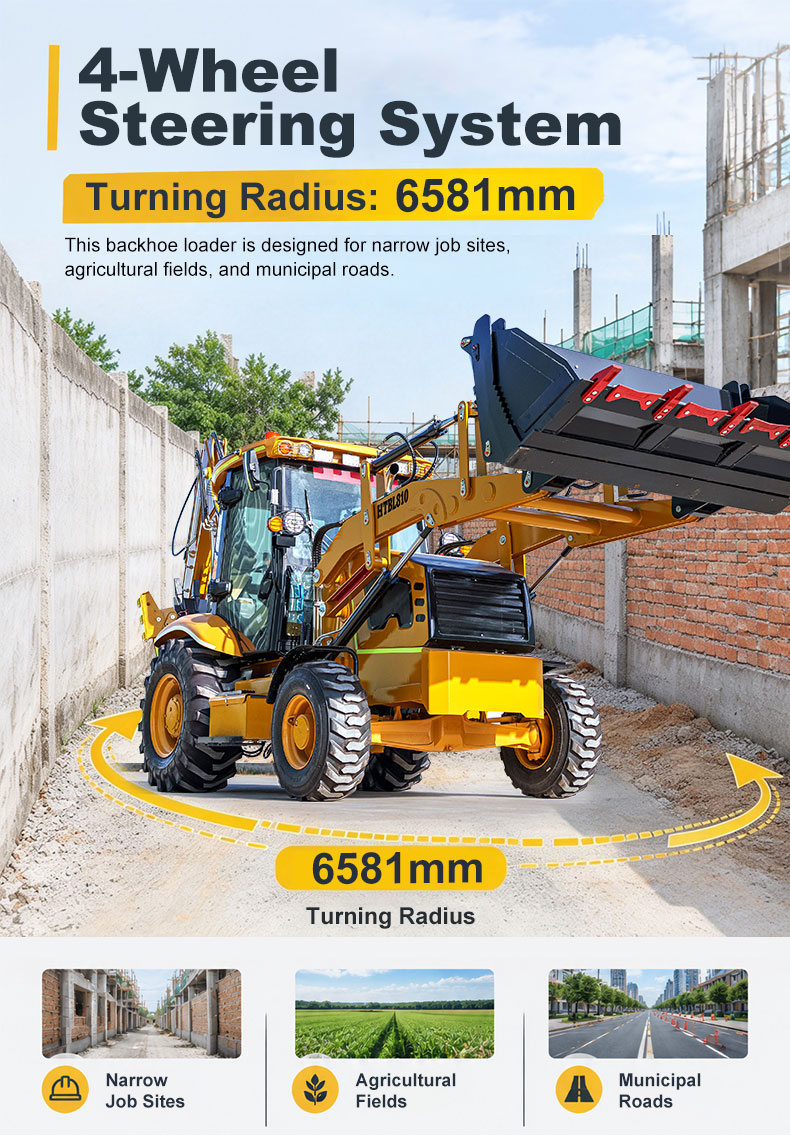

Min.turning radius |
6581mm |
|
Pressure of the system |
12Mpa |
|
Manufacturer |
FeichengAxdeFactory |
|
MainTransmission Type |
Double Reduction |
|
Model |
YJ280 |
|
Type |
Single-stage Three Elements |
|
Max.Efficiency |
84.40% |
|
Inlet Pressure |
1.3-1.5Mpa |
|
Outlet Pressure |
0.25-0.3Mpa |
|
Cooling Method |
Oil-cooling Pressure Circulation |
|
Type |
Fixed ShaftPower Transmission |
|
Oil Pressure of Clutch |
1373Kpa-1569 Kpa |
|
Gears |
Twoforward,Two reverse gears |
|
Max.Speed |
28Km/h |
|
Model |
14-17.5/19.5L-24 |
|
Pressure ofFrontwheel |
0.55Mpa |
|
Pressure of Back Wheel |
0.223Mpa |
|
Service Brake |
AirOverOilCaliperBrake ExternalType |
|
Emergency Brake |
Operation Power Implementing Brake; Manual Operation Power Terminating Brake |
|
Digging Power of Excavator Grab |
60 KN |
|
Digging Power of Dipper |
44 KN |
|
Bucket Lifting Time |
6.8 s |
|
Bucket Lowering Time |
3.1 s |
|
Bucket Discharge Time |
2.0 s |
